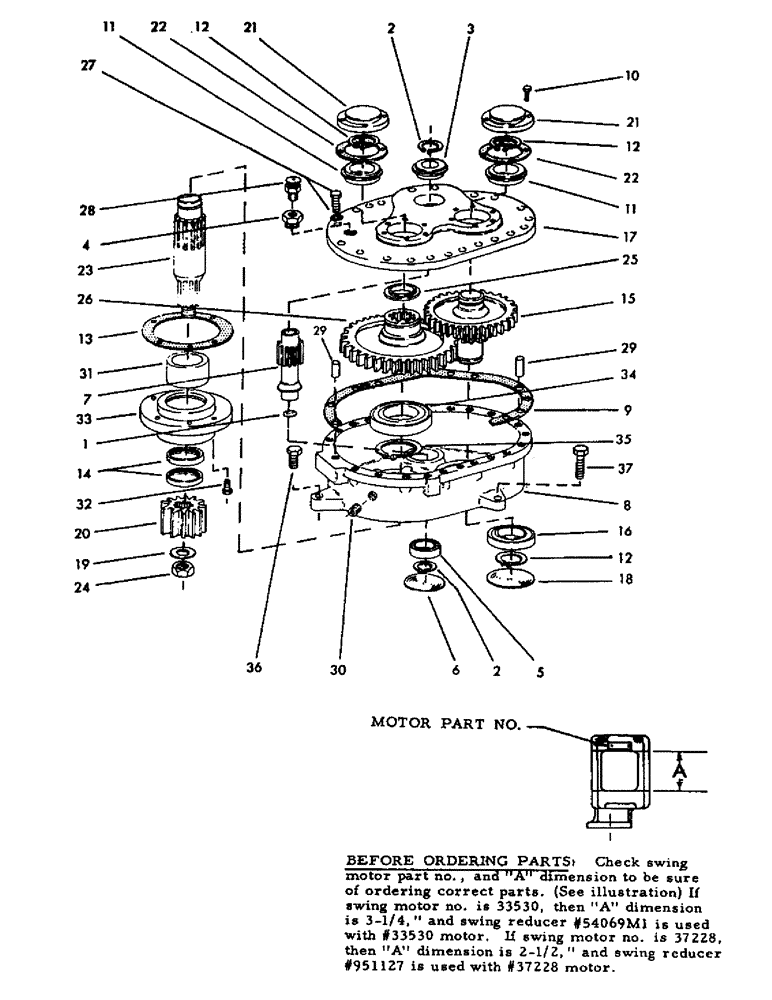

Запчасти Case 30YM (048) - SWING REDUCER, RATIO 24. 20:1 (07) - HYDRAULIC SYSTEM

*951127M2

REDUCER, gear (Consists of items 1-36)

1шт.

1

*81286

PLUG, expansion

1шт.

2

62725

SCREW

RING, retaining

2шт.

3

64312

BALL BEARING

BEARING, ball

1шт.

4

7780

REDUCER, pipe plug

1шт.

5

64313

BEARING, ball

1шт.

6

64328

PLUG, expansion

1шт.

7

37176

PINION & SHAFT, input

1шт.

8

55373M2

CASE, gear

1шт.

9

33483M1

GASKET, cover

1шт.

10

16475

PLATE

CPSW, 5/16" x 1" NC

12шт.

11

64314

BEARING, ball

2шт.

12

62721

RING, retaining

3шт.

13

202561

GASKET

1шт.

14

206136

SEAL, oil

2шт.

15

55114

BOLT,Hex, M12 x 75mm, Cl 8.8

GEAR, cluster intermediate

1шт.

16

64316

SCREW

BEARING, ball

1шт.

17

*37588M1

COVER, gear case

1шт.

18

64317

BATTERY

PLUG, expansion

1шт.

19

72920

SPACER, bottom

1шт.

20

37209

GASKET

PINION, output

1шт.

21

402194

CAP, bottom

2шт.

22

103261

GASKET, bearing cup

2шт.

23

37177

GEAR

SHAFT, output

1шт.

24

64448

NUT, self-locking

1шт.

25

206476

SPACER, Serial Range: bearing-gear

1шт.

26

55116

SCREW

GEAR, drive shaft

1шт.

27

73499

SPRING

CPSW, 3/8" x 1-1/4" NC

23шт.

28

17478

VENT, breather

1шт.

29

64319

DOWEL

2шт.

30

7873

PLUG, pipe 3/8"

3шт.

31

72921

BUSHING

1шт.

32

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

CPSW, 1/2" x 3/4" NC

6шт.

33

55134

SCREW

SUPPORT, reducer (Replacement with item 31 recommended)

1шт.

34

64321

GUIDE

BEARING, ball

1шт.

35

15409

RING, retaining

1шт.

36

2581

CLAMP

CPSW, 7/8" x 2" NC Gr 5

1шт.

37

2596

BUSHING

CPSW, 7/8" x 5-1/4" NC Gr 5

2шт.
