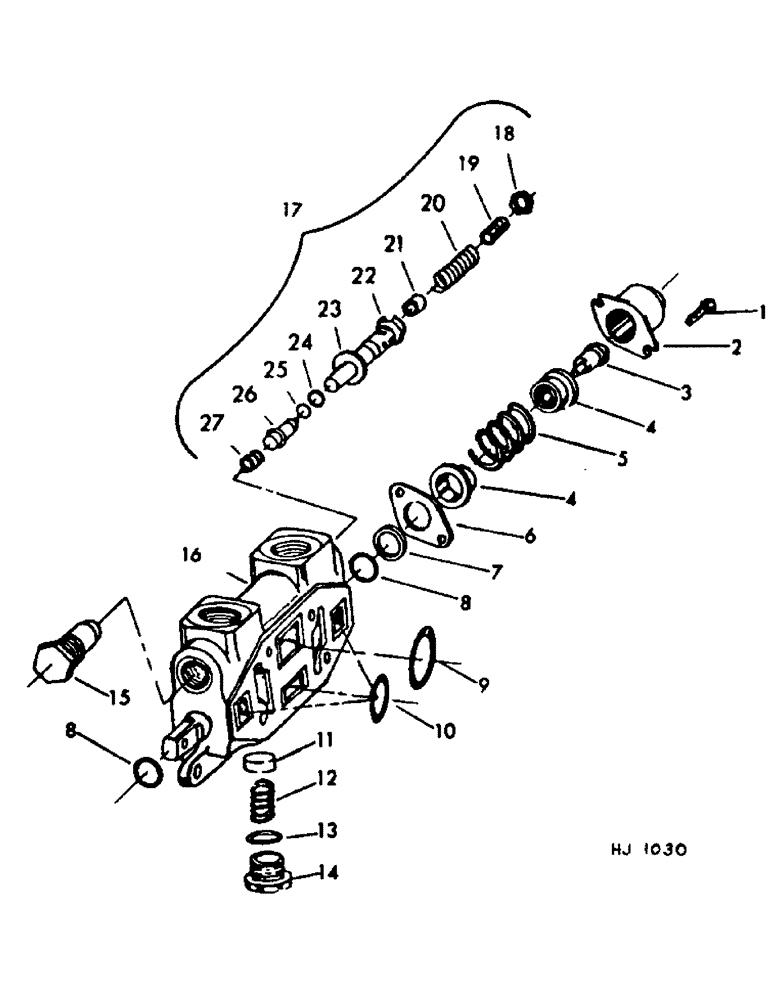

Запчасти Case 30YM (043) - WORKING SECTION, PART NO. 201993 (07) - HYDRAULIC SYSTEM

1

14728

HOSE,Fil Hd, 3/4" L

SCREW, fillister head

2шт.

2

16140

CAP, valve

1шт.

3

16152

PLATE

BOLT, stripper

1шт.

4

BER16150

BEARING

GUIDE, spring

2шт.

5

16151M1

SPRING

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

6

16149

SUPPORT

PLATE, retaining

1шт.

7

16148

BASE

RING, back up

1шт.

8

60098

SEAL

RING, quad seal

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

9

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING, 1-35/64 ID x 1-3/4 OD

1шт.

10

5718

"O" RING, 1-19/64 ID x 1-1/2 OD

3шт.

11

16141

POPPET, check

1шт.

12

16143

GUSSET

SPRING

1шт.

13

5711

PISTON

"O" RING, 55/64 ID x 1-1/16 OD

1шт.

14

16142

CAP, check valve

1шт.

15

201994

VALVE, anti cavatation

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

17

201995

VALVE, relief (Consists of items 18 thru 27)

1шт.

18

17689

BRACKET

NUT, lock tru seal

1шт.

19

17688

SCREW, set

1шт.

20

63540

SPRING

1шт.

21

17687

BRACKET

SEAT, floating

1шт.

22

17686

CARTRIDGE, valve

1шт.

23

17692

LARGE PLATE

GASKET, lead & copper

1шт.

24

63539

BATTERY

"O" RING

1шт.

25

63537

"O" RING

1шт.

26

17690

POPPET

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

27

17691

SPRING, check valve

1шт.
