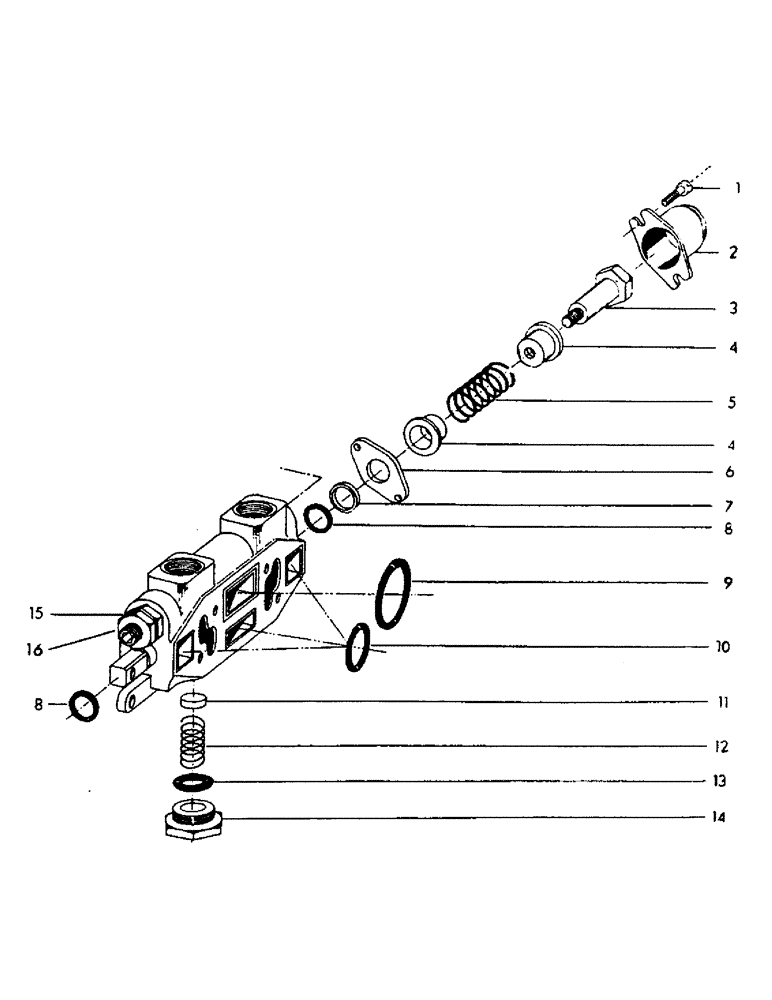

Запчасти Case 30YM (042) - WORKING SECTION, PART NO. 201990 (07) - HYDRAULIC SYSTEM

1

14728

HOSE,Fil Hd, 3/4" L

SCREW, fillister head - 1/4" x 3/4" NC

2шт.

2

16140

CAP, valve

1шт.

3

16152

PLATE

BOLT, stripper

1шт.

4

BER16150

BEARING

GUIDE, spring

2шт.

5

*16151M1

SPRING

1шт.

6

16149

SUPPORT

PLATE, retaining

1шт.

7

16148

BASE

RING, back up

1шт.

8

*60098

RING, quad seal

2шт.

9

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1.549" ID x 1.750" OD

1шт.

10

5718

"O" RING - 1.299" ID x 1.500" OD

3шт.

11

16141

POPPET, check

1шт.

12

16143

GUSSET

SPRING

1шт.

13

5711

PISTON

"O" RING - .862" ID x 1.062" OD

1шт.

14

16142

CAP, check valve

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.
