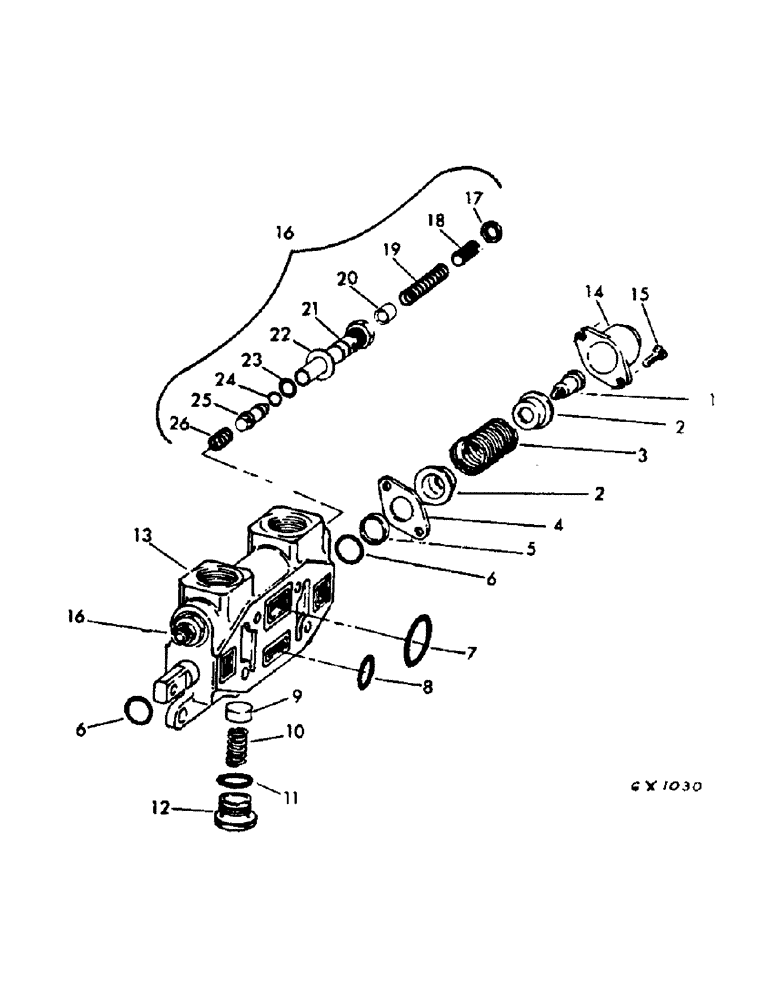

Запчасти Case 30YM (040) - WORKING SECTION, PART NO. 202948 (07) - HYDRAULIC SYSTEM

1

16152

PLATE

BOLT, hex head stripper

1шт.

2

BER16150

BEARING

GUIDE, spring

2шт.

3

16151M1

SPRING

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

4

16149

SUPPORT

PLATE, retaining

1шт.

5

16148

BASE

RING, back up

1шт.

6

60098

SEAL

RING, quad seal

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

7

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING, 1-35/64 ID x 1-3/4 OD

1шт.

8

5718

"O" RING, 1-19/64 ID x 1-1/2 OD

1шт.

9

16141

POPPET, check

1шт.

10

16143

GUSSET

SPRING

1шт.

11

5711

PISTON

"O" RING, 55/64 ID x 1-1/16 OD

1шт.

12

16142

CAP, check valve

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING, valve

1шт.

14

AUS16640

CAP

valve

1шт.

15

14728

HOSE,Fil Hd, 3/4" L

SCREW, fillister head

2шт.

16

208060

HYD CONNECTOR

VALVE, relief - 2500 PSI (Consists of items 17-26)

2шт.

17

17689

BRACKET

LOCKNUT, tee seal, 1/2-20 NF

2шт.

18

17688

SCREW, set 1/2-20 NF

2шт.

19

63540

SPRING, R/V

2шт.

20

17687

BRACKET

SEAT, floating

2шт.

21

17686

CARTRIDGE

2шт.

22

17692

LARGE PLATE

GASKET, lead & copper

2шт.

23

63539

BATTERY

"O" RING

2шт.

24

63537

"O" RING

2шт.

25

17690

POPPET

2шт.

26

17691

SPRING, check valve

2шт.
