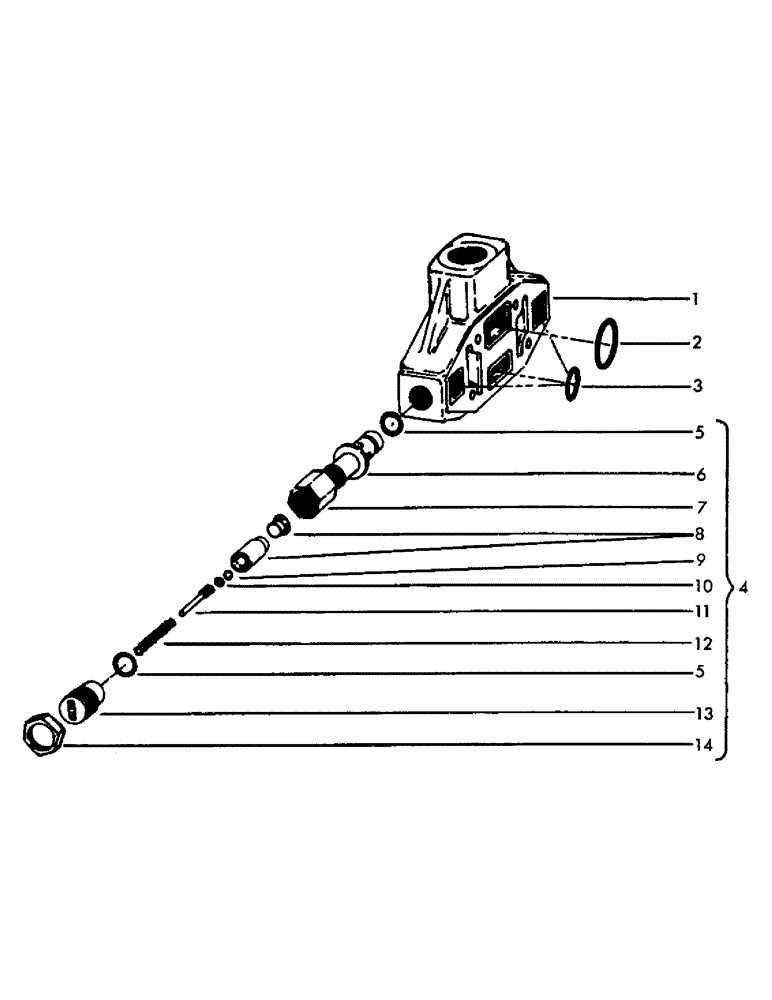

Запчасти Case 30YM (039) - MID SECTION, PART NO. 201991M1 (07) - HYDRAULIC SYSTEM

1

201992

HOUSING

1шт.

2

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING - 1-35/64" ID x 1-3/4" OD

1шт.

3

5718

"O" RING - 1-19/64" ID x 1-1/2" OD

3шт.

4

61092M2

VALVE, relief (Consists of items 1 thru 11, 15)

1шт.

5

64209

"O" RING

2шт.

6

60211

GASKET

1шт.

7

60208

CARTRIDGE, shell

1шт.

8

74805

SEAT, snubber assembly

1шт.

9

5604

O-RING

"O" RING - 19/64" ID x 7/16" OD

1шт.

10

7163

RING, back up

1шт.

11

16727

ELECTRICAL WIRE

PLUNGER

1шт.

12

74807

NUT

SPRING

1шт.

13

61226

KEY

SCREW, adjustable

1шт.

14

61227

NUT, locking

1шт.
