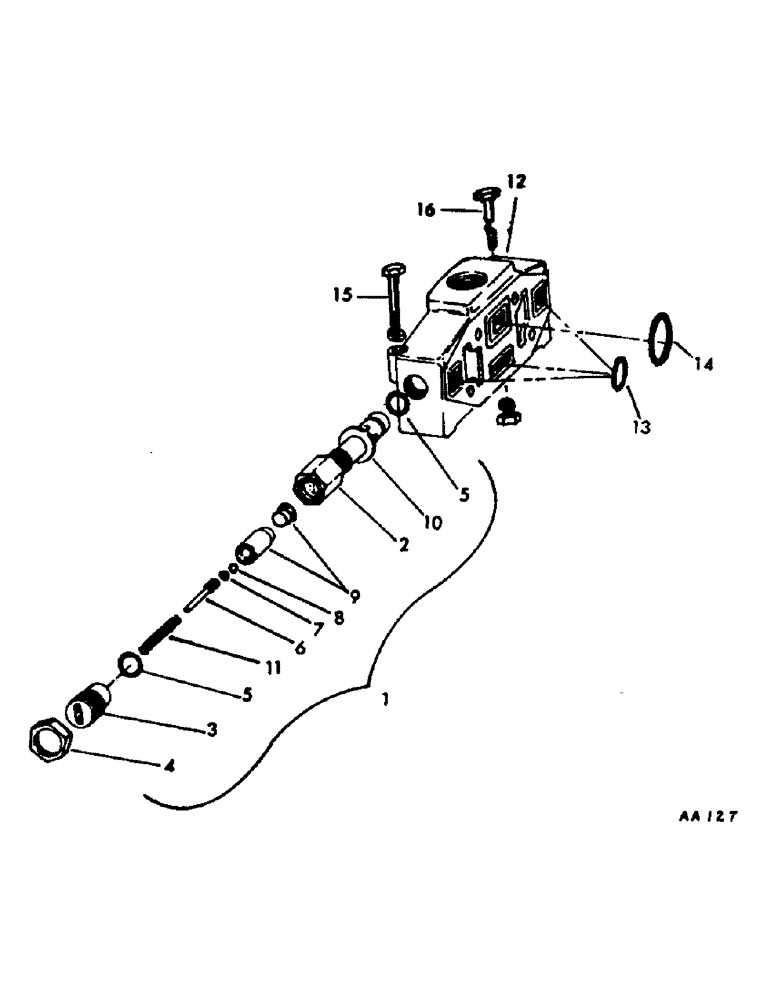

Запчасти Case 30YM (038) - INLET SECTION, PART NO. 202283M1 (07) - HYDRAULIC SYSTEM

1

61092M2

VALVE, relief (Consists of items 1 thru 11)

1шт.

2

60208

CARTRIDGE, shell

1шт.

3

61226

KEY

SCREW, adj

1шт.

4

61227

NUT, locking

1шт.

5

64209

"O" RING

2шт.

6

16727

ELECTRICAL WIRE

WIRE PLUNGER, displacement

1шт.

7

7163

RING, back up

1шт.

8

NLS

NO LONGER SERVICED

19/64" ID x 7/16" OD

1шт.

9

74805

SEAT, floating & snubber assy

1шт.

10

60211

GASKET

1шт.

11

74807

NUT

SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING, inlet

1шт.

13

5718

"O" RING, 1-19/64" ID x 1-1/2" OD

3шт.

14

5722

BOLT,3/4" x 3.25", Gr 5

"O" RING, 1-35/64" ID x 1-3/4" OD

1шт.

15

2415

PLATE

CPSW, valve hold-down, 3/8" x 4" NC Gr 5

1шт.

4397

LOCKWASHER - 3/8"

1шт.

16

2413

LAMP

SPARE PART CPSW, valve hold-down 3/8" x 4" NC gr 5

1шт.

4397

LOCKWASHER 3/8"

1шт.

4222

NUT - 3/8" NC

1шт.
