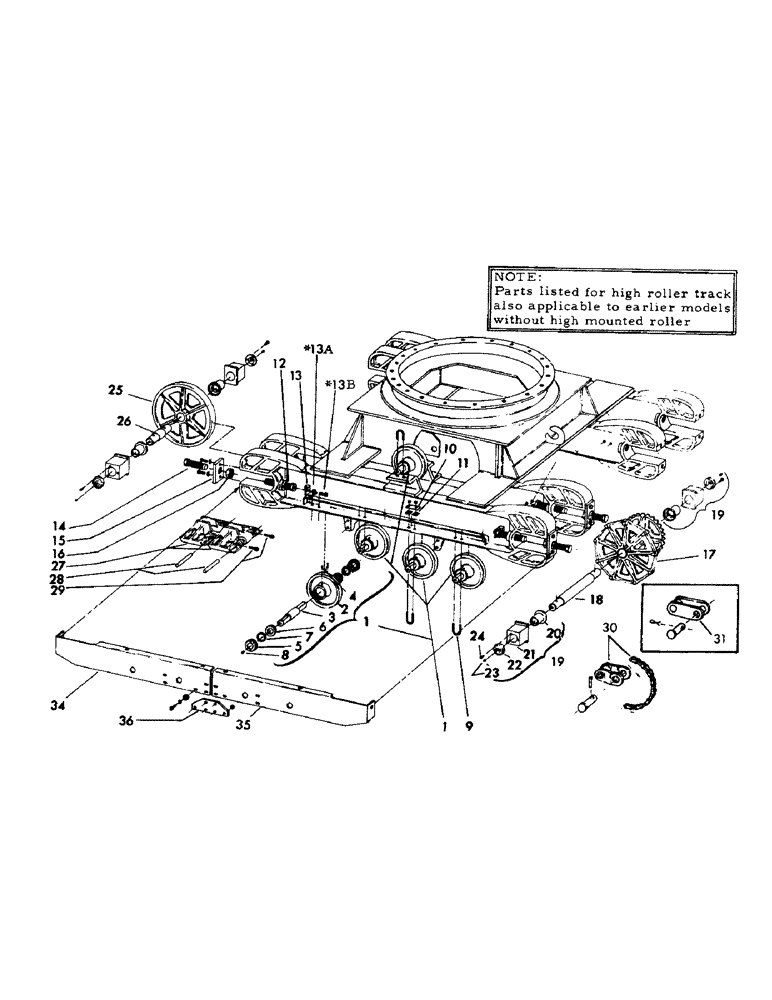

Запчасти Case 30YM (058) - CRAWLER STRUCTURALS, GROUP I CRAWLER UNDERCARRIAGE - 4 ROLLER FOR 28 PAD TRACK (05) - UPPERSTRUCTURE CHASSIS

1

ROLLER, track - (Used on crawler frames with S/N 1 thru 1777) - For replacement of complete roller, Order 208692

10шт.

208692

ROLLER, track - (Used on crawler frames with S/N 1778-up)

10шт.

2

201089

HUB, roller (Used on crawler frames with S/N 1 thru 1777)

1шт.

78123

HUB, roller (Used on crawler frames with S/N 1778-up)

1шт.

3

201090

SHAFT, roller (Used on crawler frames with S/N 1 thru 1777)

1шт.

78122

SHAFT, roller (Used on crawler frames with S/N 1778-up)

1шт.

4

201095

BELLEVILLE SPRING

SCREW, set - metric thread - (1 used with roller on crawler frame S/N 1 thru 1777, and 2 used with roller on crawler frame with S/N 1778-up)

1шт.

5

201094

COLLAR, bearing takeup (Used on crawler frames with S/N 1 thru 1777)

2шт.

78124

RING (Used on crawler frames with S/N 1778-up)

1шт.

6

201091

FLANGE

CUP, bearing (Used on crawler frames with S/N 1 thru 1777)

2шт.

201092

CONE, bearing (Used on crawler frames with S/N 1 thru 1777)

2шт.

78125

BEARING - (Used on crawler frames with S/N 1778 & up)

2шт.

7

201093

PLATE

SEAL, hub - (Used on crawler frames with S/N 1 thru 1777)

2шт.

78126

SEAL - (Used on crawler frames with S/N 1778-up)

2шт.

8

*12031

FITTING, grease - 1/8" NPT (Straight) (Used on crawler frames with serial number 1 thru 1777)

1шт.

78127

FITTING, grease - (Used on crawler frames with serial number 1778-up)

1шт.

9

63417

FRAME

"U" BOLT - 1/2" NC (17086, locknut 1/2" NC) (2 per "U" bolt) (2 per roller)

2шт.

10

201098

PLATE, locking (2 per roller)

2шт.

11

201099

CYLINDER

WASHER, channel (4 per roller)

4шт.

12

201080

SPRING CUP

SCREW, track tension - metric thread (8 per crawler)

8шт.

13

201081

SHIM

BLOCK, tension screw - metric thread (8 per crawler)

8шт.

13a

201083

SHACKLE

LOCKWASHER - for item 13 (8 per crawler)

8шт.

13b

BER201082

SCREW

CPSW - metric thread (For item 13) (8 per crawler)

8шт.

14

201084

BLANK-OFF PLUG

SCREW, bushing carrier lock (Metric thread) (8 per crawler)

8шт.

15

201086

CASTING

PLATE, lock screw carrier (Metric thread) (8 per crawler)

8шт.

2544

SPARE PART

CPSW - 3/4" x 2" NC Gr 5

16шт.

16

201085

CENTRAL RAIL

NUT, lock - metric thread (8 per crawler)

8шт.

17

202335M1

WHEEL, drive with sprocket - Includes item 18 (With mud reliefs) (2 per crawler)

2шт.

18

201070

AXLE, rear (2 per crawler)

2шт.

19

202334

PISTON ROD

CARRIER, axle - (Consists of items 20 thru 24) (2 per axle)

2шт.

20

201075

BUSHING, axle (1 per carrier)

1шт.

21

201074

BLOCK, carrier (1 per carrier)

1шт.

22

201076

RETAINER, grease (1 per carrier)

1шт.

23

*12031

FITTING, grease - 1/8" NPT (Straight) (2 per carrier)

2шт.

24

7498

SCREW, self tapping - 1/4" x 3/4" NC (6 per carrier)

6шт.

25

NLS

NO LONGER SERVICED

WHEEL, idler - (Includes item 26) (2 per crawler)

2шт.

26

201073

CHAIN

AXLE, idler wheel (2 per crawler)

2шт.

27

201100

BUSHING

SHOE, track - 14" wide (28 per track)

28шт.

202540

SHOE, track - 16" wide (28 per track)

28шт.

201102

SHOE, track - 19" wide (28 per track)

28шт.

53006

SPIDER

SHOE, track - 20" wide (28 per track)

28шт.

28

201101

PIN, shoe for 14" shoe - 1-1/16" x 8.15" long (1 per shoe)

1шт.

202541

PIN, shoe for 16" shoe - 1-1/16" x 8.50" long (1 per shoe)

1шт.

201103

PIN, shoe for 19" shoe - 1-1/16" x 11-13/16" long (1 per shoe)

1шт.

202793

SPARE PART

PIN, shoe for 20" shoe - 1" x 12-1/4" long (1 per shoe)

1шт.

29

201104

PIN, cotter - Used with 201101 shoe pin (2 per pin)

2шт.

4713

FILTER

PIN, cotter - Used with 202541 and 201103 shoe pin (2 per pin)

2шт.

65031M1

PIN, clinch - Used with 202793 shoe pin (1 per pin)

1шт.

30

78500

DRIVE CHAIN (Bulk) - one complete chain consists of 56 offset pitches. (Standard for units with serial number 464-up) (See note) (2 per crawler)

2шт.

31

103152

LINK, master - (For repair of straight roller chain only) (Used on units with serial number 1 thru 463)

1шт.

34

52713

SHIELD, track fits 14" or 19" shoe for left front or right rear - outside (2 per crawler) OPTIONAL EQUIPMENT ( FOR 28 PAD )

2шт.

*53213

SHIELD, track fits 16" or 20" shoe for left front or right rear - outside (2 per crawler) OPTIONAL EQUIPMENT ( FOR 28 PAD )

2шт.

35

52712

BUSHING

SHIELD, track fits 14" or 19" shoe for left rear or right front - outside (2 per crawler) OPTIONAL EQUIPMENT ( FOR 28 PAD )

2шт.

53214

SHIELD, track fits 16" or 20" shoe for left rear or right front - outside (2 per crawler) OPTIONAL EQUIPMENT ( FOR 28 PAD )

2шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC Gr 5 - (Mounts item 36 to 34 and 35) (7 of each per shield) OPTIONAL EQUIPMENT ( FOR 28 PAD TRACK)

7шт.

4399

WASHER

LOCKWASHER - 1/2" OPTIONAL EQUIPMENT ( FOR 28 PAD TRACK)

7шт.

7397

WASHER, flat - 1/2" OPTIONAL EQUIPMENT ( FOR 28 PAD TRACK)

7шт.

36

202282

PLATE, splice (2 per crawler) OPTIONAL EQUIPMENT ( FOR 28 PAD TRACK)

2шт.
