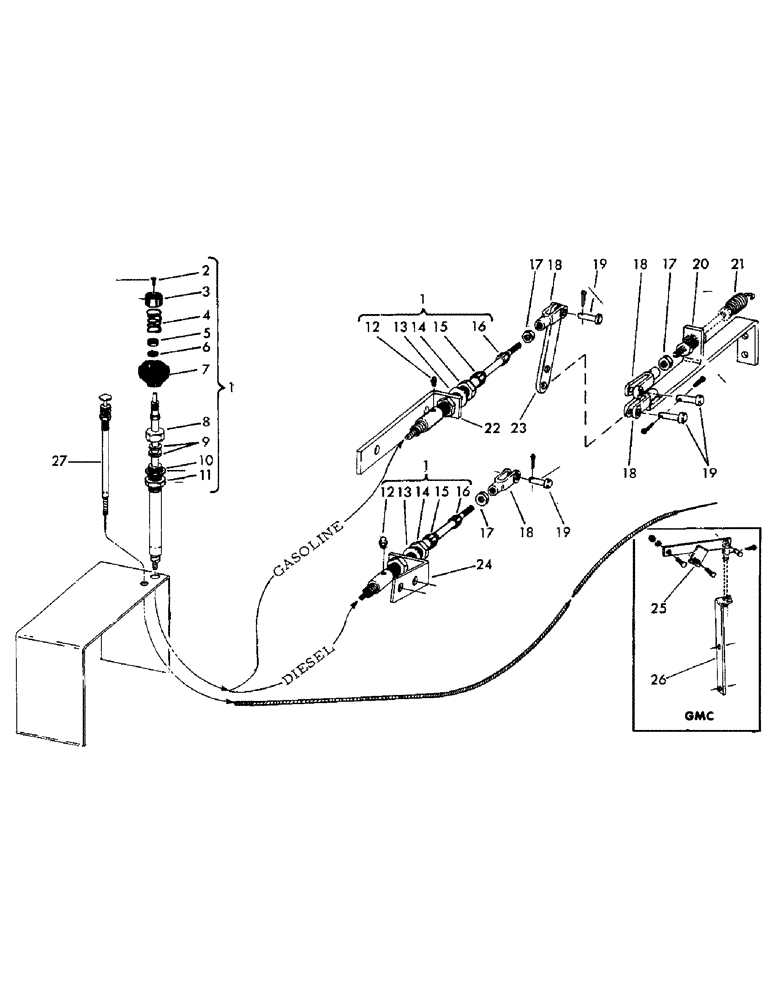

Запчасти Case 30YM (013) - ENGINE CONTROLS, IHC GAS, IHC DIESEL AND GMC DIESEL (01) - ENGINE

1

201619

HANDLE

THROTTLE, complete (Consists of Refs. 2 thru 16)

1шт.

2

63499

CONNECTING LINK

SCREW, button

1шт.

3

63496

BUTTON, release

1шт.

4

63498

SPRING, button

1шт.

5

63500

NUT

1шт.

6

63501

HOOK

WASHER

1шт.

7

63497

KNOB

1шт.

8

63502

NUT, special tube

1шт.

9

63503

WASHER, seal

1шт.

10

63504

WASHER, Shakeproof

1шт.

11

63505

NUT

1шт.

12

63510

JACK

FITTING, grease

1шт.

13

63507

WASHER

1шт.

14

63506

NUT

2шт.

15

63508

PIN

SEAL

1шт.

16

63509

JACK

SEAL

1шт.

17

4260

OIL SEAL

NUT, jam 1/4 NC (IHC Gas and IHC Diesel)

2шт.

17

4260

OIL SEAL

NUT, jam 1/4 NC (GMC Diesel)

1шт.

18

12568

SNAP RING,M210, Int

YOKE (IHC Gas and IHC Diesel)

2шт.

18

12568

SNAP RING,M210, Int

YOKE (GMC Diesel)

1шт.

19

S10714

CLEVIS PIN

PIN, clevis - 1/4 x 3/4 (IHC Gas and IHC Diesel)

3шт.

19

S10714

CLEVIS PIN

PIN, clevis - 1/4 x 3/4 (GMC Diesel)

1шт.

4610

TOY

COTTER PIN - 3/32 x 1/2 (IHC Gas and IHC Diesel)

3шт.

4610

TOY

COTTER PIN - 3/32 x 1/2 (GMC Diesel)

1шт.

20

33334

BRACKET, throttle (Front) (IHC Gas and IHC Diesel)

1шт.

21

SPRING, IHC part (Order from engine manual) (IHC Gas and IHC Diesel)

1шт.

22

201653

BRACKET, throttle (Rear) (IHC Gas)

1шт.

23

63667

LOCK WASHER

LEVER, throttle linkage (IHC Gas and IHC Diesel)

1шт.

24

63583

BRACKET, throttle (IHC Diesel)

1шт.

25

204351

LEVER, throttle linkage (Mounts w/existing hardware in engine block) (GMC Diesel)

1шт.

26

204971

BRACKET, throttle (Mounts w/existing hardware in engine block) (GMC Diesel)

1шт.

27

201620M1

CONTROL, (Choke for IHC UC 263 gas engine, and shutoff on diesel engines - 1 for IHC UD 282 and 2 for GMC 3-53 engine) (IHC Gas and IHC Diesel)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

27

201620M1

CONTROL, (Choke for IHC UC 263 gas engine, and shutoff on diesel engines - 1 for IHC UD 282 and 2 for GMC 3-53 engine) (GMC Diesel)

2шт.

Change of part number, quantity, or description, at the last revision

1шт.
