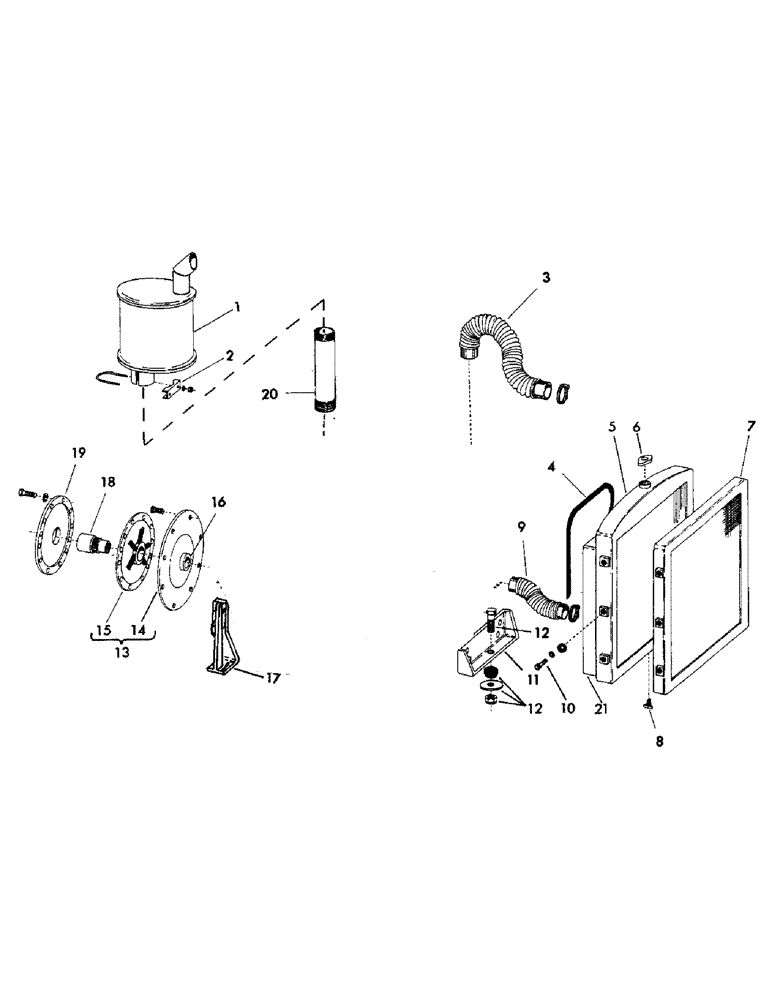

Запчасти Case 30YM (011) - DIESEL ENGINE #55949, (DROTT #55949) AND MOUNTING PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
203367M1
MUFFLER
1шт.
2
68529
CLAMP, muffler
1шт.
3
71508
SHAFT
HOSE, radiator - Used on units with serial number 1 thru 459
1шт.
63572
SHIELD
HOSE, radiator - Used on units with serial number 460-up
1шт.
10878
CLAMP, hose
2шт.
4
27955
CABLE
BELT, alternator
2шт.
5
52593
CHAIN
RADIATOR (Includes item 6) used on units with serial number 1 thru 459
1шт.
56172
RADIATOR - (Includes item 6) Used on units with serial number 460-up
1шт.
6
73374
CAP, radiator
1шт.
7
33197
COOLER, oil
1шт.
8
49610
DRAIN, radiator
1шт.
*9
81005
HOSE, radiator - Used on units with serial number 1 thru 459
1шт.
71943
COVER
HOSE, radiator - Used on units with serial number 460-up
1шт.
10878
CLAMP, hose
2шт.
10
2375
CPSW - 5/16" x 3/4" NC Gr 5
12шт.
62364
WASHER, rubber
12шт.
7343
SOLENOID VALVE
LOCKWASHER - 5/16"
12шт.
11
33819
BRACKET, front engine mounting
1шт.
2413
LAMP
CPSW - 3/8" x 4" NC Gr 5
2шт.
4397
LOCKWASHER - 3/8"
2шт.
2431
FITTING
CPSW - 7/16" x 1-1/4" NC Gr 5
2шт.
4398
LOCKWASHER - 7/16"
2шт.
12
2511
FLEXIBLE HOSE
CPSW - 5/8" x 3-3/4" NC
1шт.
64712
SNAP RING,#43, Ext
RING, compression
1шт.
49559
WASHER, snubbing
1шт.
17174
LOCKNUT - 5/8" NC
1шт.
13
33200
CLAMP
DAMPENER (Consists of items 14 and 15)
1шт.
14
201639
DAMPER
1шт.
63218
CPSW - 3/8" x 5/8" NC Gr 5
8шт.
15
86628560
SPACER
PILOT
1шт.
16
63071
SPACER
1шт.
17
203096
BRACKET, rear engine mounting
2шт.
2472
CPSW - 1/2" x 2-3/4" NC
8шт.
4399
WASHER
LOCKWASHER - 1/2"
8шт.
18
63201
COUPLING, pump drive
1шт.
19
52615
REAR FENDER
BRACKET, pump mounting
1шт.
2401
LAMP
CPSW - 3/8" x 1" NC Gr 5
12шт.
4397
LOCKWASHER - 3/8"
1шт.
20
203423
PIPE, exhaust
1шт.
*21
38408
ROLLER
SHROUD, radiator - Used on units with serial number 460-up
1шт.
14458
ELEC. TERMINAL PIN,8 - 10
SCREW, machine (Shroud to radiator) - Used on units with serial number 460-up
6шт.
7342
LOCKWASHER - internal tooth
6шт.
Выбрано товаров: 42
