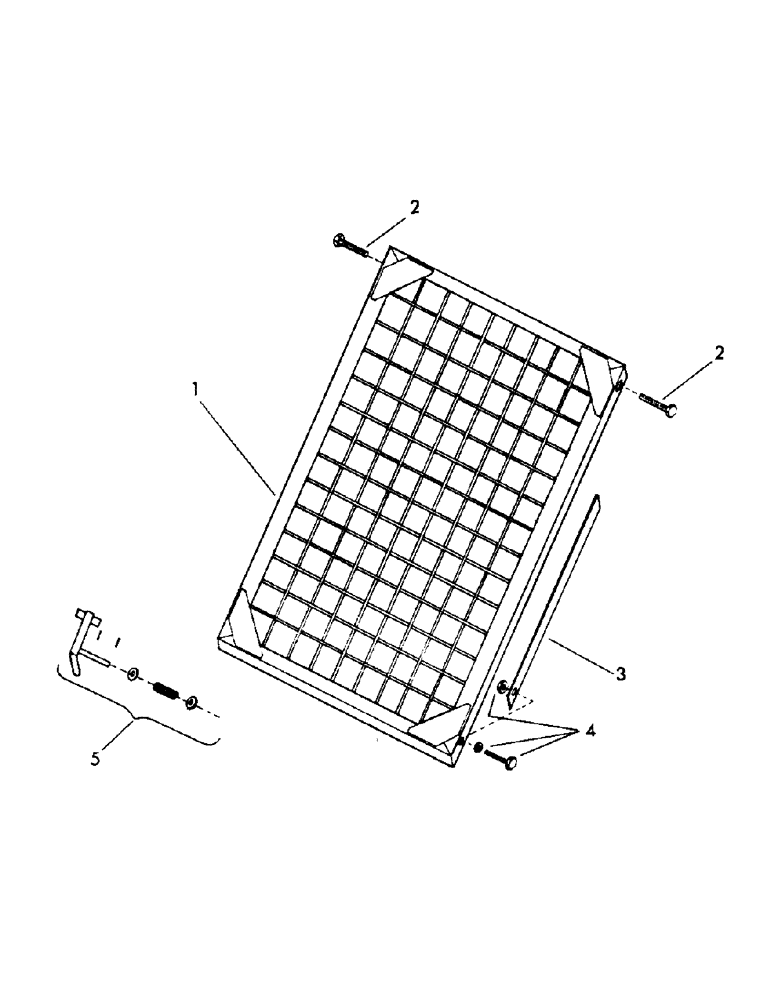

Запчасти Case 30YC (J12) - LOGGER CAB GUARD (05) - UPPERSTRUCTURE CHASSIS

1

59125

GUARD ASSEMBLY - (For front window)

1шт.

2

2549

O-RING

BOLT - 3/4" x 3" NC GR 5

2шт.

3

83720

SUPPORT

1шт.

4

2469

BOLT - 1/2" x 2" NC GR 5

1шт.

7395

WASHER - flat - 1/2"

1шт.

17086

NUT - self locking - 1/2" NC

1шт.

5

212463

RING

HANDLE ASSEMBLY

1шт.

7395

WASHER - flat - 1/2"

2шт.

4627

COTTER PIN

PIN - cotter - 1/8" x 1"

2шт.

78626

SPRING

1шт.
