Запчасти Case 30YC (D01) - COUNTERWEIGHTS, TURNTABLE, BEARING AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

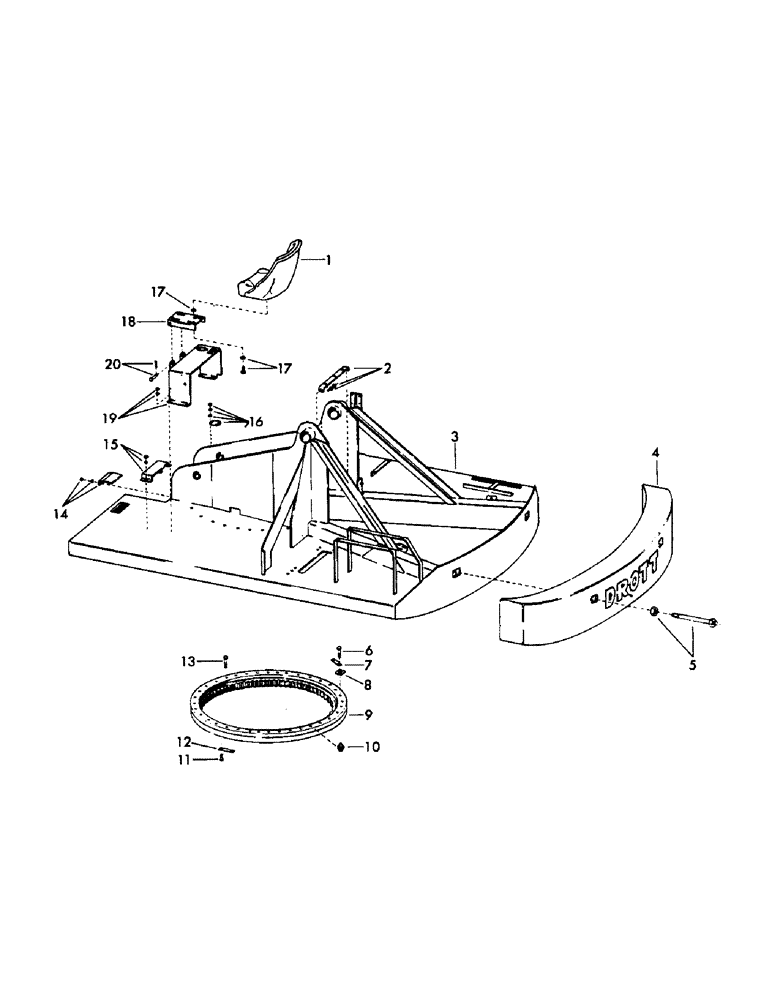

Схема запчастей Case 30YC - (D01) - COUNTERWEIGHTS, TURNTABLE, BEARING AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

210211

SEAT - bucket

1шт.

2

68667

BAR - hydraulic tube mounting

1шт.

17169

NUT - self locking - 1/2" NC

2шт.

7395

WASHER - flat - 17/32"

2шт.

3

951847

TURNTABLE

1шт.

4

58468

SPARE PART

COUNTERWEIGHT - 5100 pounds - (Used on 35 YC-EC units)

1шт.

56579

COUNTERWEIGHT - cast iron - (Used on 30 YC-EC units)

1шт.

5

210325

PRESSURE PIPE

STUD - (Counterweight mounting) - (Used on 35 YC-EC units)

2шт.

209948

STUD - (Counterweight mounting) - (Used on 30 YC-EC units)

2шт.

17095

O-RING

NUT - self locking - 1-1/2" NC

2шт.

6

S84905

BOLT

CPSW - 5/8" x 1-3/4" NC grade 8, mounts, Serial Range: bearing-turntable

30шт.

Change in listing.

1шт.

7

S84753

WASHER

- hardened

16шт.

Change in listing.

1шт.

8

S84889

SHIM,.003" Thk

1шт.

Change in listing.

1шт.

S84890

SHIM,.007" Thk

1шт.

Change in listing.

1шт.

77918

SHIM - .015"

1шт.

77919

SHIM - .030"

1шт.

77920

SHIM - .060"

1шт.

9

59629

SLIDE

BEARING - turntable, Includes 6, 7, and 10 thru 13

1шт.

10

NLS

NO LONGER SERVICED

FITTING - grease - 1/8" NPT x straight

4шт.

11

S84905

BOLT

CPSW - 5/8" x 1-3/4" NC grade 8, mounts, Serial Range: bearing-flange

36шт.

Change in listing.

1шт.

12

S84753

WASHER

- hardened

36шт.

Change in listing.

1шт.

13

S86503

BOLT

CPSW - 5/8" x 2-1/4" NC grade 8, mounts bearing to turntable through swing reducer supports)

4шт.

Change in listing.

1шт.

14

210964

GUARD - hose

1шт.

17167

LOCK NUT

NUT - self locking - 3/8"

2шт.

7389

WASHER - 7/16"

2шт.

15

202306

SPARE PART

COVER - control rod

1шт.

17167

LOCK NUT

NUT - self locking - 3/8"

2шт.

7387

LOCTITE

WASHER - flat - 7/16"

2шт.

16

76664

COVER - bearing access

1шт.

77941

NUT - 3/8" NC

2шт.

7389

WASHER - flat - 7/16"

2шт.

4397

LOCKWASHER - 3/8"

2шт.

17

2376

CPSW - 5/16" x 1" NC grade 5, seat mounting

4шт.

7381

WASHER - flat - 5/16"

4шт.

4396

LOCKWASHER

4шт.

18

501847

PULLEY

CHANNEL, seat mounting

1шт.

19

37936

MOUNTING ASSEMBLY - seat and instrument

1шт.

17167

LOCK NUT

NUT - self locking - 3/8" NC

4шт.

7389

WASHER - flat - 7/16"

4шт.

20

10809

FINGER

PIN - clevis - 1/2" x 1.516" grip length, channel mounting

2шт.

4628

SPRING WASHER

PIN - cotter - 3/32" x 1" long

2шт.

Выбрано товаров: 48
