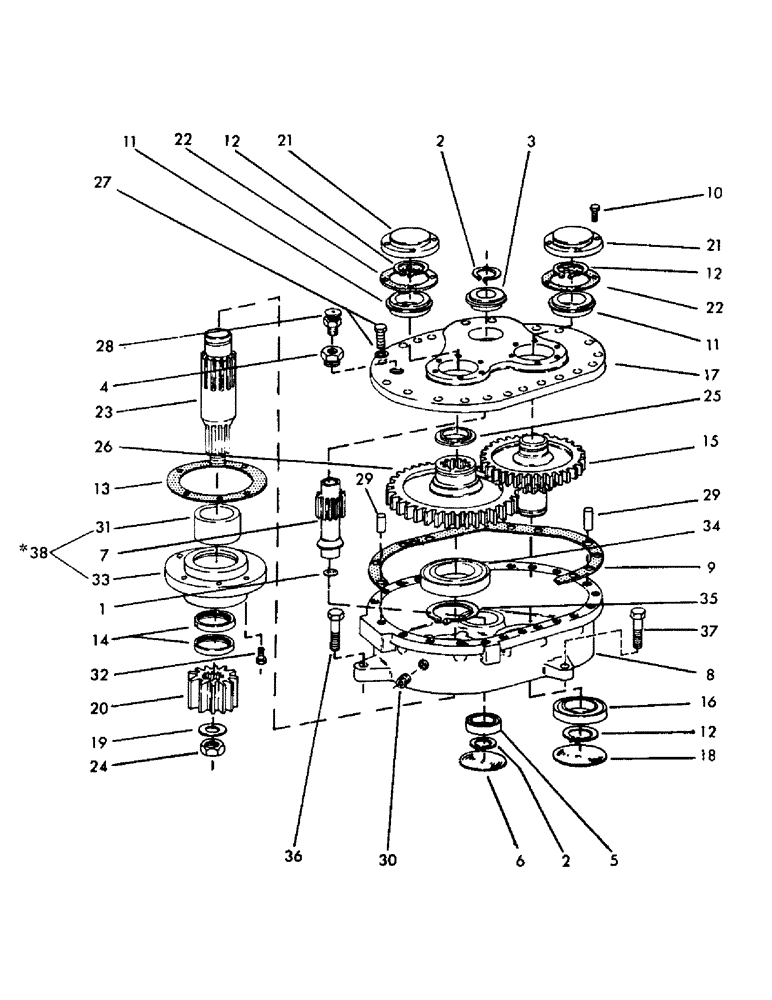

Запчасти Case 30YC (D13) - SWING REDUCER, RATIO 24.20 : 1 (04) - UNDERCARRIAGE

951130

REDUCER - gear (Consists of items 1 thru 37)

1шт.

Change in listing.

1шт.

1

81286

PLUG - expansion

1шт.

2

62725

SCREW

RING - retaining

2шт.

3

64312

BALL BEARING

BEARING - ball

1шт.

4

7780

REDUCER - pipe plug - 3/8" NPT male x 1/8" NPT female

1шт.

5

64313

BEARING - ball

1шт.

6

S64328

PLUG

- expansion

1шт.

7

S37176

PINION

& SHAFT - input

1шт.

8

S55373M3

CASE - gear

1шт.

9

S33483M1

GASKET - cover

1шт.

10

S16475

CAPSCREW

CPSW - 5/16" NC x 1"

12шт.

11

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING - ball - (Used on units with serial number 1-240)

1шт.

S85843

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball - (Used on units with serial number 241-up)

1шт.

12

S62721

RING, SNAP

RING - retaining

3шт.

13

S202561

GASKET

1шт.

14

S206136

OIL SEAL

- oil

2шт.

Change in listing.

1шт.

15

S55114

GEAR

- cluster intermediate

1шт.

16

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

17

S37588M3

COVER - gear case (Used on units with serial number 1-240)

1шт.

Change in listing.

1шт.

S50355

COVER - gear case (Used on units with serial number 241-up)

1шт.

18

S64317

PLUG

- expansion

1шт.

19

S72920

SPACER - bottom

1шт.

20

S37209M1

PINION - output - (Used on units with serial number 1-240)

1шт.

S502648

PINION

- output - (Used on units with serial number 241-up)

1шт.

21

S402194

CAP

- bearing - (Used on units with serial number 1-240)

1шт.

S214012M1

X

CAP - bearing - (Used on units with serial number 241-up)

1шт.

22

S103261

GASKET

- bearing cup

2шт.

23

S37177

SHAFT

- output - (Used on units with serial number 1-240)

1шт.

S504959

SHAFT

- ouptu (Used on units with serial number 241-up)

1шт.

24

S64448

NUT

- self locking

1шт.

25

S206476

SPACER

- bearing to gear - (Used on units with serial number 1-240)

1шт.

S214014

SPACER

- bearing to gear - (Used on units with serial number 241-up)

1шт.

26

S55116

GEAR

- drive shaft

1шт.

27

S73499

BOLT

CPSW - 3/8" NC x 1-1/4"

23шт.

28

S17478

VENT

- breather

1шт.

29

S64319

CALIPER

DOWEL

2шт.

30

S7873

PLUG

- pipe - 3/8" NPT

4шт.

Change in listing.

1шт.

31

S72921M1

BUSHING

1шт.

32

S16906

BOLT

CPSW - 1/2" NC x 3/4"

6шт.

33

S55134

SUPPORT

- reducer (Replacement with item 31 recommended)

1шт.

34

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING - ball

1шт.

35

S15409

OIL SEAL

RING - retaining

1шт.

36

S2581

SCREW

CPSW - 7/8" NC x 2" GR 5 - (Reducer mounting)

1шт.

37

S2596

BOLT

CPSW - 7/8" NC x 5-1/2" GR 5 - (Reducer mounting)

2шт.

38

S59406

HOUSING

ASSEMBLY - (Includes items 31 and 33)

1шт.

39

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING - ball

1шт.

40

S402194

CAP

- bearing

1шт.
