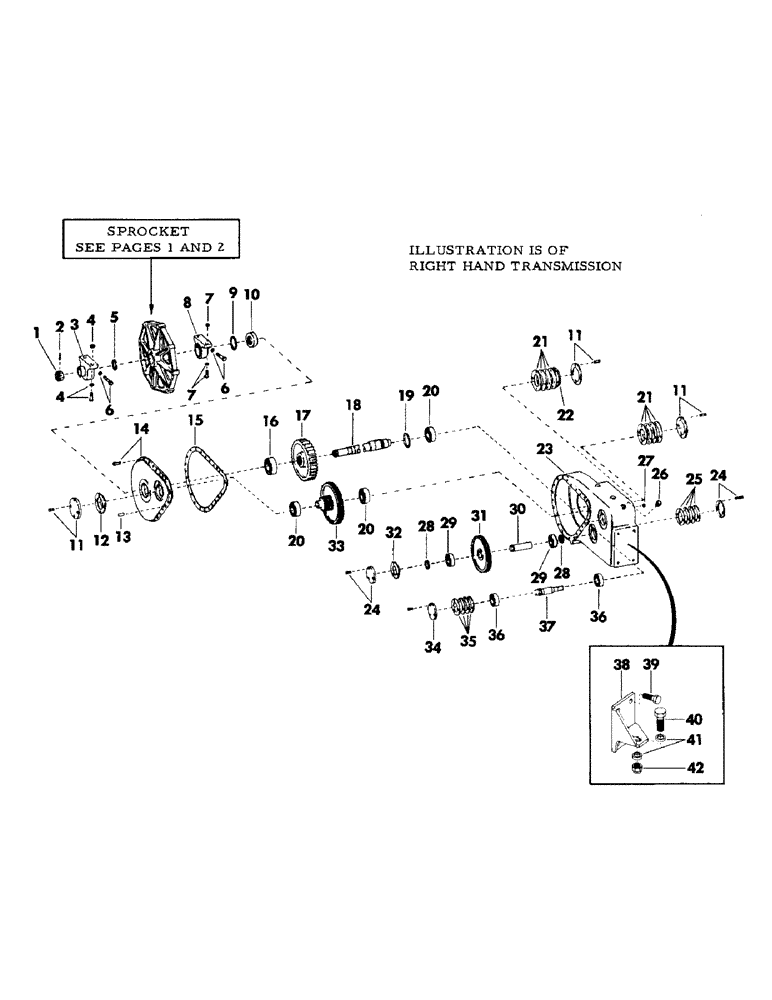

Запчасти Case 30YC (B10) - FINAL DRIVE TRANSMISSION, (RATIO 68.08 : 1), (USED ON LOGGER MACHINES) (04) - UNDERCARRIAGE

S602005

TRANSMISSION - final drive - complete (Consists of items 1, 2, 10 thru 37 and items 12 thru 15 and 17 as illustrated on page E9) - (Right hand)

1шт.

S602006

TRANSMISSION - final drive - complete (Consists of items 1, 2, 10 thru 37 and items 12 thru 15 and 17 as illutrated on page E9) - (Left hand)

1шт.

1

S9311

NUT

- 2" NF

1шт.

2

S5462

PIN

- roll - 5/16" x 2-3/4" long

1шт.

3

S209722

BLOCK

- pillow - (Outer)

1шт.

4

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" GR 8 - (Mounts pillow, Serial Range: block-frame)

1шт.

S84753

WASHER

- flat - 5/8" - (Hardened)

1шт.

S17088

NUT

- self locking - 5/8" NC

1шт.

5

S83872M1

X

SPACER - (Outer)

1шт.

6

S12261

CAPSCREW

CPSW - 3/4" NC x 3" - (Hexagon head top) - (Pillow block adjustment)

2шт.

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT - jam - 3/4" NC

2шт.

7

S84785

BOLT

CPSW - 3/4" NC x 4-1/2" - (Special) - (Mounts pillow, Serial Range: block-frame)

1шт.

S84752

WASHER

- flat - 3/4" - (Hardened)

1шт.

S17089

NUT

- self locking - 3/4" NC

1шт.

8

S212544

BEARING CARRIER

BLOCK - pillow - (Inner)

1шт.

9

S83873

SPACER

- (Inner)

1шт.

10

S83874

OIL SEAL

SEAL - oil

1шт.

11

S217974M1

COVER

- bearing

3шт.

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8" - (Socket head nylock)

12шт.

12

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

13

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

14

S952720

COVER

- transmission

1шт.

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8" - (Socket head nylock)

22шт.

15

S601621

GASKET

GASKET - transmission cover

1шт.

16

S83875

ROLLER BEARING

BEARING - roller

1шт.

17

S600865M1

X

GEAR - output

1шт.

18

S59165M2

X

SHAFT- output

1шт.

19

S76259

RING, SNAP

RING - retaining

1шт.

20

S65025

BEARING ASSY

BEARING - roller

3шт.

21

S204085

GASKET

- shim - .003"

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

22

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

23

S952724

HOUSING

- transmission - (Right hand)

1шт.

S952725

HOUSING

- transmission - (Left hand)

1шт.

24

S210368

COVER

- bearing

2шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylock)

6шт.

25

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

26

S15165

PLUG - pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

27

S7880

PLUG

- pipe - 3/4" NPT - (Socket head)

2шт.

28

S62725

RING

- retainer

2шт.

29

S65035

ROLLER BEARING

BEARING - roller

2шт.

30

S210366

SHAFT

- intermediate

1шт.

31

S53338

GEAR

CLUSTER - intermediate

1шт.

32

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

33

S601244

GEAR

CLUSTER AND SHAFT

1шт.

34

S203411

COVER

- bearing

1шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head)

3шт.

35

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET - shim - .005"

1шт.

S204095

SHIM

GASKET - shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

36

S65036

BEARING ASSY

BEARING - roller

2шт.

37

S34044

SHAFT

- input pinion

1шт.

38

S209229M1

X

BRACKET - transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230M1

X

BRACKET - transmission mounting _ (Left hand) - (Not illustrated)

1шт.

39

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" GR 5 -, Serial Range: (Bracket-transmission)

4шт.

40

S85563

PCSW - 1" NC x 3" GR 8 -, Serial Range: (Bracket-frame)

1шт.

41

S91091

WASHER

- flat - 1" - (Special)

2шт.

42

231-14016

LOCK NUT,1"-8, GB

NUT - self locking - 1" NC

1шт.
