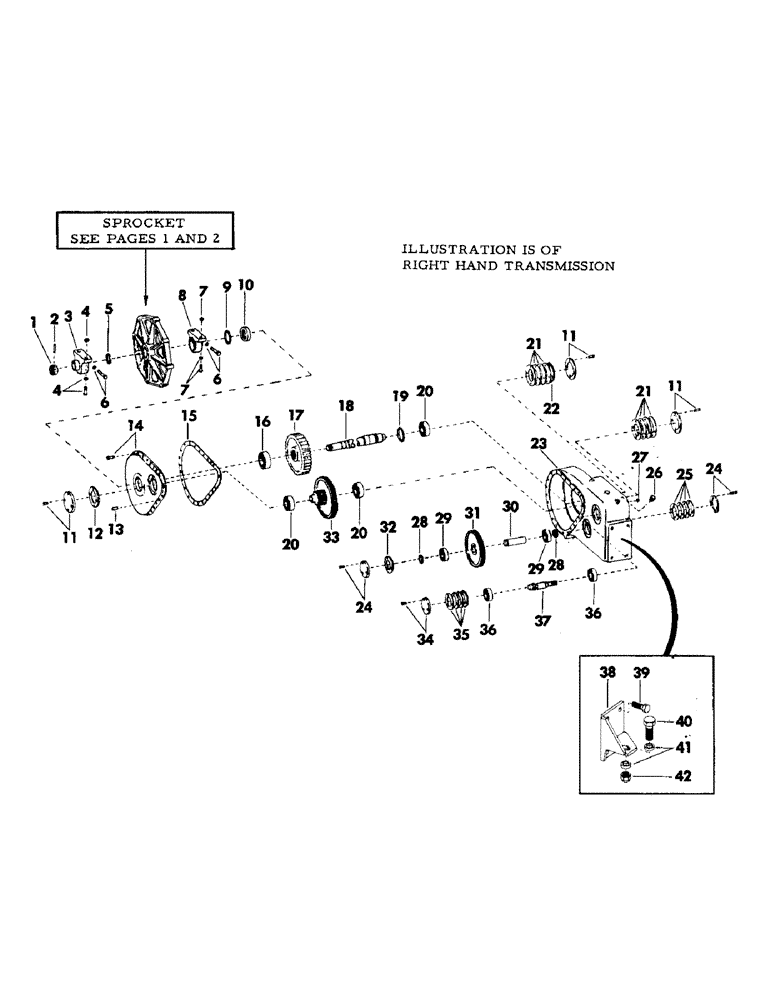

Запчасти Case 30YC (B07) - FINAL DRIVE TRANSMISSION, (RATIO 68.08 : 1), (USED ON DIRT MACHINES) (04) - UNDERCARRIAGE

S602251

TRANSMISSION - final drive - complete, Consists of Refs. 1, 2, 10 thru 37 and Refs. 12 thru 15 and 17 as illustrated on figure E9) - (Right hand)

1шт.

Change in listing.

1шт.

S602252

TRANSMISSION - final drive - complete, Consists of Refs. 1, 2, 10 thru 37 and Refs. 12 thru 15 and 17 as illustrated on figure E9) - (Left hand)

1шт.

Change in listing.

1шт.

1

S9311

NUT

- 2" NF

1шт.

Part of final drive transmission P/N S602251

1шт.

2

S5462

PIN

- roll - 5/16" x 2-3/4" long

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

3

S209722

BLOCK

- pillow, outer

1шт.

4

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" grade 8, Mounts pillow, Serial Range: block-frame

2шт.

S84753

WASHER

- flat - 5/8", hardened

2шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

S17088

NUT

- self locking - 5/8" NC

2шт.

5

S83872M1

X

SPACER

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

6

S12261

CAPSCREW

CPSW - 3/4" NC x 3", hexagon head tap, Pillow block adjustment

2шт.

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT - jam - 3/4" NC

2шт.

7

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" grade 8, Mounts pillow, Serial Range: block-frame

2шт.

S84753

WASHER

- flat - 5/8", hardened

2шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

S17088

NUT

- self locking - 5/8" NC

2шт.

8

S209721

BEARING CARRIER,2.5" ID

BLOCK - pillow, Inner

1шт.

9

S76255

SPACER

1шт.

10

S65038

OIL SEAL

- oil

1шт.

Part of final drive transmission P/N S602251

1шт.

11

S217974M1

COVER

- bearing

3шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8", socket head nylock

12шт.

Change in listing.

1шт.

12

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

13

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

Part of final drive transmission P/N S602251

1шт.

14

S952731

COVER - transmission

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8", socket head nylock

22шт.

Change in listing.

1шт.

15

S601621

GASKET

GASKET - transmission cover

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

16

S65026

BEARING ASSY

BEARING - roller

1шт.

Part of final drive transmission P/N S602251

1шт.

17

S600865M1

X

GEAR - output

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

18

S58471M1

SHAFT - output

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

19

S76259

RING, SNAP

RING - retaining

1шт.

Part of final drive transmission P/N S602251

1шт.

20

S65025

BEARING ASSY

BEARING - roller

3шт.

Part of final drive transmission P/N S602251

1шт.

21

2S04085

GASKET - shim - .003"

1шт.

Part of final drive transmission P/N S602251

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

22

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

23

S952724

HOUSING

- transmission, Right hand

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

S952725

HOUSING

- transmission, Left hand

1шт.

Change in listing.

1шт.

24

S210368

COVER

- bearing

2шт.

Part of final drive transmission P/N S602251

1шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4", socket head nylock

6шт.

Part of final drive transmission P/N S602251

1шт.

25

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

26

S15165

PLUG - pipe - 3/4" NPT, hexagon head, breather hole

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

27

S7880

PLUG

- pipe - 3/4" NPT, socket head

2шт.

Part of final drive transmission P/N S602251

1шт.

28

S62725

RING

- retaining

2шт.

Part of final drive transmission P/N S602251

1шт.

29

S65035

ROLLER BEARING

BEARING - roller

2шт.

Part of final drive transmission P/N S602251

1шт.

30

S210366

SHAFT

- intermediate

1шт.

Part of final drive transmission P/N S602251

1шт.

31

S53338

GEAR

CLUSTER - intermediate

1шт.

Part of final drive transmission P/N S602251

1шт.

32

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

33

S601244

GEAR

CLUSTER AND SHAFT

1шт.

Part of final drive transmission P/N S602251

1шт.

Change in listing.

1шт.

34

S203411

COVER

- bearing

1шт.

Part of final drive transmission P/N S602251

1шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4", socket head nylock

3шт.

Part of final drive transmission P/N S602251

1шт.

35

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

Part of final drive transmission P/N S602251

1шт.

S204094

SHIM

GASKET - shim - .005"

1шт.

S204095

SHIM

GASKET - shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

36

S65036

BEARING ASSY

BEARING - roller

2шт.

Part of final drive transmission P/N S602251

1шт.

37

S34044

SHAFT

- input pinion

1шт.

Part of final drive transmission P/N S602251

1шт.

38

S209229M1

X

BRACKET - transmission mounting, Right hand, illustrated

1шт.

S209230M1

X

BRACKET - transmission mounting, Left hand, not illustrated

1шт.

39

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" grade 5, Serial Range: bracket-transmission

4шт.

40

S88563

BOLT

CPSW - 1" NC x 3" grade 8, Serial Range: Bracket-frame

1шт.

41

S91091

WASHER

- flat - 1", special

2шт.

42

231-14016

LOCK NUT,1"-8, GB

NUT - self locking - 1" NC

1шт.
