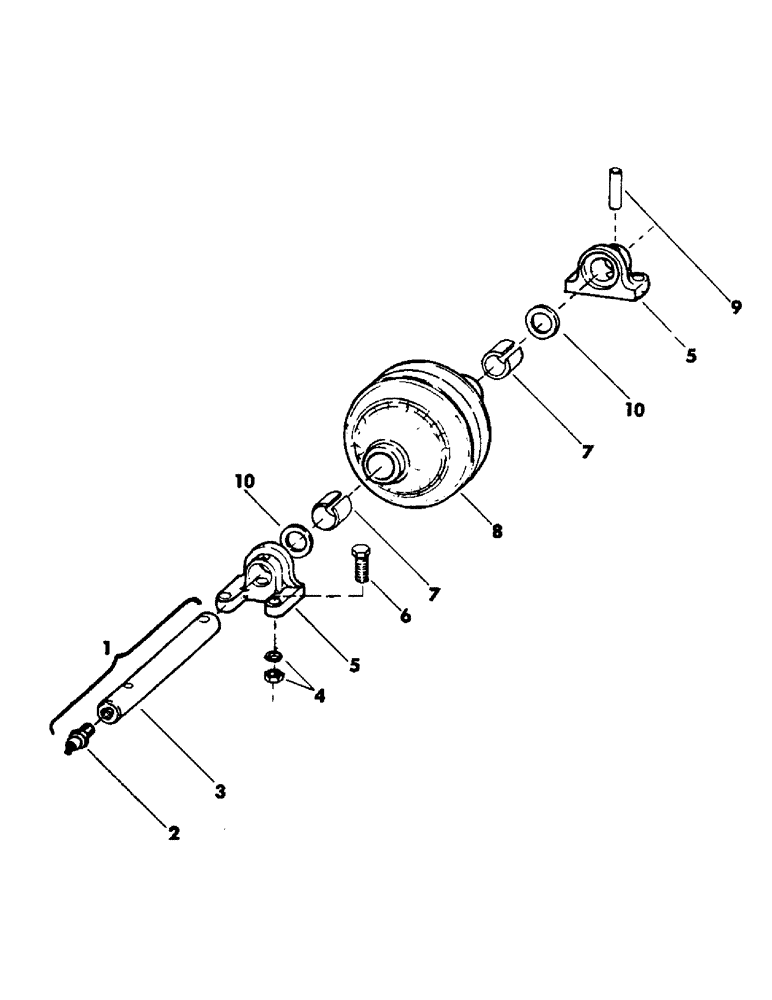

Запчасти Case 30YC (B05) - TRACK ROLLER ASSEMBLY (GREASE) (04) - UNDERCARRIAGE

501790

HYDRAULIC VALVE

ROLLER ASSEMBLY, Includes Refs. 7 and 8

14шт.

1

210172

SHAFT ASSEMBLY, Includes Refs. 2 and 3

1шт.

2

12031

FITTING - grease - 1/8" NPT straight

1шт.

Also includes shaft assembly.

1шт.

3

80656

SHAFT

1шт.

Also includes shaft assembly.

1шт.

4

4226

- 5/8" NC, Used on upper roller assemblies only

4шт.

7403

WASHER - flat - 21/32", Used on upper roller assemblies only

4шт.

5

501795M1

HUB - roller mounting

2шт.

6

2503

BOLT

CPSW - 5/8" x 1-3/4" NC grade 5

4шт.

7

80657

BUSHING

2шт.

Also includes roller assembly.

1шт.

8

501791

ENGINE OIL PAN

ROLLER, Sub assembly less bushings

1шт.

Also includes roller assembly.

1шт.

Change in listing.

1шт.

9

NLS

NO LONGER SERVICED

PIN - roll

1шт.

10

80206

BELT

WASHER - thrust-bronze

2шт.
