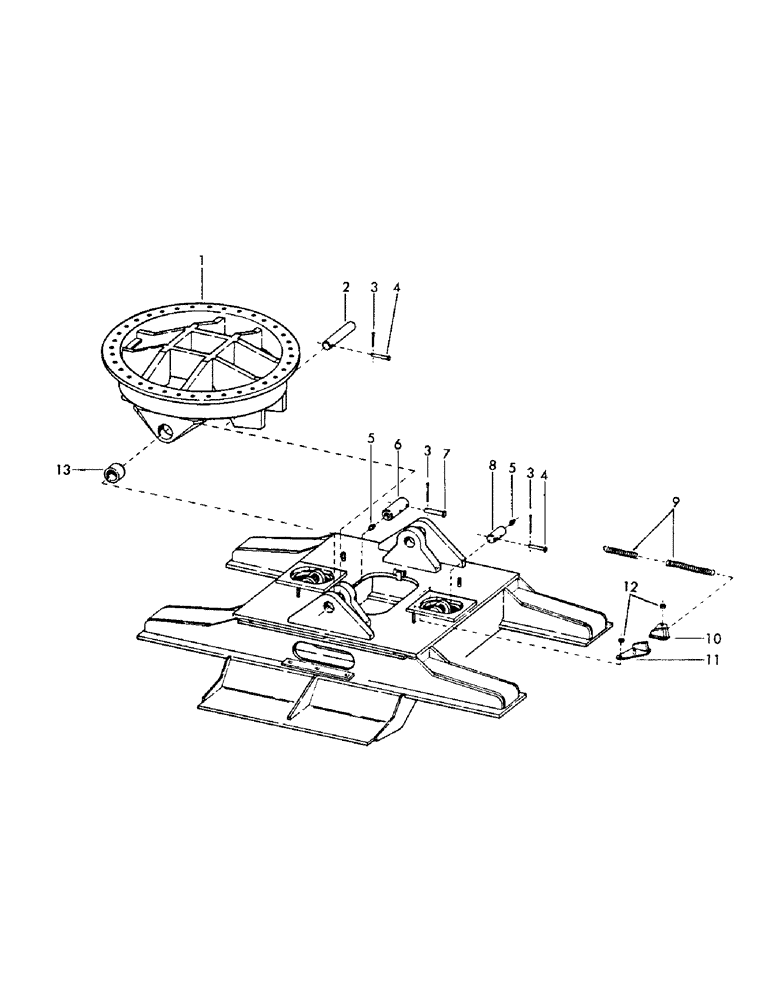

Запчасти Case 30YC (B03) - LEVELER CARBODY FOR TURNTABLE LEVELER AND RING WITH PINS AND HARDWARE. (04) - UNDERCARRIAGE

1

56800

BEARING COVER

LEVELER - upper - (Includes 2 of item 13)

1шт.

2

78554

PIN -, Serial Range: cylinder-top

2шт.

3

4641

PIN

- cotter - 5/32" x 1" long

6шт.

4

61973

PIN - clevis - 1/2" x 3.766" grip length

4шт.

5

NLS

NO LONGER SERVICED

FITTING - grease - 1/8" NPT (Straight)

4шт.

6

72631

PIN - leveler top to bottom - (Includes 1 of item 5)

2шт.

7

61977

PIN - clevis - 5/8" x 6.266" grip length

2шт.

8

78317

PIN - cylinder to bottom - (Includes 1 of item 5)

2шт.

9

64335

SPRING

2шт.

10

209083

STOP - leveler

2шт.

11

209082

STOP - leveler

2шт.

12

17169

NUT - self locking - 1/2" NC

4шт.

13

202163

BUSHING

2шт.
