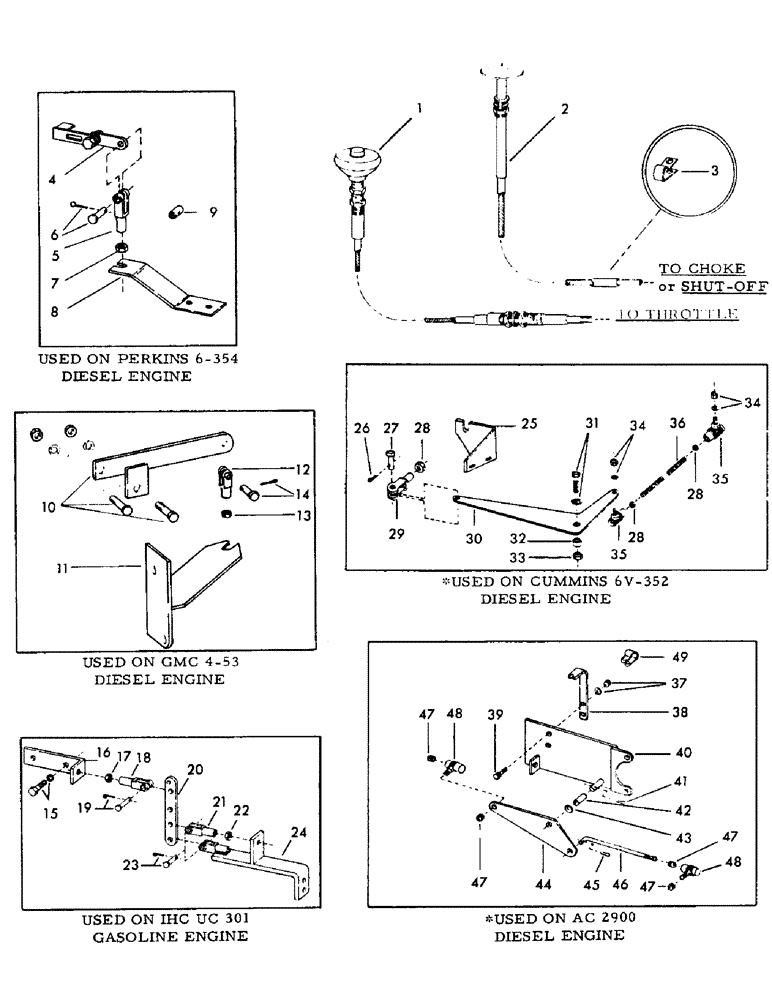

Запчасти Case 30YC (C28) - ENGINE CONTROL CABLES AND BRACKETS (01) - ENGINE

1

S201619M1

CABLE

- throttle control - (Used on units with GMC 4-53 diesel engines, Perkins 6-354 diesel engines and Cummins 6V-354 diesel engines)

1шт.

Ref. item 1-S201619M1 is still avail. from Morse Controls. Contact Nora Lee Ingraham 216-653-7781 for Morse dealer nearest the Case dealer doing the inquiry. The Morse # is 43145-3 and the working length is 106" w/ 3" travel-bybb2/14/96

1шт.

405931M1

CABLE - throttle control - (Used on units with IHC UC 301 gasoline engines and AC 2900 diesel engines)

1шт.

2

201620M1

CABLE - shut-off and choke - (Quantity of 2 used on units with GMC 4-53 diesel engines and quantity of 1 used on units with Perkins - 354 diesel engines, IHC UC 301 gasoline engines Cummins 6V-352 diesel engines and AC 2900 diesel engines)

1шт.

3

75865

SPARE PART

CLAMP - (Used on units with GMC 4-53 diesel engines)

1шт.

77322

CLAMP - (Used on units with Perkins 6-354 diesel engines)

1шт.

NLS

NO LONGER SERVICED

CLAMP - (Used on units with IHC UC 301 gasoline engines and Cummins 6V-352 diesel engines)

1шт.

49320

CLAMP - (Used on units with AC 2900 diesel engines)

1шт.

4

211061

LEVER - throttle control

1шт.

5

S10714

CLEVIS PIN

PIN - clevis - 1/4" x .648" grip length

1шт.

4610

TOY

PIN - cotter - 3/32" x 1/2" long

1шт.

6

12568

SNAP RING,M210, Int

YOKE

1шт.

7

4241

SET

NUT - jam - 1/4" NF

1шт.

8

81502

BRACKET

1шт.

9

48946

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

STOP - cable

1шт.

10

208818

LEVER - throttle linkage

1шт.

2021

WASHER

CPSW - 5/16" x 1" NF GR 5

1шт.

4396

LOCKWASHER - 5/16"

2шт.

NZ4202

TOGGLE

NUT - 5/16" NF

2шт.

11

208816

BRACKET

1шт.

12

2376

YOKE

1шт.

13

4241

SET

NUT - jam - 1/4" NF

1шт.

14

S10714

CLEVIS PIN

PIN - clevis - 1/4" x .648" grip length

1шт.

4610

TOY

PIN - cotter - 3/32" x 1/2" long

1шт.

15

2376

CPSW - 5/16" x 1" NC GR 5

2шт.

4396

LOCKWASHER - 5/16"

2шт.

16

201653

BRACKET

1шт.

17

4241

SET

NUT - jam - 1/4" NF

1шт.

18

12568

SNAP RING,M210, Int

YOKE

1шт.

19

S10714

CLEVIS PIN

PIN - clevis - 1/4" x .648" grip length

1шт.

4610

TOY

PIN - cotter - 3/32" x 1/2" long

1шт.

20

63667

LOCK WASHER

LEVER - throttle linkage

1шт.

21

12568

SNAP RING,M210, Int

YOKE

1шт.

22

4241

SET

NUT - jam - 1/4" NF

1шт.

23

S10714

CLEVIS PIN

PIN - clevis - 1/4" x .648" grip length

1шт.

4610

TOY

PIN - cotter - 3/32" x 1/2" long

1шт.

24

3334

LID

BRACKET

1шт.

25

212025M1

BRACKET - throttle cable mounting

1шт.

26

4620

BEARING CUP

PIN - cotter - 1/8" x 3/4" long

1шт.

27

10736

PIN - clevis - 5/16" x .734" grip length

1шт.

28

4241

SET

NUT - jam - 1/4" NF

3шт.

29

82381

YOKE

1шт.

30

83209

BELLCRANK

1шт.

31

2047

PIN

CPSW - 3/8" x 2-1/2" NF GR 5

1шт.

7385

WASHER - flat - 3/8"

1шт.

32

71419

SPACER

1шт.

33

4203

NUT

- 3/8" NF

1шт.

34

4201

DRILL

NUT - 3/8" NC

2шт.

7377

WASHER - flat - 3/8"

2шт.

35

76396

BALLJOINT

2шт.

36

83208

ROD

1шт.

37

4220

TOOL

NUT - 1/4" NC

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.

38

83336

BUSHING

BRACKET - throttle control

1шт.

39

2351

LAMP

CPSW - 1/4" x 1" NC GR 5

2шт.

40

211815

BRACKET - throttle control

1шт.

41

4620

BEARING CUP

PIN - cotter - 1/8" x 3/4" long

1шт.

42

83031

SPACER

1шт.

43

7587

WASHER - flat - 13/32"

1шт.

44

83267

LEVER - throttle control

1шт.

45

4620

BEARING CUP

PIN - cotter - 1/8" x 3/4" long

1шт.

46

211817

GEAR

ROD

1шт.

47

4241

SET

NUT - jam - 1/4" NF

4шт.

48

71132

BALLJOINT

2шт.

49

49320

CLAMP - choke and shut off

1шт.
