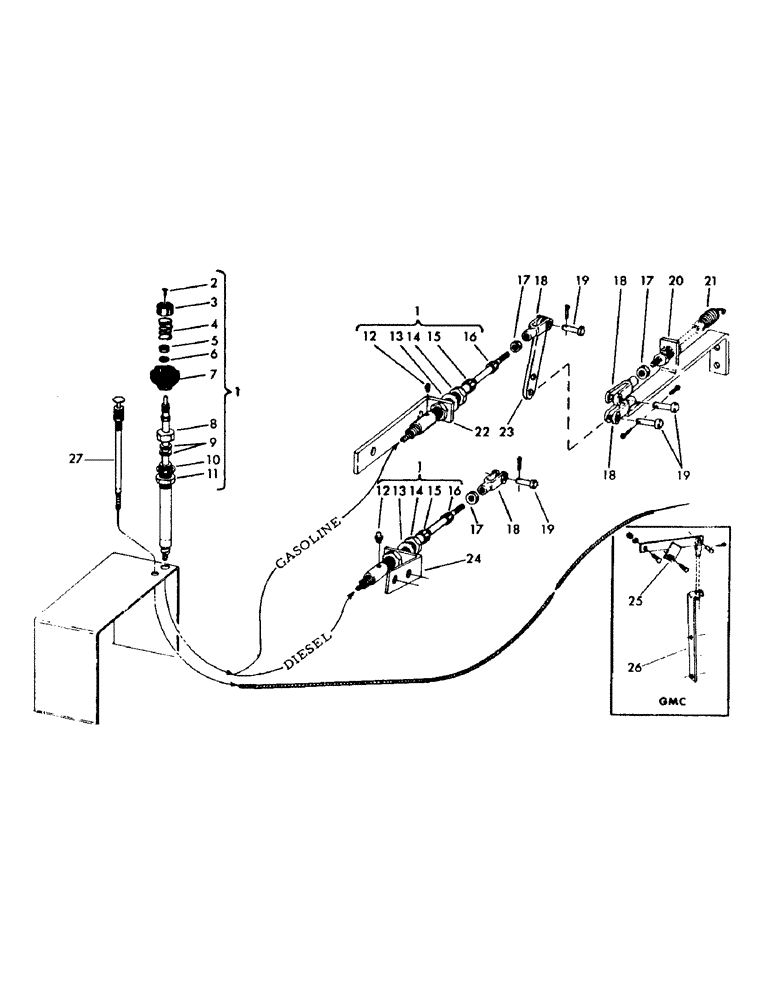

Запчасти Case 30YC (C26) - ENGINE CONTROLS FOR: IHC UC 263 GASOLINE ENGINES AND IHC UD 282 AND GMC 3-53 DIESEL ENGINES. (01) - ENGINE

1

201619M1

THROTTLE - complete (Consists of items 2 thru 16)

1шт.

2

63499

CONNECTING LINK

SCREW - button

1шт.

3

63496

BUTTON - release

1шт.

4

63498

SPRING - button

1шт.

5

63500

NUT

1шт.

6

63501

HOOK

WASHER

1шт.

7

63497

KNOB

1шт.

8

63502

NUT - special tube

1шт.

9

63503

WASHER - seal

1шт.

10

63504

WASHER - Shakeproof

1шт.

11

63505

NUT

1шт.

12

63510

JACK

FITTING - grease

1шт.

13

63507

WASHER

1шт.

14

63506

NUT

2шт.

15

63508

PIN

SEAL

1шт.

16

63509

JACK

SEAL

1шт.

17

4241

SET

NUT - jam - 1/4" NF

2шт.

18

12568

SNAP RING,M210, Int

YOKE

2шт.

19

S10714

CLEVIS PIN

PIN - clevis - 1/4" x 3/4" . 796 grip length

3шт.

4610

TOY

PIN - cotter - 3/32" x 1/2" long

3шт.

20

33334

BRACKET - throttle (Front) - (Used on IHC units)

1шт.

21

SPRING - IHC part (Order from engine manual)

1шт.

22

201653

BRACKET - throttle (rear) - (Used on IHC UC 263 gasoline engines)

1шт.

23

63667

LOCK WASHER

LEVER - throttle linkage (Used on IHC units)

1шт.

24

63583

BRACKET - throttle linkage (Used on IHC UD 282 diesel engines)

1шт.

25

204351

LEVER - throttle linkage

1шт.

2376

CPSW - 5/16" x 1" NC GR 5

1шт.

4396

LOCKWASHER - 5/16"

1шт.

4221

WASHER,3/4", SAE

NUT - 5/16" NC

1шт.

26

204971

BRACKET - throttle

1шт.

27

201620M1

CONTROL - choke or shut-off (1 used on IHC UC 263 gasoline engines and IHC UD 282 diesel engines and 2 used on GMC 3-53 diesel engines)

1шт.
