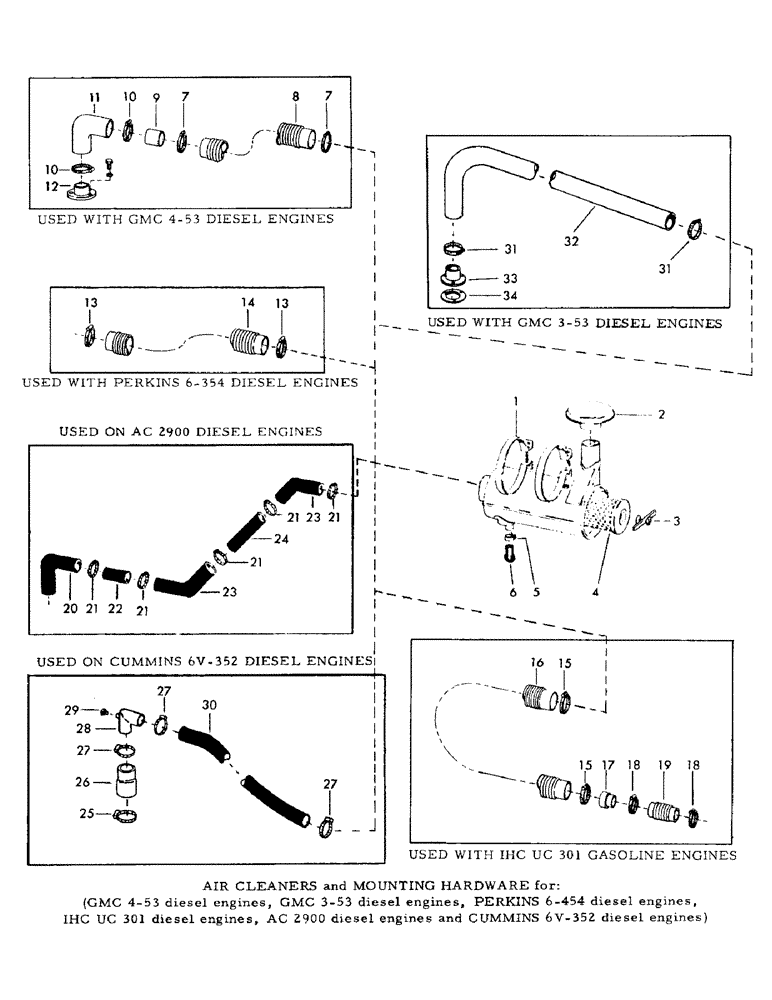

Запчасти Case 30YC (C15) - AIR CLEANERS AND MOUNTING HARDWARE FOR:, (GMC 4-53 DIESEL ENGINES, GMC 3-53 DIESEL ENGINES, (01) - ENGINE

S501779

CLEANER - air - complete (Consists of Refs. 3 thru 6) - (Used with GMC 4-53 diesel engines)

1шт.

S33667

CLEANER - air - complete (Consists of Refs. 3 thru 6) - (Used with GMC 3-53 diesel engines, and Perkins 6-354 diesel engines)

1шт.

S52672

CLEANER - air - complete (Consists of Refs. 3 thru 6) - (Used with IHC UC 301 gasoline engines)

1шт.

S39158

CLEANER

- air - complete (Consists of Refs. 3 thru 6) - (Used with AC 2900 diesel engines and Cummins 6V-352 diesel engines)

1шт.

1

S209006

RING - slip - (Used with GMC 4-53 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines)

2шт.

S64722

RING - slip - (Used with GMC 3-53 diesel engines and Perkins 6-354 diesel engines)

2шт.

S201885

CLAMP

RING - slip - (Used with IHC UC 301 gasoline engine)

2шт.

S2401

BOLT

CPSW - 3/8" x 1" NC GR 5

4шт.

S4397

WASHER

LOCKWASHER - 3/8" - (Used with GMC 4-53 diesel engines, Perkins 6-354 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines)

4шт.

S4222

NUT

- 3/8" NC (Used with GMC 4-53 diesel engines, Perkins 6-354 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines)

4шт.

S2011

WASHER - flat - 3/8" (Used with IHC UC 301 gasoline engines)

8шт.

S17167

INSTRUCTION

NUT - self locking - 3/8" NC - (Used with IHC UC 301 gasoline engines)

4шт.

2

S39157M1

TUBE

CAP - weather - (Used with GMC 4-53 diesel engine, AC 2900 diesel engine and Cummins 6V-352 diesel engines)

1шт.

S33666

CAP - weather (Used with GMC 3-53 diesel engine and Perkins 6-354 diesel engine)

1шт.

S33293

CAP

- weather (Used with ICH UC 301 gasoline engine)

1шт.

3

S76236

SEGMENT

BAR - retainer - (Used with GMC 4-53 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines) Bar, retainer - (Used with GMC 3-53 diesel engines and Perkins 6-354 diesel engines)

1шт.

Part of air cleaner P/N's S501779, S33667, and S52672

1шт.

S63737

LOCK

BAR - retainer - (Used with IHC UC 301 gasoline engines)

1шт.

4

S76237

FILTER

ELEMENT - filter - 6-1/16" diameter - (Used with GMC 4-53 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines)

1шт.

Part of air cleaner P/N's S501779, S33667, and S52672

1шт.

S71405

FILTER, ELEMENT

ELEMENT - filter - 5-1/2" diameter - (Used with GMC 3-53 diesel engine and Perkins 6-354 diesel engines)

1шт.

S63738

FILTER

ELEMENT - filter - 4-1/2" diameter - (Used with IHC UC 301 gasoline engines)

1шт.

5

S76238

CLAMP - (Used with GMC 4-53 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines)

1шт.

Part of air cleaner P/N's S501779, S33667, and S52672

1шт.

S63740

CLAMP - (Used with GMC 3-53 diesel engines and Perkins 6-354 diesel engines)

1шт.

6

S76239

FILTER BOWL

BAG - dust - (Used with GMC 4-53 diesel engines, AC 2900 diesel engines and Cummins 6V-352 diesel engines)

1шт.

Part of air cleaner P/N's S501779, S33667, and S52672

1шт.

S63739

BAG-TOOL

BAG - dust - (Used with GMC 3-53 diesel engines, Perkins 6-354 diesel engines, and IHC UC 301 gasoline engines) (Items 7 thru 12 listed below are for use with GMC 4-53 diesel engines)

1шт.

7

S10883

HOSE CLAMP

CLAMP - hose - 3-3/4" x 4"

2шт.

8

S73162

HOSE - air cleaner, bulk, 4" ID x 24" long

24шт.

9

S80630

TUBE ASSY.,4" OD x 5" L

TUBING - hose connector

1шт.

10

S10882

CLAMP

- hose - 3-1/2" x 4"

2шт.

11

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

1шт.

12

S206577

PIPE

ADAPTER - flange Refs. 13 thru 14 listed below are used with Perkins 6-354 diesel engines

1шт.

13

S83024

CLAMP

- hose - 2-1/2" x 3"

2шт.

For use with Perkins 6-354 diesel engines.

1шт.

Change in listing.

1шт.

14

S66853

HOSE

- air cleaner, bulk, 3" ID x 54" long, Refs. 15 thru 19 listed below are for use with IHC UC 301 diesel engines

54шт.

For use with Perkins 6-354 diesel engines.

1шт.

15

S10880

HOSE CLAMP

CLAMP - hose - 2-1/2" x 2-3/4"

2шт.

For use with IHC UC 301 diesel engines.

1шт.

16

S69835

HOSE - air cleane, bulk, 2-1/2" ID x 46" long

46шт.

For use with IHC UC 301 diesel engines.

1шт.

17

S64353

ADAPTER

1шт.

For use with IHC UC 301 diesel engines.

1шт.

18

S10878

HOSE CLAMP

CLAMP - hose - 1-3/4" x 2-1/4"

2шт.

For use with IHC UC 301 diesel engines.

1шт.

19

S64186

HOSE - air cleaner, bulk, 2-1/4" ID x 3" long, Refs. 20 thru 24 listed below are for use with AC 2900 diesel engines

3шт.

For use with IHC UC 301 diesel engines.

1шт.

20

S82466

ADAPTER

HOSE - air cleaner - 90 degrees x 4" ID

1шт.

For use with AC 2900 diesel engine.

1шт.

21

S83025

CLAMP

- hose

5шт.

For use with AC 2900 diesel engine.

1шт.

22

S83058

TUBING - hose adapter

1шт.

For use with AC 2900 diesel engine.

1шт.

23

S83324

HOSE - air cleaner - 45 degrees x 4" ID

2шт.

For use with AC 2900 diesel engine.

1шт.

24

S83490

TUBING - air cleaner, Refs. 25 thru 30 listed below are for use with Cummins 6V-352 diesel engines

1шт.

For use with AC 2900 diesel engine.

1шт.

25

S85677

CLAMP

- hose

1шт.

For use with Cummins 6V-352 diesel engines

1шт.

Change in listing.

1шт.

26

S83126

ADAPTER

- air inlet flange

1шт.

For use with Cummins 6V-352 diesel engines

1шт.

27

S83025

CLAMP

- hose

3шт.

For use with Cummins 6V-352 diesel engines

1шт.

28

S212166

TUBE 3.5" L

1шт.

For use with Cummins 6V-352 diesel engines

1шт.

29

S15162

PLUG

- pipe - 1/4" NPT

1шт.

For use with Cummins 6V-352 diesel engines

1шт.

30

S66853

HOSE

- air cleaner (Refs. 31 thru 34 listed below are for use with GMC 3-53 diesel engines)

32шт.

For use with Cummins 6V-352 diesel engines

1шт.

31

S10879

HOSE CLAMP

CLAMP - hose - 2" - 2-1/2"

2шт.

For use with GMC 3-53 diesel engines.

1шт.

32

S66853

HOSE

- air cleaner

1шт.

For use with GMC 3-53 diesel engines.

1шт.

33

S204066

ADAPTER - air inlet flange

1шт.

For use with GMC 3-53 diesel engines.

1шт.

34

S69424

GASKET - air inlet

1шт.

For use with GMC 3-53 diesel engines.

1шт.
