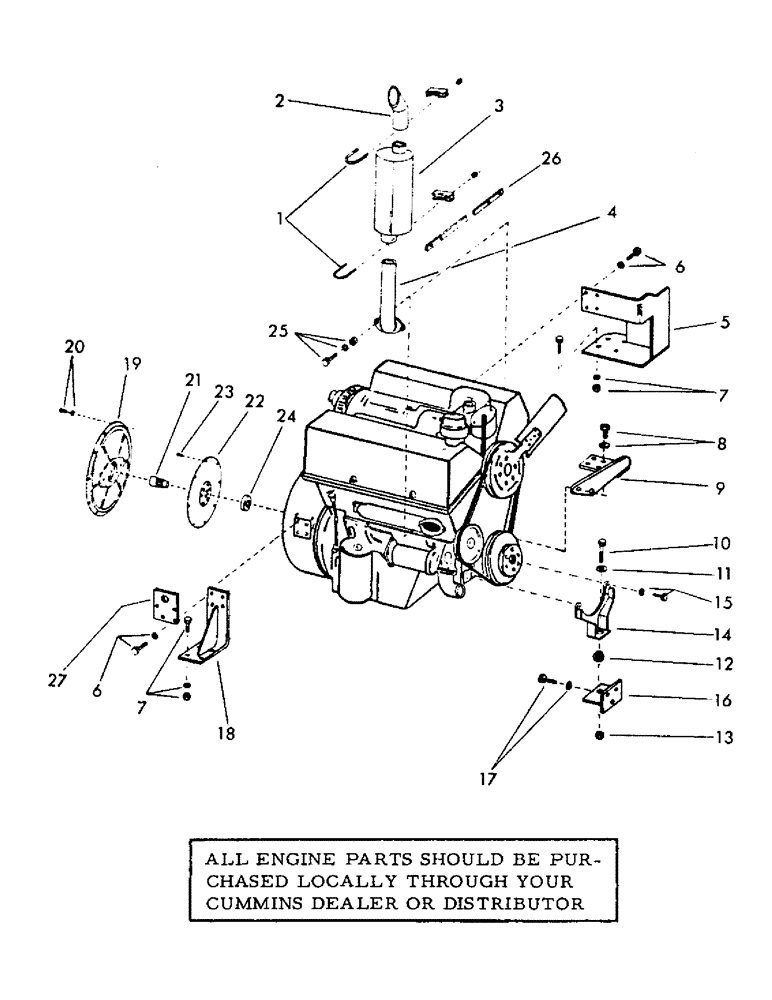

Запчасти Case 30YC (C12) - CUMMINS 6V-352 DIESEL ENGINE (DROTT #58629) AND ATTACHING (01) - ENGINE

1

63566

CLAMP

4шт.

2

206261

PIPE - exhaust

2шт.

3

211938

MUFFLER

2шт.

4

212026

PIPE - exhaust

2шт.

5

502613

TOOL

BRACKET - rear engine mounting - (Left hand)

1шт.

6

2467

CPSW - 1/2" x 1-1/2" NC GR 5

8шт.

4399

WASHER

LOCKWASHER - 1/2"

8шт.

7

2468

TACHOMETER

CPSW - 1/2" x 1-3/4" NC GR 5

8шт.

4399

WASHER

LOCKWASHER - 1/2"

8шт.

4224

NUT - 1/2" NC

8шт.

8

2425

PLOW BOLT,#3, 1/2" - 13 x 3 1/2", Gr 5

CPSW - 3/8" x 1-3/8" NC GR 5

4шт.

4397

LOCKWASHER - 3/8"

4шт.

9

212029

BRACKET - filter mounting

1шт.

10

2511

FLEXIBLE HOSE

CPSW - 5/8" x 3-3/4" NC GR 5

1шт.

11

49559

WASHER - snubbing

1шт.

12

64712

SNAP RING,#43, Ext

MOUNTING - rubber

1шт.

13

17171

NUT - self locking - 5/8" NC

1шт.

14

502520

BRACKET - front engine mounting

1шт.

15

2467

CPSW - 1/2" x 1-1/2" NC GR 5

4шт.

4399

WASHER

LOCKWASHER - 1/2"

4шт.

16

502615

BRACKET -, Serial Range: engine-frame

1шт.

17

2465

ENGINE

CPSW - 1/2" x 1" NC GR 5

3шт.

4399

WASHER

LOCKWASHER - 1/2"

3шт.

18

502493

BRACKET - rear engine mounting - right hand

1шт.

19

52615

REAR FENDER

ADAPTER

1шт.

20

2401

LAMP

CPSW - 3/8" x 1" NC GR 5

11шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC GR 5

1шт.

4397

LOCKWASHER - 3/8"

12шт.

21

63201

COUPLING - pump drive

1шт.

22

33200

CLAMP

DAMPENER - pump drive

1шт.

23

63218

CPSW - 3/8" x 5/8" NC GR 5

8шт.

24

83223

SPACER

1шт.

25

2403

LAMP

CPSW - 3/8" x 1-1/2" NC GR 5

4шт.

4397

LOCKWASHER - 3/8"

4шт.

4222

NUT - 3/8" NC

4шт.

26

83363

BAR - muffler stabilizer

1шт.

27

82254

SUPPORT - voltage regulator and hourmeter

1шт.
