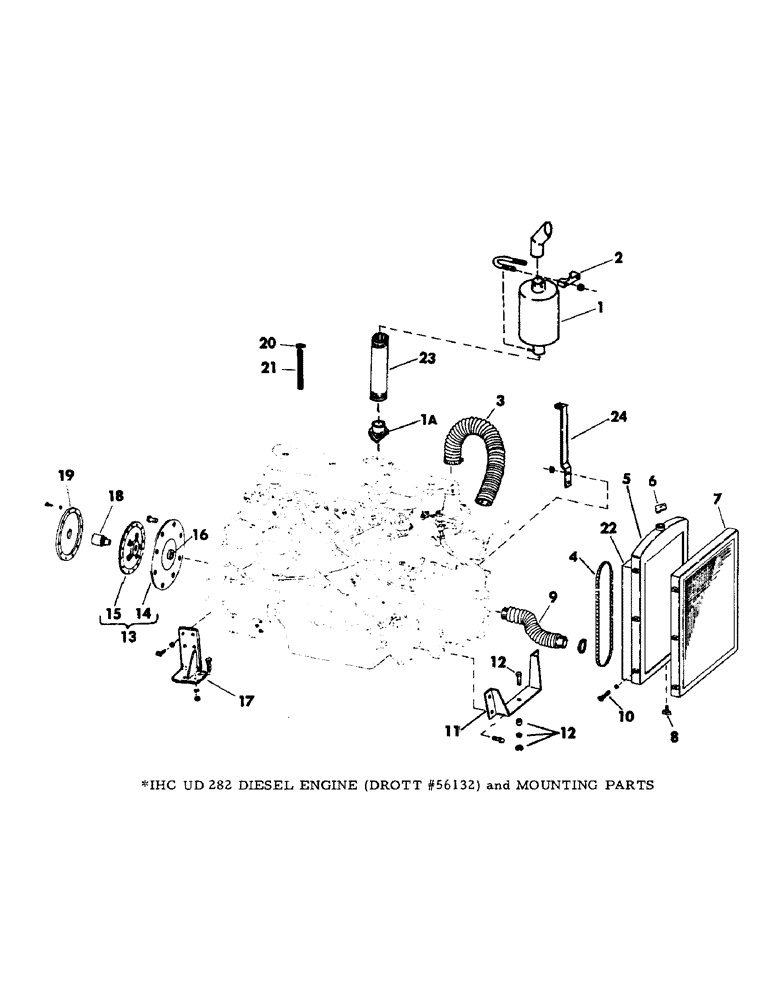

Запчасти Case 30YC (C08) - *IHC UD 282 DIESEL ENGINE (DROTT #56132) AND MOUNTING PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
209070
MUFFLER
1шт.
1a
209933
ADAPTER
1шт.
2
65056
CLAMP - muffler
1шт.
3
64061
HOSE - radiator - upper
1шт.
10878
CLAMP - hose
2шт.
4
63571
BELT - fan
1шт.
5
56172
RADIATOR (Includes item 6)
1шт.
6
73374
CAP - radiator
1шт.
7
36359M1
COOLER - oil
1шт.
8
49610
DRAIN - radiator
1шт.
9
63624
BRACKET
HOSE - radiator - lower
1шт.
10878
CLAMP - hose
2шт.
10
76819
CPSW - 5/16" x 1-3/8" NC GR 5
12шт.
7344
WASHER - flat - 5/16"
12шт.
4397
LOCKWASHER - 3/8"
12шт.
11
501852
DRIVE BUSHING
BRACKET - front engine mounting
1шт.
2512
CPSW - 5/8" x 4" NC GR 5
4шт.
17088
NUT - 5/8" NC
4шт.
12
2511
FLEXIBLE HOSE
CPSW - 5/8" x 3-3/4" NC GR 5
1шт.
27791
MOUNTING - compression
1шт.
49559
WASHER - snubbing
1шт.
17174
NUT - lock - 5/8" NC
1шт.
13
33200
CLAMP
DAMPENER (Consists of items 14 and 15)
1шт.
14
201639
DAMPER
1шт.
63218
CPSW - 3/8" x 5/8" NC GR 5
8шт.
15
86628560
SPACER
PILOT
1шт.
16
63071
SPACER
1шт.
17
NLS
NO LONGER SERVICED
BRACKET - rear engine mounting (Right side)
1шт.
2467
CPSW - 1/2" x 1-1/2" NC GR 5
4шт.
4399
WASHER
LOCKWASHER - 1/2"
4шт.
2468
TACHOMETER
CPSW - 1/2" x 1-3/4" NC GR 5
4шт.
4224
NUT - 1/2" NC
4шт.
4399
WASHER
LOCKWASHER - 1/2"
4шт.
501609
GASKET
BRACKET - rear engine mounting (Left side) (Not illustrated)
1шт.
2467
CPSW - 1/2" x 1-3/4" NC GR 5
4шт.
4399
WASHER
LOCKWASHER - 1/2"
4шт.
2468
TACHOMETER
CPSW - 1/2" x 1-3/4" NC GR 5
4шт.
4224
NUT - 1/2" NC
4шт.
4399
WASHER
LOCKWASHER - 1/2"
4шт.
18
63201
COUPLING - pump drive
1шт.
19
52615
REAR FENDER
MOUNT - pump
1шт.
2401
LAMP
CPSW - 3/8" x 1" NC GR 5
12шт.
4397
LOCKWASHER - 3/8"
12шт.
20
10875
CLAMP
1шт.
21
63887
KEY
HOSE - oil breather
9шт.
22
57722
SHROUD - radiator
1шт.
14458
ELEC. TERMINAL PIN,8 - 10
SCREW - machine - (Shroud to radiator) - 1/4" x 5/16"
6шт.
7342
LOCKWASHER - internal tooth - 1/4"
6шт.
23
207867
PIPE - exhaust
1шт.
24
209570
BRACKET - tube line mounting
1шт.
Выбрано товаров: 50
