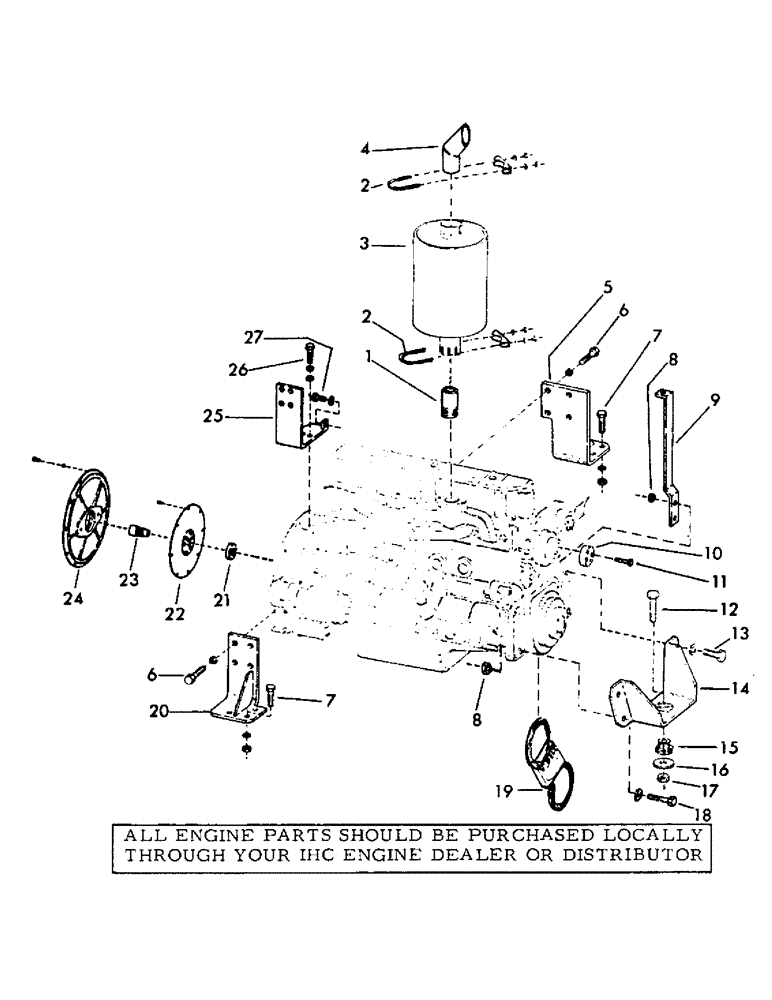

Запчасти Case 30YC (C04) - IHC UC 301 GASOLINE ENGINE (DROTT #56605) AND MOUNTING PARTS, *(USED WITH 35YC-EC UNITS ONLY) (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
80478
ADAPTER
1шт.
2
65056
CLAMP
2шт.
3
209070
MUFFLER
1шт.
4
207867
PIPE - exhaust
1шт.
5
501609
GASKET
BRACKET - rear engine mounting - left
1шт.
6
2466
ENGINE
CPSW - 1/2" x 1-1/4" NC grade 5
8шт.
4399
WASHER
LOCKWASHER - 1/2"
8шт.
7
2468
TACHOMETER
CPSW - 1/2" x 1-3/4" NC grade 5
8шт.
4399
WASHER
LOCKWASHER - 1/2"
8шт.
4224
NUT - 1/2" NC
8шт.
8
17088
NUT - self locking, 5/8" NC
4шт.
9
209570
BRACKET - tube line mounting
1шт.
10
80240
CUTTING EDGE
SPACER
1шт.
11
2009
NUT
CPSW - 1/4" x 2-3/4" NF grade 5
4шт.
12
2511
FLEXIBLE HOSE
CPSW - 5/8" x 3-3/4" NC grade 5
1шт.
13
2514
CPSW - 5/8" x 4-1/2" NC grade 5
2шт.
14
501852
DRIVE BUSHING
BRACKET - front engine mounting
1шт.
15
27791
MOUNTING - rubber
1шт.
16
49559
WASHER - snubbing
1шт.
17
17171
NUT - self locking - 5/8" NC
1шт.
18
2512
CPSW - 5/8" x 4" NC grade 5
2шт.
19
81044
V-BELT
1шт.
20
NLS
NO LONGER SERVICED
BRACKET - rear engine mounting - right
1шт.
21
63071
SPACER
1шт.
22
33200
CLAMP
DAMPENER - pump drive
1шт.
63218
CPSW - 3/8" x 5/8" NC grade 5
8шт.
23
63201
COUPLING - pump drive
1шт.
24
52615
REAR FENDER
ADAPTION - pump drive
1шт.
2401
LAMP
CPSW - 3/8" x 1" NC grade 5
9шт.
2402
LAMP
CPSW - 3/8" x 1-1/4" NC grade 5
3шт.
4397
LOCKWASHER - 3/8"
12шт.
25
39711
BRACKET - air cleaner mounting
1шт.
26
2401
LAMP
CPSW - 3/8" x 1" NC grade 5
2шт.
4397
LOCKWASHER - 3/8"
2шт.
7387
LOCTITE
WASHER - flat - 3/8"
2шт.
27
2465
ENGINE
CPSW - 1/2" x 1" NC grade 5
1шт.
4399
WASHER
LOCKWASHER - 1/2"
1шт.
Выбрано товаров: 37
