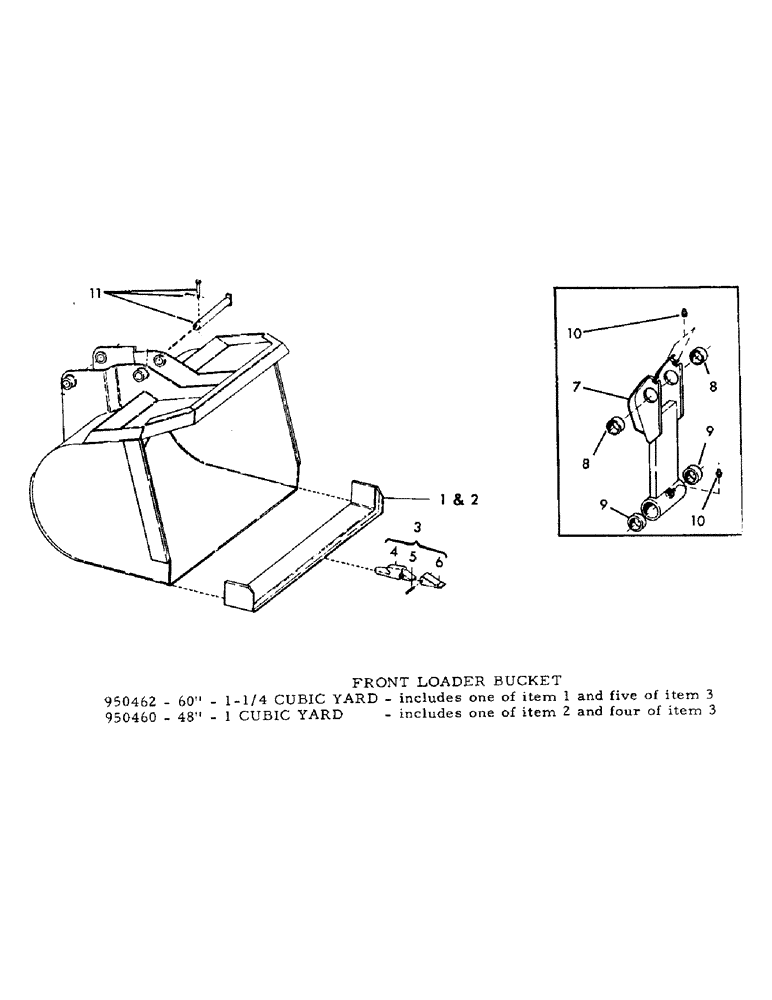

Запчасти Case 30YC (F02) - FRONT LOADER BUCKET (19) - BUCKETS

1

206728

EDGE - cutting - for 60" loader 1" x 8"

1шт.

2

206799

EDGE - cutting - for 48" loader 1" x 8"

1шт.

3

37773M1

TOOTH, Includes Refs. 4 thru 6

1шт.

Change in listing.

1шт.

4

37774M1

SHANK - tooth

1шт.

Change in listing.

1шт.

5

7894

SPARE PART

PIN - roll - 33/64" x 2-1/2" long

1шт.

6

3106926R1

TOOTH

- replaceable

1шт.

7

210256

LINK - front loader bucket, Includes Refs. 8 and 9

1шт.

8

202073

BUSHING

2шт.

9

202070

STEERING KNUCKLE

BUSHING

2шт.

10

12031

FITTING - grease 1/8" NPT x straight

3шт.

11

200960M1

PIN

1шт.

10813

RETAINER COLLAR

PIN - clevis - 1/2" x 2.391" grip length

1шт.

4641

PIN

- cotter - 5/32" x 1" long

1шт.
