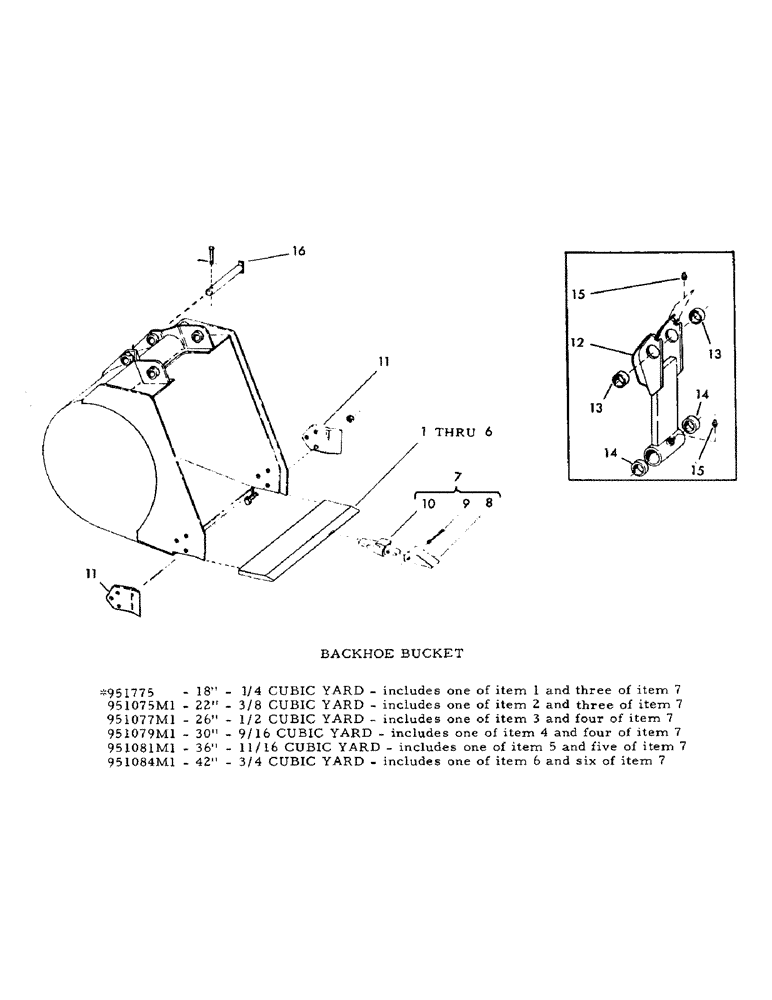

Запчасти Case 30YC (F01) - BACKHOE BUCKET (19) - BUCKETS

1

207678

EDGE - cutting - for 18" backhoe 7/8" x 8"

1шт.

2

207679

EDGE - cutting - for 22" backhoe 7/8" x 8"

1шт.

3

207680

EDGE - cutting - for 26" backhoe 7/8" x 8"

1шт.

4

207681

EDGE - cutting - for 30" backhoe 7/8" x 8"

1шт.

5

207676

EDGE - cutting - for 36" backhoe 1" x 8"

1шт.

6

207677

EDGE - cutting - for 42" backhoe 1" x 8"

1шт.

7

37773M1

TOOTH, Includes Refs. 8 thru 10

1шт.

Change in listing.

1шт.

8

37774M1

SHANK - tooth

1шт.

Change in listing.

1шт.

9

7894

SPARE PART

PIN - roll - 33/64" x 2-1/2" long

1шт.

10

204157

RING

- replaceable

1шт.

11

33993

CUTTER - side

2шт.

2548

CYLINDER END CAP

CPSW - 3/4" x 2-3/4" NC grade 5

6шт.

4227

TOY

NUT - 3/4" NC

6шт.

12

209890

LINK - backhoe, Includes Refs. 13 and 14

1шт.

13

202073

BUSHING

2шт.

14

202070

STEERING KNUCKLE

BUSHING

2шт.

15

NLS

NO LONGER SERVICED

FITTING - grease - 1/8" NPT x straight

3шт.

16

200960M1

PIN

1шт.

61972

PIN - clevis - 1/2" x 3.266" grip length

1шт.

4641

PIN

- cotter - 5/32" x 1" long

1шт.
