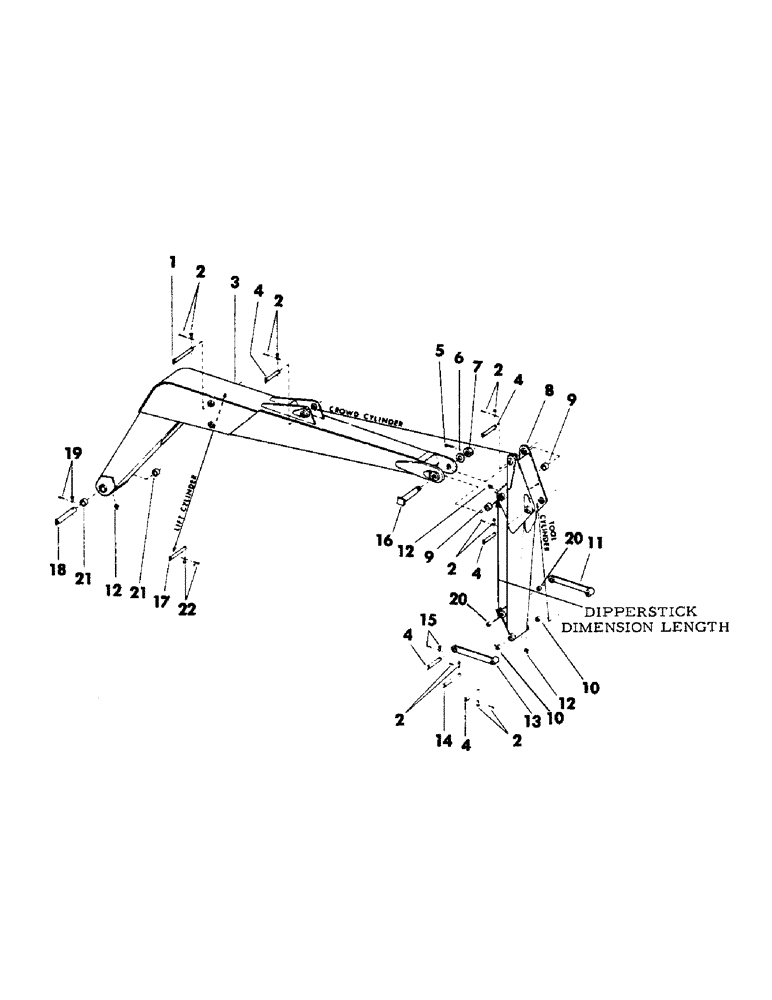

Запчасти Case 30YC (D17) - "E" MAIN BOOM AND DIPPERSTICKS (WITH PINS AND LINKS) (09) - BOOMS

1

201024M1

PIN

1шт.

2

61972

PIN - clevis - 1/2" x 3.266" grip length

6шт.

4627

COTTER PIN

PIN - cotter - 1/8" x 1" long

6шт.

3

951854

BOOM - main excavator - (Includes Ref. 21 and 1 of Ref. 12)

1шт.

4

209889

PIN

5шт.

5

4678

HYDRAULIC HOSE

PIN - cotter - 1/4" x 3-1/2" long

1шт.

6

7436

WASHER - flat - 2"

1шт.

7

9396

NUT - slotted - 2" NC

1шт.

8

S951859M1

DIPPERSTICK - 6'5" (Includes Refs. 9, 10 and 20 and 3 of Ref. 12)

1шт.

Change in listing.

1шт.

S951858M1

DIPPERSTICK - 8'5" (Includes Refs. 9, 10 and 20 and 3 of Ref. 12)

1шт.

Change in listing.

1шт.

9

210602

BUSHING

2шт.

Includes dipperstick and 3 grease fittings.

1шт.

10

210601

BUSHING

2шт.

Includes dipperstick and 3 grease fittings.

1шт.

11

209894

LINK - guide - left hand

1шт.

12

12031

FITTING - grease - 1/8" NPT x straight

4шт.

13

209893

LINK - guide - right hand

1шт.

14

201019M4

PIN -, Serial Range: (Dipperstick-tool)

1шт.

15

61973

PIN - clevis - 1/2" x 3.766" grip length

1шт.

4627

COTTER PIN

PIN - cotter - 1/8" x 1" long

1шт.

16

209677

PIN - shoulder

1шт.

17

201018M1

PIN - (Hoist, Serial Range: cylinder-turntable)

1шт.

18

201023M1

PIN

1шт.

19

S61975

PIN,20.62mm OD x 106.76mm L

- clevis - 5/8" x 3.766" grip length

1шт.

Change in listing.

1шт.

4628

SPRING WASHER

PIN - cotter - 1/8" x 1-1/4" long

1шт.

20

202070

STEERING KNUCKLE

BUSHING

2шт.

Includes dipperstick and 3 grease fittings.

1шт.

21

202162

BUSHING

2шт.

22

61971

PIN - clevis - 1/2" x 2.766" grip length

1шт.

4627

COTTER PIN

PIN - cotter - 1/8" x 1" long

1шт.
