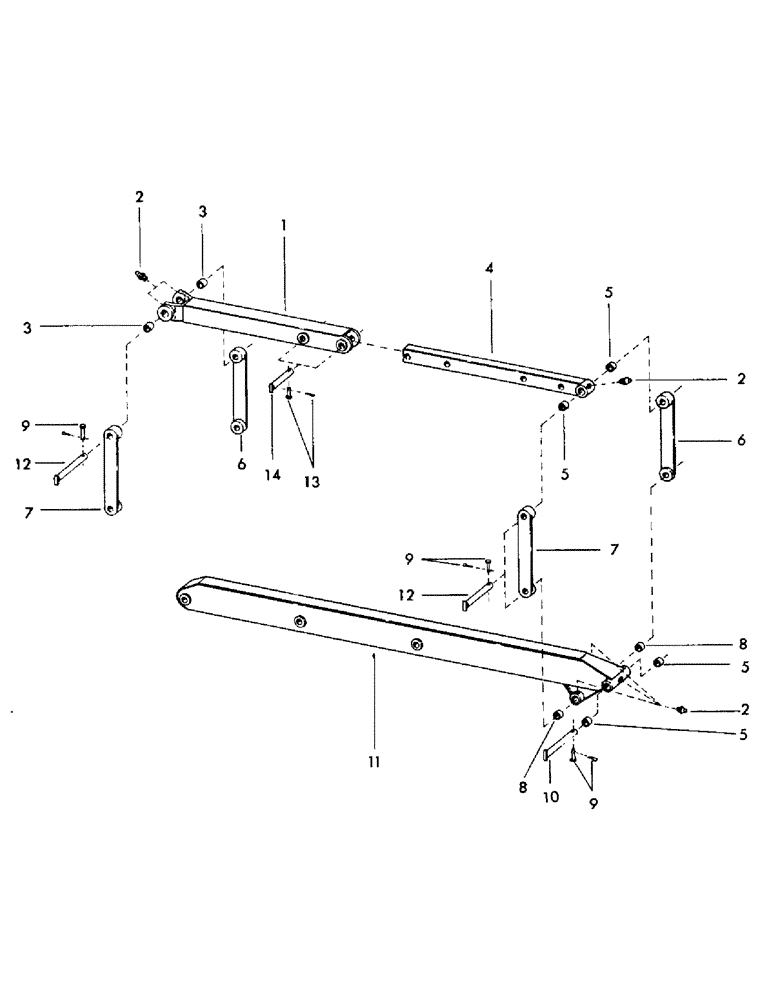

Запчасти Case 30YC (D16) - "Y" TOOL BOOM EXTENSIONS (WITH PINS AND LINKS) (09) - BOOMS

1

502858

LINE

LINK - outer - (Includes 2 of Ref. 2 and includes Ref. 3)

1шт.

2

NLS

NO LONGER SERVICED

FITTING - grease - 1/8" NPT, straight

6шт.

3

202073

BUSHING

2шт.

4

501863

SPARE PART

LINK - inner - (Includes 1 of Ref. 2 and includes 2 of Ref. 5)

1шт.

5

202070

STEERING KNUCKLE

BUSHING

6шт.

6

209894

LEVER - (Right hand)

2шт.

7

209893

LEVER - (Left hand)

2шт.

8

202071

KIT

BUSHING

2шт.

9

61972

PIN - clevis - 1/2" x 3.266" grip length

4шт.

4641

PIN

- cotter - 5/32" x 1" long

4шт.

10

201019M4

PIN

1шт.

11

58036

EXTENSION - tool boom - short - (14'-17' depth) - Includes 3 of Ref. 2, includes 4 of Ref. 5 and includes Ref. 8

1шт.

58037

EXTENSION - tool boom - long - (16'-19' depth) - Includes 3 of Ref. 2, includes 4 of Ref. 5 and includes Ref. 8

1шт.

12

209889

PIN

3шт.

213064

PIN - (Used with Feller/Buncher attachment only)

1шт.

Change in listing.

1шт.

13

10785

PIN - clevis - 3/8" x 3.266" grip length

2шт.

4641

PIN

- cotter - 5/32" x 1" long

2шт.

14

206139M1

PIN

2шт.
