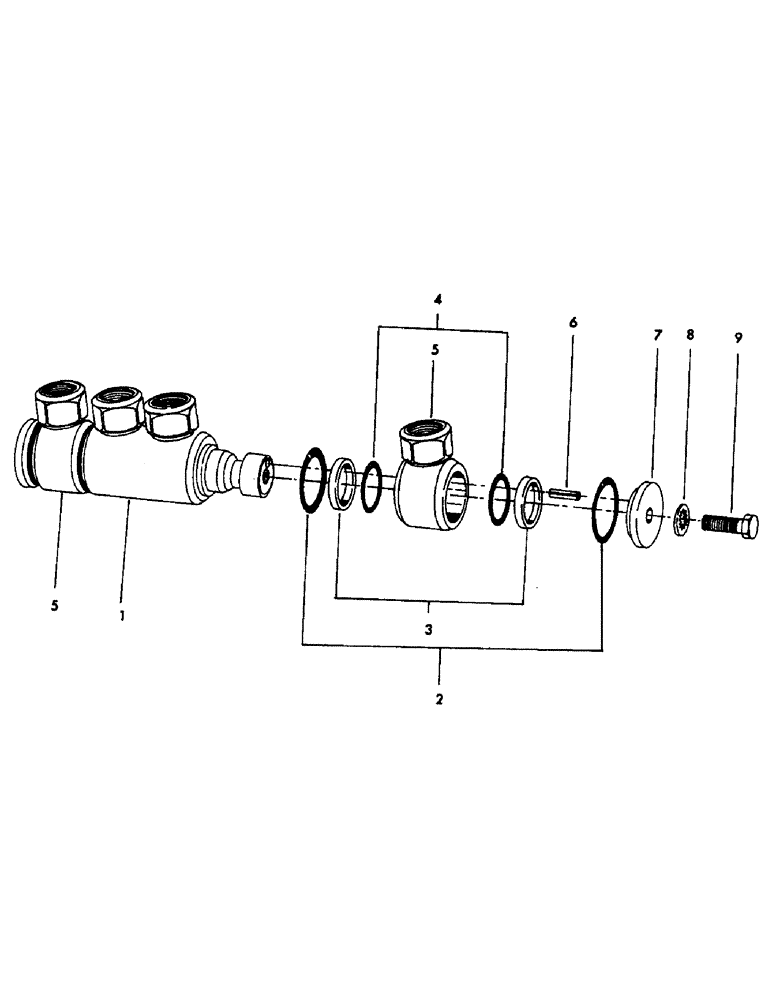

Запчасти Case 30YC (081) - LOG GRAPPLE SWIVEL (18) - ATTACHMENT ACCESSORIES

202761

SWIVEL, grapple (Consists of items 1 thru 9)

1шт.

1

26263

BODY, swivel

1шт.

2

5811

O-RING

"O" RING, 1-15/64 ID x 1-1/2 OD

4шт.

3

6912

HEADLAMP

RING, back up

2шт.

4

6578

SPARE PART

"O" RING, 51/64 ID x 1-1/16 OD

2шт.

5

29820

SLEEVE, swivel (Includes items 3 and 4)

2шт.

6

5275

PIN, roll 3/32 x 1/4

2шт.

7

7991

KIT

GUARD, grit

2шт.

8

7342

LOCKWASHER, internal tooth 1/4

2шт.

9

2349

CPSW, 1/4 x 1/2 NC Gr 5

2шт.
