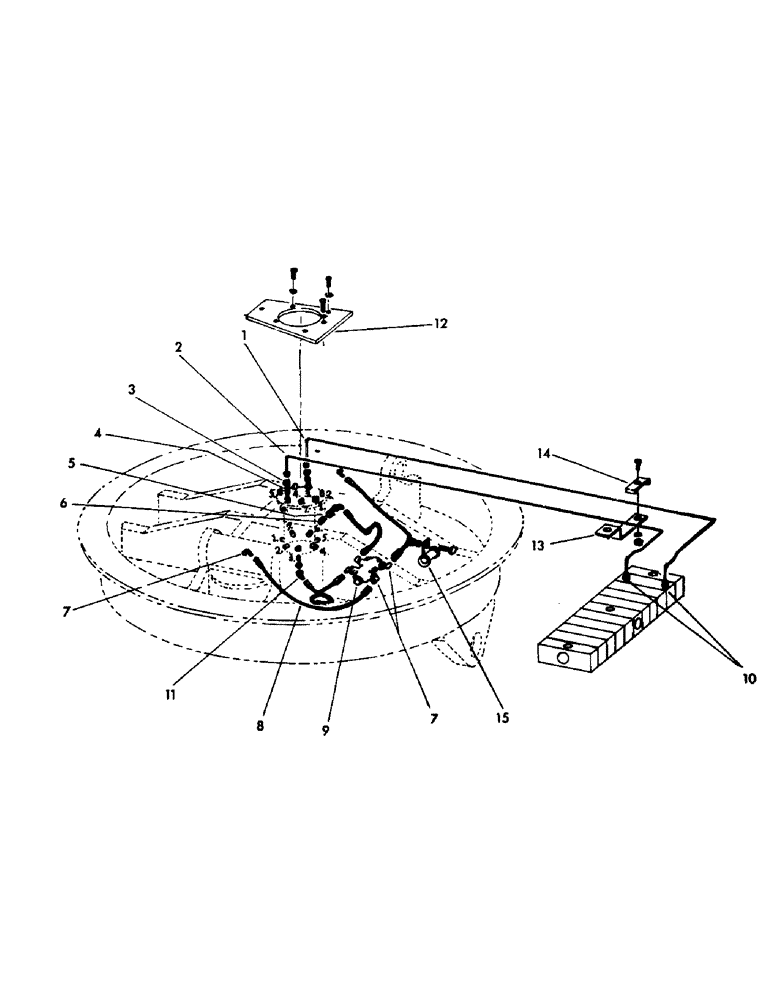

Запчасти Case 30YC (089) - 30 YC LEVELER HYDRAULICS WITH 7 PORT SWIVEL (07) - HYDRAULIC SYSTEM

1

33766

REFLECTOR

LINE, hydraulic - rear leveler valve section to swivel port #3

1шт.

2

33767

WASHER

LINE, hydraulic - front leveler valve section to swivel port #6

2шт.

3

6277

O-RING

NUT, 3/4 tube

2шт.

4

101838

ADAPTER, 3/4 to 3/8 tube

2шт.

5

6277

O-RING

NUT, 3/4 tube #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

6

101833

REDUCER, 3/4 x 3/8 tube #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

7

7939

ELBOW, 90 degrees adjustable, 9/16 male x male #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

6шт.

6061

O-RING

"O" RING, 41/64 ID x 13/16 OD #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

6шт.

8

11226

HOSE, high pressure 3/8 ID x 20" lg #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

4шт.

9

33333

VALVE, crossover #6 & #3 BOTTOM SWIVEL PORTS TO

1шт.

2355

CPSW - 1/4 x 2 NC #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

4395

WASHER

LOCKWASHER, 1/4 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

4220

TOOL

NUT - 1/4 NC #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

10

7986

HYDRAULIC HOSE

CONNECTOR, flared - 1-1/16 thd x 9/16 tube #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

6065

O-RING

"O" RING, 59/64 ID x 1-5/32 OD #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

11

10357

BRACKET

ELBOW, 90 degrees swivel, 3/4 male x female #6 & #3 BOTTOM PORTS TO CROSSOVER VALVE

2шт.

12

33326M1

PLATE, swivel mounting (For seven port swivel) #6 & #3 BOTTOM TO CROSSOVER VALVE

1шт.

2402

LAMP

CPSW - 3/8 x 1-1/4 NC Gr 5 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

3шт.

2401

LAMP

CPSW - 3/8 x 1 NC Gr 5 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

2шт.

4397

LOCKWASHER - 3/8 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

5шт.

2465

ENGINE

CPSW - 1/2 x 1 NC Gr 5 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

4399

WASHER

LOCKWASHER - 1/2 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

13

64606

BRACKET, clamp mtg #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

14

46860

CLAMP, tube #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

2349

CPSW - 1/4 x 1/2 NC Gr 5 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

4220

TOOL

NUT - 1/4 NC #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

4395

WASHER

LOCKWASHER - 1/4 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

15

205260

BRACKET, spring holder #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

2355

CPSW - 1/4 x 2 NC Gr 5 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

4395

WASHER

LOCKWASHER - 1/4 #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.

4220

TOOL

NUT - 1/4 NC #6 & #3 BOTTOM SWIVEL PORTS TO CROSSOVER VALVE

1шт.
