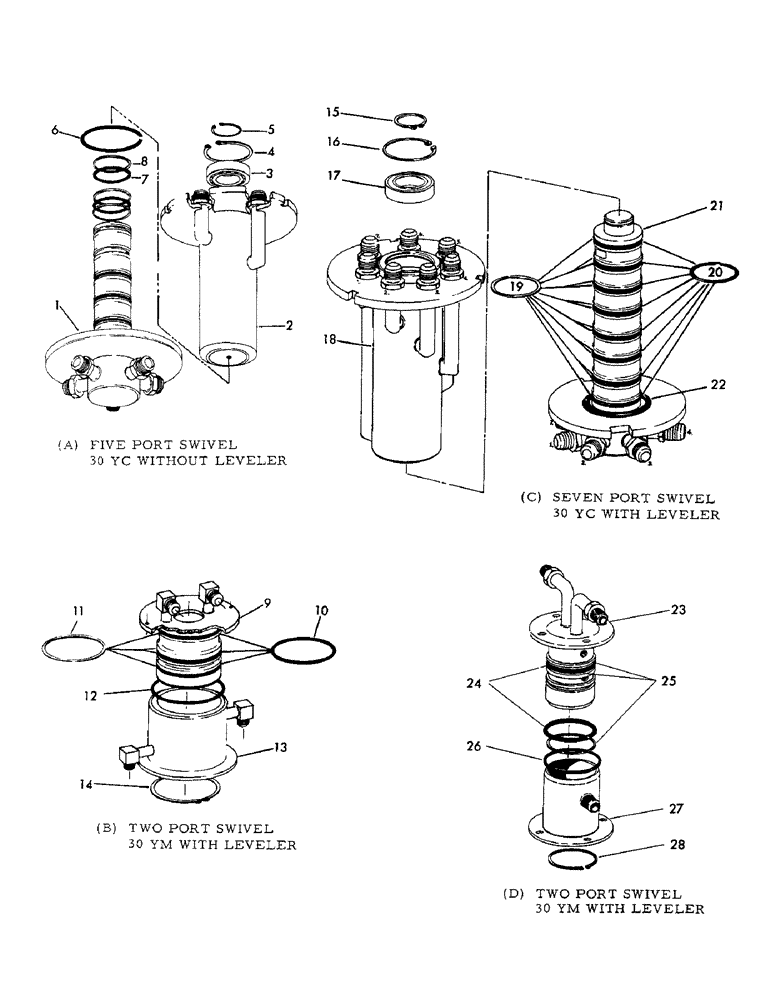

Запчасти Case 30YC (056) - HYDRAULIC SWIVELS (07) - HYDRAULIC SYSTEM

a

52375

SUPPORT

5 PORT SWIVEL, (See Figure 087) for hydraulics, 30YC w/o leveler, 30YM w/leveler and outriggers

1шт.

b

33629

SHAFT SEAL

2 PORT SWIVEL, (Used on later units) See Figure 090 for hydraulics, 30YM w/leveler

1шт.

c

52748M1

7 PORT SWIVEL, See Figures 089 & 092 for hydraulics, 30YC w/leveler

1шт.

d

2 PORT SWIVEL (Used on earlier units) when reordering swivel, Order item (B) 33629 & lines from swivel to valve. See Figure 090 for hydraulics, 30YM w/leveler

1шт.

1

32910

SHAFT, swivel

1шт.

2

32913

CLIP

HOUSING, swivel

1шт.

3

62835

BEARING

1шт.

4

62213

RING, housing snap

1шт.

5

62717

RING, shaft snap

1шт.

6

62829

"O" RING, 2-5/8 ID x 2-7/8 OD

1шт.

7

6314

O-RING

"O" RING, 1-47/64 ID x 2 OD

6шт.

8

65099

WASHER, back up

10шт.

9

202812

CAP

SHAFT, swivel

1шт.

10

6324

"O" RING, 2-63/64 ID x 3-1/4 OD

3шт.

*11

6853

CHAIN (AG)

WASHER, back up

4шт.

12

6705

MANIFOLD

"O" RING, 3-15/32 ID x 3-7/8 OD

1шт.

13

33628

HOUSING, swivel

1шт.

14

15408

INSTRUCTION

RING, retaining

1шт.

15

62721

RING, shaft snap

1шт.

16

62214

RING, housing snap

1шт.

17

64033

BEARING

1шт.

18

33367

HOUSING, swivel

1шт.

19

6847

WASHER, back up

14шт.

20

6318

O-RING

"O" RING - 2-15/64 ID x 2-1/2 OD

8шт.

21

33364

SHAFT, swivel

1шт.

22

64032

STUD

"O" RING, 3-1/64 ID x 3-41/64 OD

1шт.

23

202451

SHAFT, swivel

1шт.

24

5811

O-RING

"O" RING, 1-15/64 ID x 1-1/2 OD

3шт.

25

6916

HYDRAULIC VALVE

WASHER, back up

4шт.

26

6691

"O" RING, 1-23/32 ID x 2-1/8 OD

1шт.

27

202450

HOUSING

1шт.

28

62716

RING, retaining

1шт.
