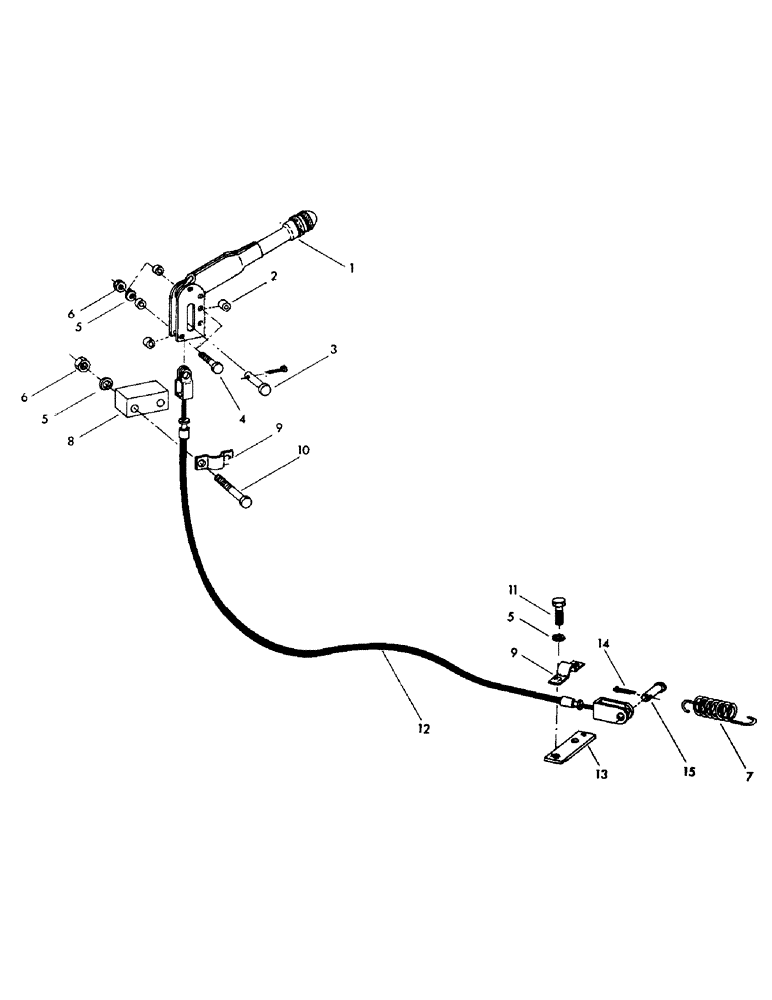

Запчасти Case 30YC (053) - SWING BRAKE CONTROL (07) - HYDRAULIC SYSTEM

1

26639

LEVER, hand brake (Includes item 3 & 2 of item 2)

1шт.

2

48851

SPACER, hand brake (2 used w/brake lever, & 2 used to space brake lever from mounting)

4шт.

3

NLS

NO LONGER SERVICED

PIN, clevis 5/16 x 1-1/4

1шт.

4611

PIN, SPLIT (COTTER)

COTTER PIN - 3/32 x 3/4

1шт.

4

2408

BOLT

CPSW, 3/8 x 2-3/4 NC Gr 5

2шт.

5

4397

LOCKWASHER, 3/8

6шт.

6

4222

NUT, 3/8 NC

4шт.

7

202938

SPRING, valve return

1шт.

8

64927

SPACER

1шт.

9

48542

CLAMP

2шт.

10

2406

BEARING ASSY

CPSW, 3/8 x 2-1/4 NC Gr 5

2шт.

11

2400

LAMP

CPSW, 3/8 x 3/4 NC Gr 5

2шт.

12

33995

O-RING

CABLE, brake

1шт.

13

68977

SPACER

1шт.

14

4610

TOY

PIN, cotter 3/32 x 1/2

1шт.

15

10715

PIN, clevis 1/4 x 27/32

1шт.
