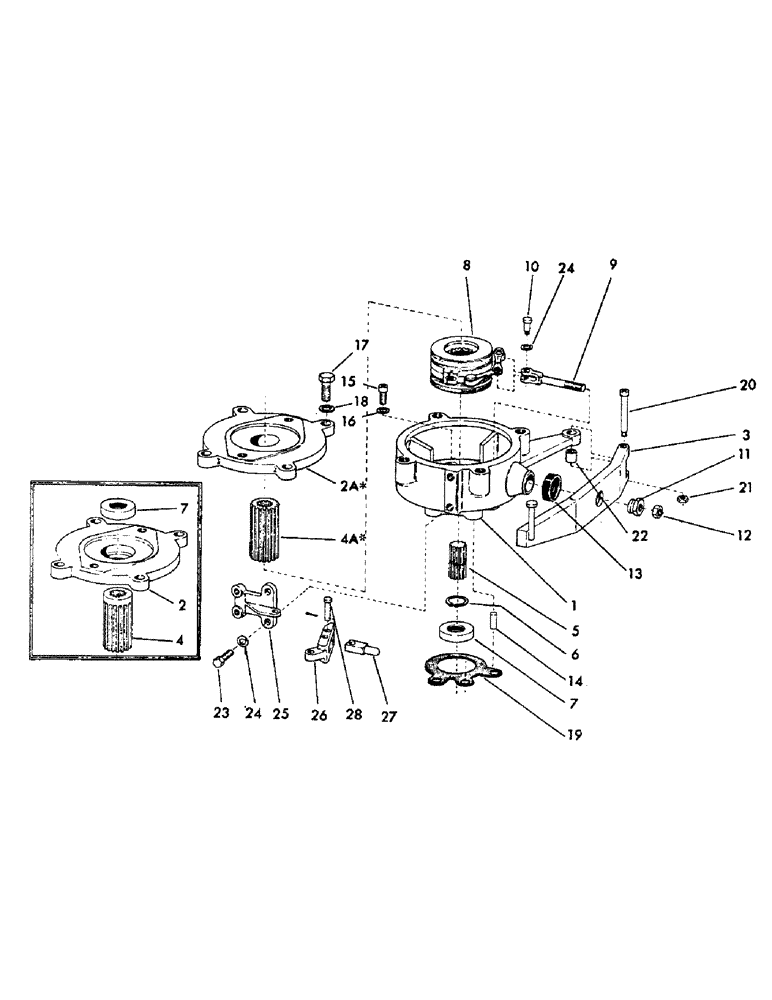

Запчасти Case 30YC (052) - SWING BRAKE (07) - HYDRAULIC SYSTEM

53223

BRAKE - complete - (Consists of items 1 thru 30 as shown)

1шт.

56457M1

BRAKE - complete - (Consists of items 1 thru 30 except as noted)

1шт.

1

53226

HOUSING, brake

1шт.

2

33991

COVER AND FLANGE, motor mounting - For 53223 brake - (With seal seat)

1шт.

2a

38006

COVER AND FLANGE, motor mounting - For 56457M1 brake - (With NO seal seat)

1шт.

After the motor is removed, check top cover for seal seated in around the splined coupling. If no seal is present, order replacement parts for items 2A, 4A, 7 and 8 as noted for 56457M1 brake.

1шт.

3

203304

PISTON ROD

LEVER, brake

1шт.

4

203306

COUPLING, splined - For 53223 brake

1шт.

4a

208430M1

COUPLING, splined - For 56457M1 brake

1шт.

After the motor is removed, check top cover for seal seated in around the splined coupling. If no seal is present, order replacement parts for items 2A, 4A, 7 and 8 as noted for 56457M1 brake.

1шт.

5

203305

PISTON ROD

STUD, splined

1шт.

6

60206

HEAD

RING, retaining

1шт.

7

64311

IDLER WHEEL

SEAL, oil - quantity of 2 required for 53223 brake and quantity of 1 required for 56457M1 brake

1шт.

After the motor is removed, check top cover for seal seated in around the splined coupling. If no seal is present, order replacement parts for items 2A, 4A, 7 and 8 as noted for 56457M1 brake.

1шт.

8

33992

BRAKE ASSEMBLY - For 53223 brake - Includes item 29

1шт.

After the motor is removed, check top cover for seal seated in around the splined coupling. If no seal is present, order replacement parts for items 2A, 4A, 7 and 8 as noted for 56457M1 brake.

1шт.

207618

BRAKE ASSEMBLY - For 56457M1 brake - Includes item 29

1шт.

9

64912

YOKE, plain

1шт.

10

66646

SCREW, shoulder

1шт.

11

64911

NUT, ball seat

1шт.

12

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

1шт.

13

64913

BOOT, dust

1шт.

14

64915

DOWEL

1шт.

15

3518

CPSW - 3/8" x 1" NC Gr 5

3шт.

16

103264

WASHER, seal - 3/8"

3шт.

17

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC Gr 5

4шт.

18

4399

WASHER

LOCKWASHER - 1/2"

4шт.

19

203309

GASKET

1шт.

20

64920

BAND

SCREW

1шт.

21

9088

SEAL KIT

NUT, lock - 5/16" NC

1шт.

22

64921

HYDRAULIC PUMP

BUSHING

1шт.

23

2400

LAMP

CPSW - 3/8" x 3/4" NC Gr 5

2шт.

24

4397

LOCKWASHER - 3/8"

2шт.

25

203957

BRACKET, cable mounting

1шт.

26

203959

LEVER, cable

1шт.

27

64910

WASHER

PLUNGER, cable

1шт.

28

10717

FITTING

PIN, clevis - 1/4" x 1.101" grip length

2шт.

4610

TOY

PIN, cotter - 3/32" x 1/2" long

2шт.

29

68702M1

DISC, brake - (For 53223 brake)

1шт.

81615M1

DISC, brake - (For 56457M1 brake)

1шт.
