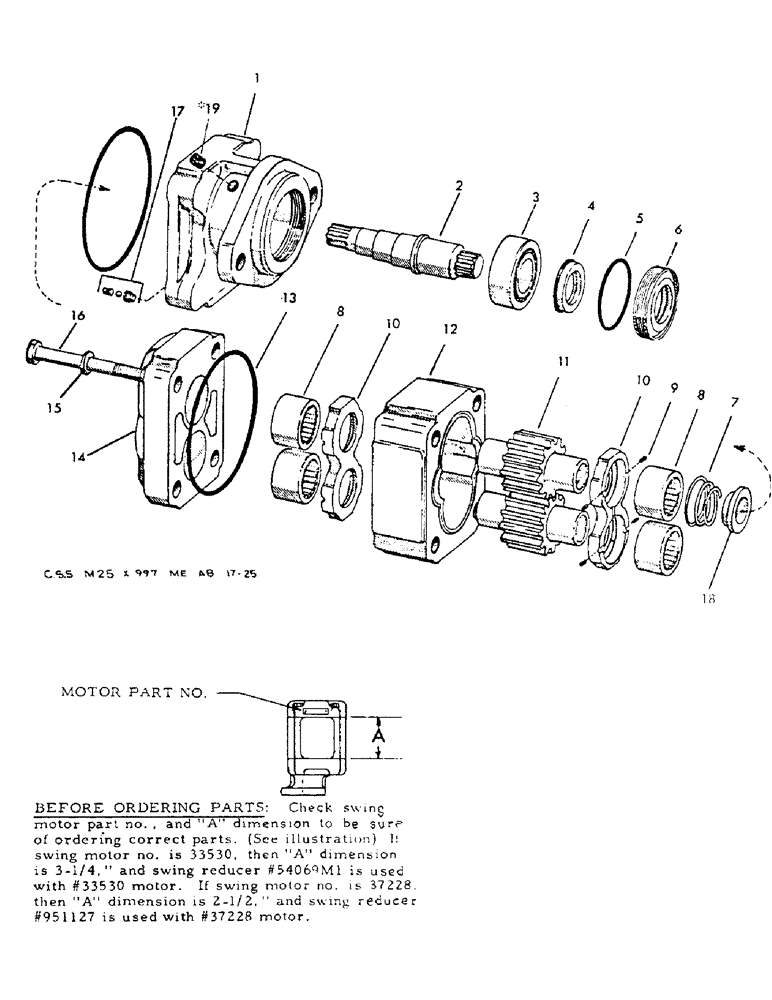

Запчасти Case 30YC (047) - TURNTABLE SWING MOTOR (1-3/4" GEARS) (07) - HYDRAULIC SYSTEM

37228M1

MOTOR, turntable (Consists of items 1-19) - For mounting cpsw, See motor on Figure 064

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

1

77722

COVER, shaft end

1шт.

2

64277

SHAFT

1шт.

3

63513

BEARING, roller-tapered

1шт.

4

70416

BRACKET

SEAL, high pressure

1шт.

5

6592

SHAFT

"O" RING - 2-15/64 ID x 2-1/2 OD

1шт.

6

70415

RING

retainer

1шт.

7

63518

RIVET

SPRING

1шт.

8

63517

BRACKET

BEARING, roller

4шт.

9

17682

SUPPORT

SEAL, pocket

12шт.

10

63522

PLATE, thrust

2шт.

11

72565

GEAR SET - 1-3/4"

1шт.

12

75508

SPARE PART

HOUSING, gear

1шт.

13

6333

HYDRAULIC CYLINDER

"O" RING, 4-7/64 ID x 4-3/8 OD

2шт.

14

61750

COVER, port end - w/2-3/4 OD tube ports

1шт.

15

18606

WASHER,0.62" ID x 1.47" OD x 0.11" Thk

4шт.

Change of part number, quantity, or description, at the last revision

1шт.

16

2516

BUSHING

CPSW, 5/8 x 5 NC

4шт.

17

61749

CHECK

1шт.

18

NLS

NO LONGER SERVICED

BUSHING, shaft

1шт.

19

7879

GASKET

PLUG, pipe - 1/4" NPT (Use in neck of item 1)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.
