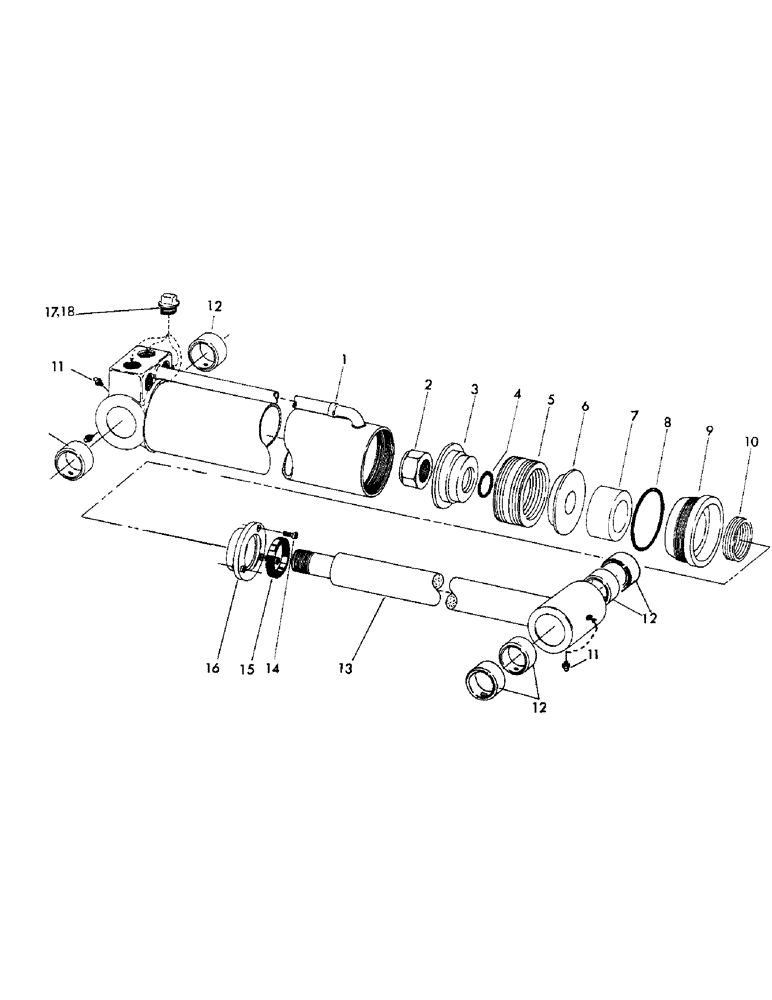

Запчасти Case 30YC (032A) - LIFT CYLINDER, 5-1/4" ID X 41.50" STROKE, (USED ON UNITS WITH SERIAL NUMBER 445-UP) (07) - HYDRAULIC SYSTEM

37866

SCREW

CYLINDER, lift - Used on units with serial number 445-up (Consists of items 1 thru 18)

1шт.

1

204672M1

TUBE, cylinder

1шт.

2

NLS

NO LONGER SERVICED

NUT - self-locking - 1-1/2" NF (17164)

1шт.

3

28263

PISTON, with "O" ring seat

1шт.

4

5815

PANEL

"O" RING, 1-31/64" ID x 1-3/4" OD

1шт.

5

204680

"V" RING, cup assembly

1шт.

6

28265

BALL

PISTON

1шт.

7

71600

HYD CONNECTOR

SPACER

1шт.

8

6022

BUZZER

"O" RING, 4-31/32" ID x 5-1/2" OD

1шт.

9

200832

HEAD, cylinder

1шт.

10

28515

BOLT

"V" RING

1шт.

11

12031

FITTING, grease

4шт.

12

202071

KIT

BUSHING

6шт.

13

207356

ROD, piston (Includes 4 of item 12)

1шт.

14

15515

CPSW, self locking - 3/8" x 1" NF

3шт.

15

22940

PISTON

SEAL, wiper

1шт.

16

200834

FLANGE, packing

1шт.

17

8983

SCRAPER

PLUG

2шт.

6065

O-RING

"O" RING - 59/64 ID x 1-5/32" OD

1шт.

18

63679

WASHER

PLUG, (With plug for pressure gauge)

2шт.
