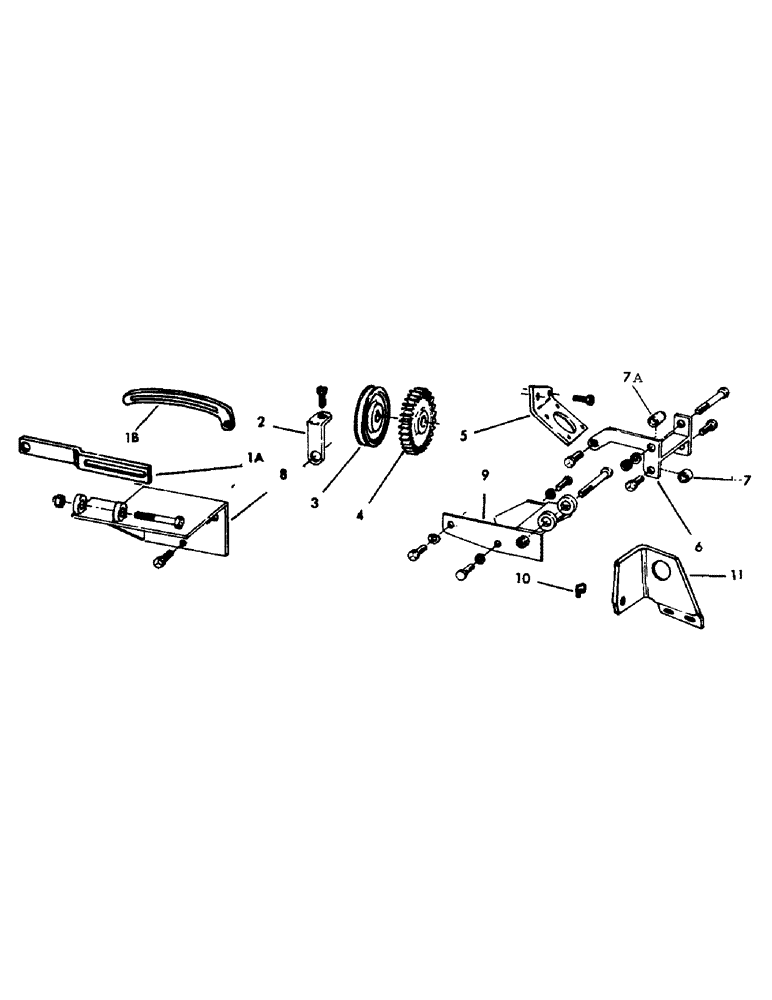

Запчасти Case 30YC (015) - ELECTRICAL MOUNT PARTS (ENGINE) (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1a
*207396
BRACKET, alternator adj (For IHC gas only)
1шт.
2431
FITTING
CPSW - 7/16 x 1-1/4 NC Gr 5, anchor hole
1шт.
7389
FLATWASHER - 7/16
1шт.
4398
LOCKWASHER - 7/16
1шт.
2376
CPSW - 5/16 x 1 NC Gr 5, adj. hole
1шт.
7385
FLATWASHER - 5/16
1шт.
4396
LOCKWASHER - 5/16
1шт.
1b
*200898M1
BRACKET, alternator adj (For GMC 3-53 diesel)
1шт.
2375
CPSW - 5/16 x 3/4 NC Gr 5
1шт.
7385
FLATWASHER - 5/16
1шт.
4396
LOCKWASHER - 5/16
1шт.
2
203190
BRACKET, horn mtg
1шт.
2352
BUSHING
CPSW - 1/4 x 1-1/4 NC Gr 5
1шт.
4220
TOOL
NUT - 1/4 NC
1шт.
3
62938
PULLEY, alternator belt (IHC gas and diesel)
1шт.
66878
TUBE
PULLEY, alternator belt (GMC diesel)
1шт.
4
32921
FAN, alternator (Used on IHC and GMC units)
1шт.
5
202295
SPARE PART
BRACKET, hourmeter
1шт.
6
201650
BRACKET, alternator mtg (For IHC gas)
1шт.
2402
LAMP
CPSW - 3/8 x 1-1/4 NC Gr 5
1шт.
2377
ARTICULATION
CPSW - 5/16 x 1-1/4 NC Gr 5
2шт.
2415
PLATE
CPSW - 3/8 x 4-1/2 NC Gr 5
1шт.
4222
NUT - 3/8 NC
1шт.
4397
LOCKWASHER - 3/8
1шт.
7
63269
BOLT,Hex, M4 x 16mm, Cl 8.8
SPACER
1шт.
7a
63270
SPACER
1шт.
8
*209833
BRACKET, alternator mtg (For GMC diesel)
1шт.
2401
LAMP
CPSW - 3/8 x 1 NC Gr 5
3шт.
2411
BEARING,1.188" ID
CPSW - 3/8 x 3-1/2 NC Gr 5
1шт.
9033
BATTERY BOX
NUT - 3/8 NC
1шт.
4397
LOCKWASHER - 3/8
1шт.
9
204668
BRACKET, alternator mtg (For IHC diesel)
1шт.
2402
LAMP
CPSW - 3/8 x 1-1/4 NC Gr 5
2шт.
2376
CPSW - 5/16 x 1 NC Gr 5
1шт.
2511
FLEXIBLE HOSE
CPSW - 3/8 x 3-3/4
1шт.
4222
NUT - 3/8 NC
1шт.
4397
LOCKWASHER - 3/8
1шт.
10
64612
SHIM,0.012" Thk
0.12" Thk, Boot, Rubber, Alternator (Used on battery post of alternator)
1шт.
11
36417
BRACKET, lift
1шт.
2377
ARTICULATION
CPSW - 5/16 x 1-1/4 NC Gr 5
1шт.
4396
LOCKWASHER - 5/16
1шт.
12
NLS
NO LONGER SERVICED
CLAMP, wire harness, 1/2 ID plastic coated
1шт.
2400
LAMP
CPSW - 3/8 x 3/4 NC Gr 5
1шт.
4397
LOCKWASHER - 3/8 (Not illustrated)
1шт.
Выбрано товаров: 44
