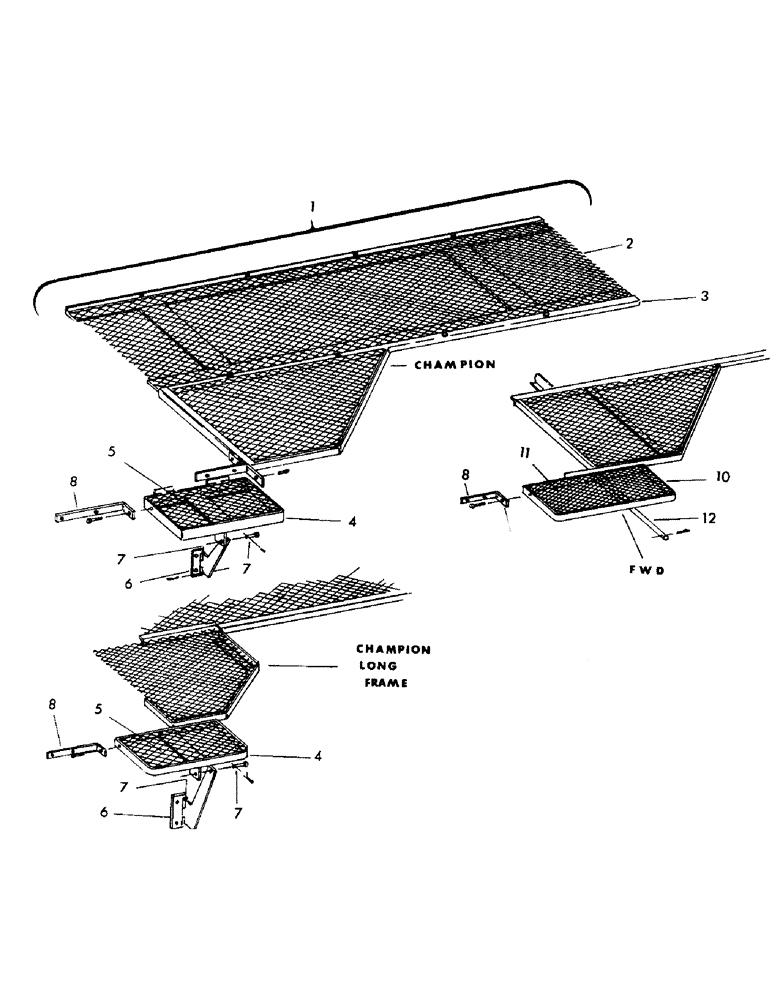

Запчасти Case 30YC (102) - STEP AND SAFETY WALKS FOR CARRIERS (05) - UPPERSTRUCTURE CHASSIS

1a

951125

WALK, complete, for FWD truck w/remote control cutout (Includes items 2A & 3A)

1шт.

b

951091

WALK, complete, For FWD truck less remote control cutout (Includes items 2B & 3B)

1шт.

c

951152

WALK, complete, For CHAMPION truck w/long frame (Includes items 2C & 3C)

1шт.

d

951120

WALK, complete, For CHAMPION truck w/short frame (Includes items 2D & 3D)

1шт.

2a

54227

NUT

GRATING, expanded metal - For item 1A

1шт.

b

53353

GRATING, expanded metal - For item 1B

1шт.

c

55242

GRATING, expanded metal - For item 1C

1шт.

d

54475

DRIVEN SPROCKET

GRATING, expanded metal - For item 1D

1шт.

3a

54228

GUIDE

FRAME, walk - For item 1A

1шт.

2404

LAMP

CPSW - 3/8 x 1-3/4 NC Gr 5

16шт.

4222

NUT - 3/8 x 1-3/4 NC

16шт.

4398

LOCKWASHER - 3/8

16шт.

b

53352

FRAME, walk - For item 1B

1шт.

2404

LAMP

CPSW - 3/8 x 1-3/4 NC Gr 5

17шт.

4222

NUT - 3/8 x 1-3/4 NC

17шт.

4398

LOCKWASHER - 3/8

17шт.

c

55328

FRAME, walk - For item 1C

1шт.

2404

LAMP

CPSW - 3/8 x 1-3/4 NC Gr 5

19шт.

4222

NUT - 3/8 x 1-3/4 NC

19шт.

4398

LOCKWASHER - 3/8

1шт.

d

54476

KNIFE

FRAME, walk - For item 1D

1шт.

2404

LAMP

CPSW - 3/8 x 1-3/4 NC Gr 5

16шт.

4222

NUT - 3/8 x 1-3/4 NC

16шт.

4398

LOCKWASHER - 3/8

1шт.

4

36273

STEP ITEMS 4 THRU 8 ARE FOR BOTH CHAMPION SAFETY WALKS

1шт.

5

205624

GRATING, expanded metal ITEMS 4 THRU 8 ARE FOR BOTH CHAMPION SAFETY WALKS

1шт.

6

205615

INTERNAL EXCHANGE UN

HINGE, swing ITEMS 4 THRU 8 ARE FOR BOTH CHAMPION SAFETY WALKS

1шт.

7

10787

PIN, clevis 3/8 x 3-49/64 ITEMS 4 THRU 8 ARE FOR BOTH CHAMPION SAFETY WALKS

2шт.

49364

SPACER

COTTER PIN ITEMS 4 THRU 8 ARE FOR BOTH CHAMPION SAFETY WALKS

1шт.

8

65055

HINGE, step ITEMS 4 THRU 8 ARE FOR BOTH CHAMPION SAFETY WALKS

1шт.

10

34055

STEP ITEMS 10 THRU 12 ARE FOR BOTH FWD SAFETY WALKS

1шт.

11

203433

WASHER

GRATING, expanded metal ITEMS 10 THRU 12 ARE FOR BOTH FWD SAFETY WALKS

1шт.

12

65054

PIPE ITEMS 10 THRU 12 ARE FOR BOTH FWD SAFETY WALKS

1шт.

203434

FRAME BRACE ITEMS 10 THRU 12 ARE FOR BOTH FWD SAFETY WALKS

1шт.

4646

COTTER PIN - 5/32 x 2-1/4 ITEMS 10 THRU 12 ARE FOR BOTH FWD SAFETY WALKS

1шт.
