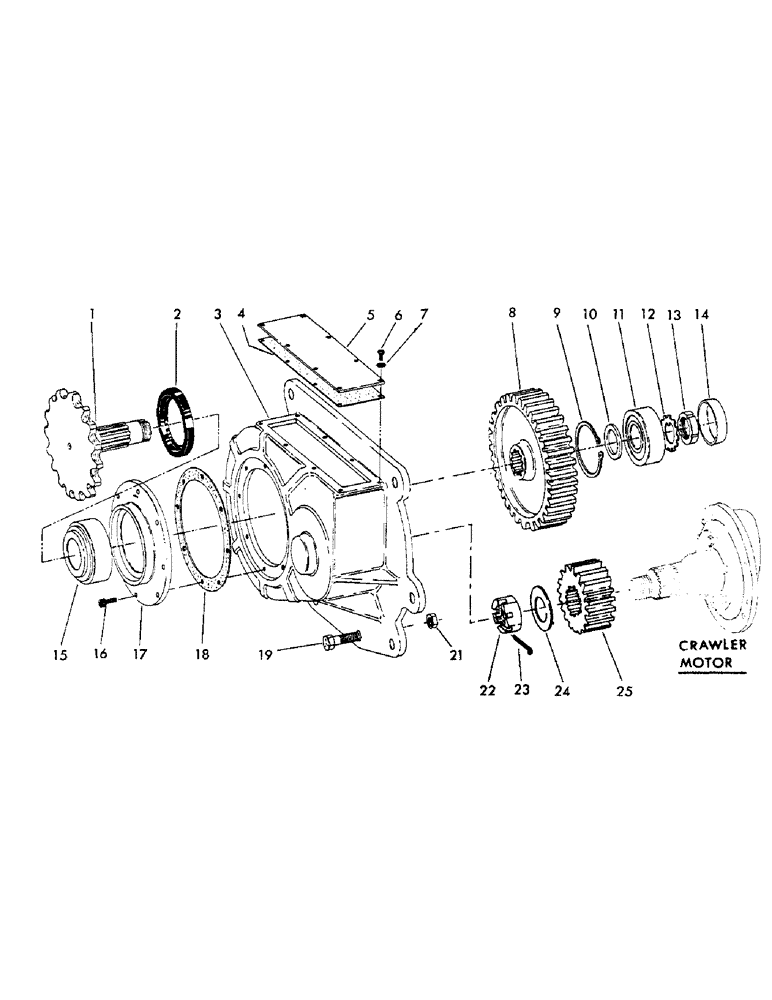

Запчасти Case 30YC (062) - CRAWLER DRIVE GEAR REDUCER, (RIGHT HAND SHOWN) (05) - UPPERSTRUCTURE CHASSIS

NLS

NO LONGER SERVICED

REDUCER, crawler drive - RH (Consists of items 1-21)

1шт.

37063

REDUCER, crawler drive - LH (Consists of items 1-21)

1шт.

1

33431M1

SHAFT, 14 tooth pinion (With mud reliefs)

1шт.

2

64203

SEAL

1шт.

3

202502

RING

CASE, gear - RH

1шт.

202503

BODY

CASE, gear - LH

1шт.

4

201108

GASKET

1шт.

5

201107

COVER

1шт.

6

7498

SCREW, self tapping - 1/4" x 3/4" NC

8шт.

7

4395

WASHER

LOCKWASHER, 1/4"

8шт.

8

33430

PAD

GEAR, 29 tooth

1шт.

9

64202

RING, snap

1шт.

10

64198

WASHER

1шт.

11

64200

ANGLE

BEARING - (Timken #30310B)

1шт.

12

201121

WASHER

1шт.

13

201120

NUT

1шт.

14

201122

RETAINER

1шт.

15

64199

BEARING - (Timken #32312)

1шт.

16

64201

BOLT, 5/8" diameter head (Metric thread) - Used on some earlier units

8шт.

3516

PLOW BOLT

BOLT, 1/2" diameter head - 3/8" x 3/4" NC (American thread)

8шт.

17

33432

CASING

1шт.

18

76607

GASKET

1шт.

19

2547

CYLINDER END CAP

CPSW, 3/4" x 2-1/2" NC Gr 5

14шт.

21

4227

TOY

NUT, 3/4" NC

14шт.

22

63355

NUT, castle (Metric thread) CRAWLER MOTOR PINION & HARDWARE

1шт.

23

4674

PIN, cotter 1/4" x 2" CRAWLER MOTOR PINION & HARDWARE

1шт.

24

201464

WASHER, flat CRAWLER MOTOR PINION & HARDWARE

1шт.

25

201052

GEAR, motor pinion CRAWLER & HARDWARE

1шт.
