Запчасти Case 30YC (028) - CAB AND CANOPY GROUP (05) - UPPERSTRUCTURE CHASSIS

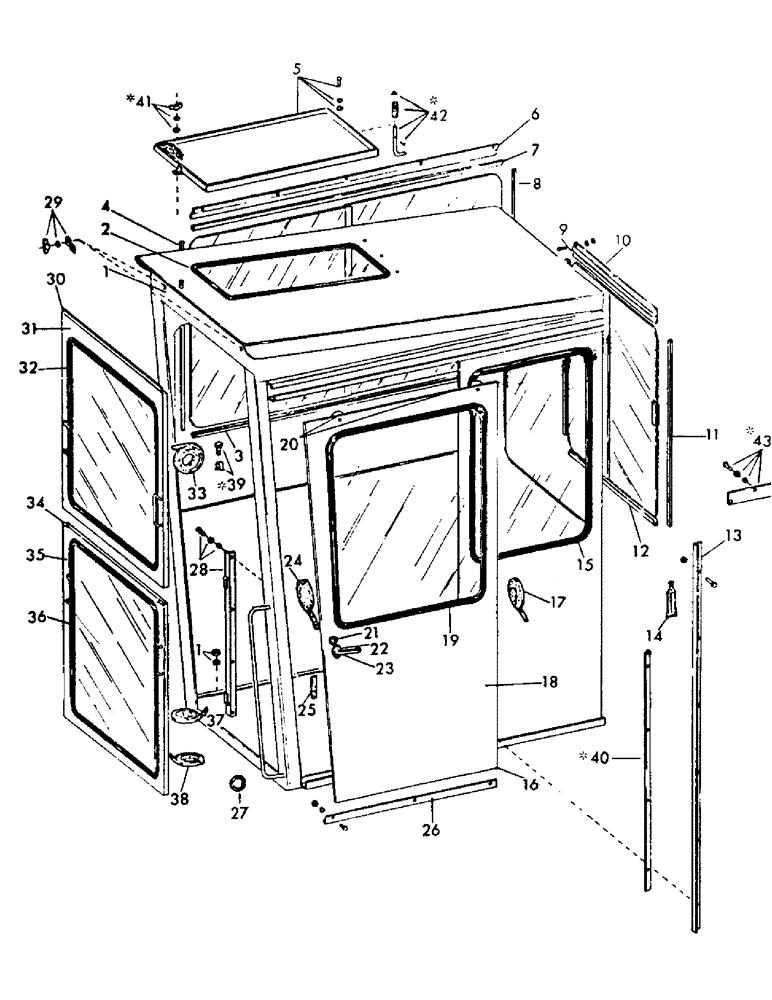

Схема запчастей Case 30YC - (028) - CAB AND CANOPY GROUP (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

951210

CANOPY, complete (Consists of Refs. 1 thru 8, 13, 15 and 26)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

951211

CAB, complete (Consists of Refs. 1 thru 43)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

1

951279

CAB, weldment

1шт.

4224

NUT - 1/2" NC

8шт.

Change of part number, quantity, or description, at the last revision

1шт.

4399

WASHER

flat - 1/2"

8шт.

Change of part number, quantity, or description, at the last revision

1шт.

2

75829

SPARE PART

MOLDING, window - 74"

1шт.

75830

SPARE PART

SEAL, filler - 74"

1шт.

3

79219

RUNNER, glass - 44"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

79220

SLIDE, plastic window - 44" (Bulk) 2 required

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

4

79219

RUNNER, glass - 26" (Bulk)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

5

38117

GUARD

1шт.

2375

CPSW - 5/16" x 3/4" NC Grade 5

3шт.

Change of part number, quantity, or description, at the last revision

1шт.

4396

LOCKWASHER - 5/16"

3шт.

Change of part number, quantity, or description, at the last revision

1шт.

4221

WASHER,3/4", SAE

NUT - 5/16" NC

3шт.

6

207734

SEALING RING COLLAR

ANGLE, window retainer

1шт.

14519

CUP

SCREW, round head - 5/16" x 5/8" NC

5шт.

Change of part number, quantity, or description, at the last revision

1шт.

7381

WASHER, flat - 5/16"

5шт.

Change of part number, quantity, or description, at the last revision

1шт.

4396

LOCKWASHER - 5/16"

5шт.

17266

NUT - 5/16"

5шт.

Change of part number, quantity, or description, at the last revision

1шт.

7

79219

RUNNER, glass - 46" (Bulk)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

8

79219

RUNNER, glass - 26" (Bulk)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

9

79219

RUNNER, glass - 29" (Bulk)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

10

207731

ANGLE, rear window retainer

1шт.

14519

CUP

SCREW, round head - 5/16" x 5/8" NC

3шт.

Change of part number, quantity, or description, at the last revision

1шт.

7381

WASHER, flat - 5/16"

3шт.

Change of part number, quantity, or description, at the last revision

1шт.

4396

LOCKWASHER - 5/16"

3шт.

17266

NUT - 5/16" NC

3шт.

Change of part number, quantity, or description, at the last revision

1шт.

11

79219

RUNNER, glass - 19" (Bulk)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

12

79219

RUNNER, glass - 29" (Bulk)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

13

38119

SCREW,Hex, 1/4" - 20 x 2 1/2", W/ Lok Thd

STOP, door

1шт.

14534

BLEEDER

SCREW, round head - 5/16" x 3/4" NC

6шт.

Change of part number, quantity, or description, at the last revision

1шт.

14546

TOP

SCREW, round head - 5/16" x 7/8" NC

3шт.

Change of part number, quantity, or description, at the last revision

1шт.

7381

WASHER, flat - 5/16"

6шт.

Change of part number, quantity, or description, at the last revision

1шт.

4396

LOCKWASHER - 5/16"

9шт.

Change of part number, quantity, or description, at the last revision

1шт.

17266

NUT - 5/16" NC

9шт.

Change of part number, quantity, or description, at the last revision

1шт.

14

75839

SPARE PART

ADHESIVE

1шт.

15

75829

SPARE PART

MOLDING, window - 78"

1шт.

75830

SPARE PART

SEAL, filler - 78"

1шт.

16

38111

DOOR, complete (Consists of Refs. 17 thru 26)

1шт.

17

75838

SPARE PART

SEAL, weather - 54"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

18

38112

DOOR

1шт.

19

75829

SPARE PART

MOLDING, window - 96"

1шт.

75830

SPARE PART

SEAL, filler - 96"

1шт.

20

75835

HOUSING

ROLLER

2шт.

75834

VALVE

SPACER

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

2353

CPSW - 1/4" x 1-1/2" NC Gr 5

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

7378

WASHER, flat - 1/4"

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

17082

NUT, stop

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

17082

NUT, stop

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

79134

KEEPER

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

21

75825

PISTON PIN

LOCK, door

1шт.

14493

SCREW, round head - #10 x 1/2" long

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

22

75826

BUSHING

LATCH, door

1шт.

2001

CATALOG

CPSW - 1/4" x 3/4" NC Grade 5

4шт.

Change of part number, quantity, or description, at the last revision

1шт.

23

75827

LEVER

HANDLE, outside

1шт.

14493

SCREW, round head - #10 x 1/2" long

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

75828

SPARE PART

HANDLE, inside

1шт.

15003

HARNESS

SCREW, oval head - #10 x 1/2" NF

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

75869

KIT

WASHER, external tooth lock

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

24

75838

SPARE PART

SEAL, weather - 54-1/2"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

25

79224

SEAL, weather - 3-1/2"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

26

207726

RETAINER, door

1шт.

14496

ROD

SCREW, thrust head - 1/4" x 1/2" NC

4шт.

Change of part number, quantity, or description, at the last revision

1шт.

4395

WASHER

LOCKWASHER - 1/4"

4шт.

Change of part number, quantity, or description, at the last revision

1шт.

17265

NUT - 1/4" NC

4шт.

Change of part number, quantity, or description, at the last revision

1шт.

27

77418

PLUG, button

1шт.

28

207729

RETAINER, windshield

1шт.

7640

ECU

SCREW, round head - #10 x 1/2" NC

5шт.

Change of part number, quantity, or description, at the last revision

1шт.

29

75836

RING GEAR

BRACKET, windshield clip

2шт.

4396

LOCKWASHER - 5/16"

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

79153

NUT, wing - 5/16" NC

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

30

38115

WINDSHIELD, upper - (Consists of Refs. 31 thru 33)

1шт.

31

38116

WASHER

FRAME, windshield

1шт.

32

75829

SPARE PART

MOLDING, window - 111"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

75830

SPARE PART

SEAL, filler - 111"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

33

75838

SPARE PART

SEAL, weather - 92"

1шт.

34

38113

SPROCKET

WINDSHIELD, lower - (Consists of Refs. 35 thru 38)

1шт.

35

38114

SHAFT

FRAME, windshield

1шт.

36

75829

SPARE PART

MOLDING, window - 111"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

75830

SPARE PART

SEAL, weather - 111"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

37

75838

SPARE PART

SEAL, weather - 28-3/4"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

38

75838

SPARE PART

SEAL, weather - 29-5/16"

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

39

79223

STOP, window

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

7582

SPROCKET ASSY.

SCREW, pan head - #10 x 3/4" NC

2шт.

40

80412

BAR, stiffener

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

41

77941

NUT, wing - 3/8" NC

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

7385

WASHER, flat - 3/8"

1шт.

4397

LOCKWASHER - 3/8"

1шт.

42

71478

LEVER

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

47858

FLANGE

SPRING

1шт.

7387

LOCTITE

WASHER, flat - 3/8"

1шт.

5283

SEAL KIT

PIN, roll - 3/32" x 3/4" long

1шт.

43

79591

STRIP - (Covers hydraulic line hole in right rear side of cab)

1шт.

Change of part number, quantity, or description, at the last revision

1шт.

14493

SCREW - #10 x 1/2" NC

3шт.

7340

WASHER, flat - 1/2"

3шт.

17263

NUT - #10 NC

3шт.
