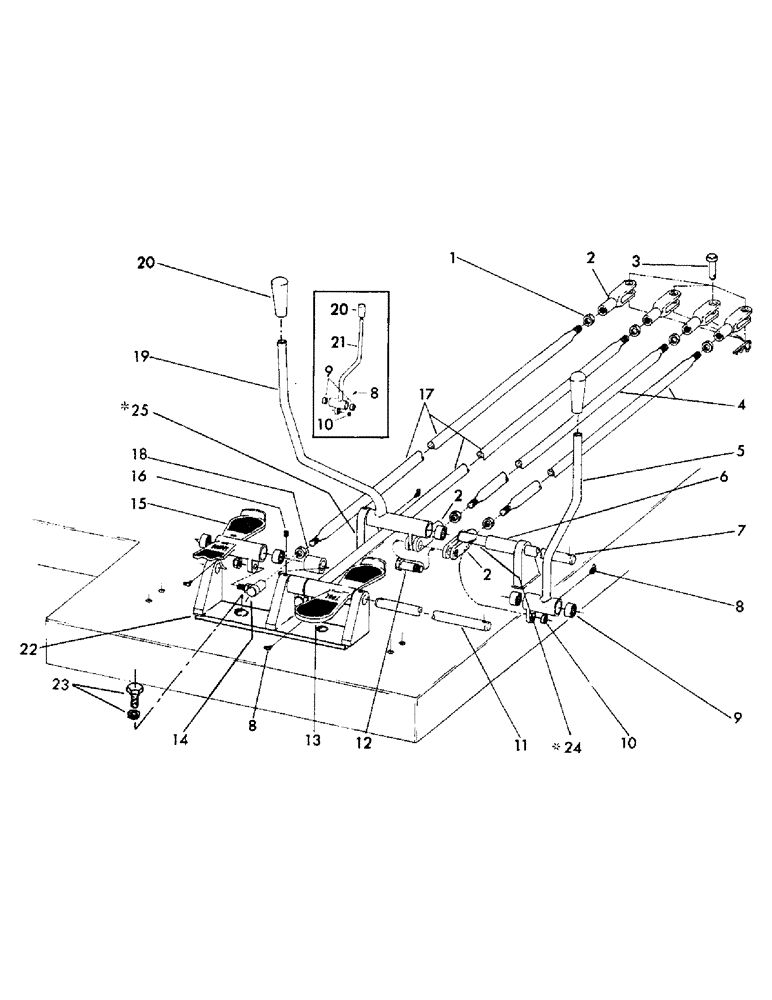

Запчасти Case 30YC (024) - CONTROL LINKAGE - BOOM - SWING - AUXILIARY (05) - UPPERSTRUCTURE CHASSIS

1

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

8шт.

2

12514

CIRCLIP

YOKE, (2 for auxiliary control)

8шт.

3

87016624

CLEVIS PIN,3/8" x 1 1/4"

- 3/8" x 1 1/4"

5шт.

4627

COTTER PIN

PIN, cotter

5шт.

4

201576

LINK, crowd, hoist and auxiliary

3шт.

5

201570M1

LEVER, hoist (Includes 1 of item 8)

1шт.

6

64465

SPACER, (Used on units without auxiliary lever)

1шт.

7

63196

SHAFT, lever - 3/4" diameter (Used on units with serial number 1 thru 159)

1шт.

64721

DISC

SHAFT, lever, - 3/4" diameter (Used on units with serial number 160 - up)

1шт.

8

49793

GUARD

FITTING, grease

4шт.

9

63168

BEARING, needle

10шт.

10

40815

ENGINE MOUNT

BEARING, needle

3шт.

11

63143

SHAFT, pedal (Carrier units only - crawler units see crawler controls)

1шт.

12

40816

BOLT, shoulder - 3/8" NF

3шт.

9014

NUT - 3/8" NF

3шт.

13

55012

PEDAL, tool

1шт.

14

26213

CLIP

JOINT, ball

2шт.

17105

NUT - 1/2" NF

2шт.

15

55011

PEDAL, swing

1шт.

16

14031

ADJUSTER

SCREW, set - 1/4" x 1/4" NC

7шт.

17

201577

SPARE PART

LINK, pedal

2шт.

18

63174

CHAIN

SPACER, pedal - 1-1/4" x 5/16" wide

1шт.

19

201572M1

LEVER, crowd (Includes 1 of item 8)

1шт.

20

63411

KNOTTER

GRIP, handle

3шт.

21

202776M1

LEVER, auxiliary (Includes 1 of item 8)

1шт.

22

205433

BRACKET, pedal support

1шт.

23

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC Gr 5

2шт.

4399

WASHER

LOCKWASHER - 1/2"

2шт.

*24

71862

SHAFT

1шт.

*25

207502

BRACKET

1шт.
