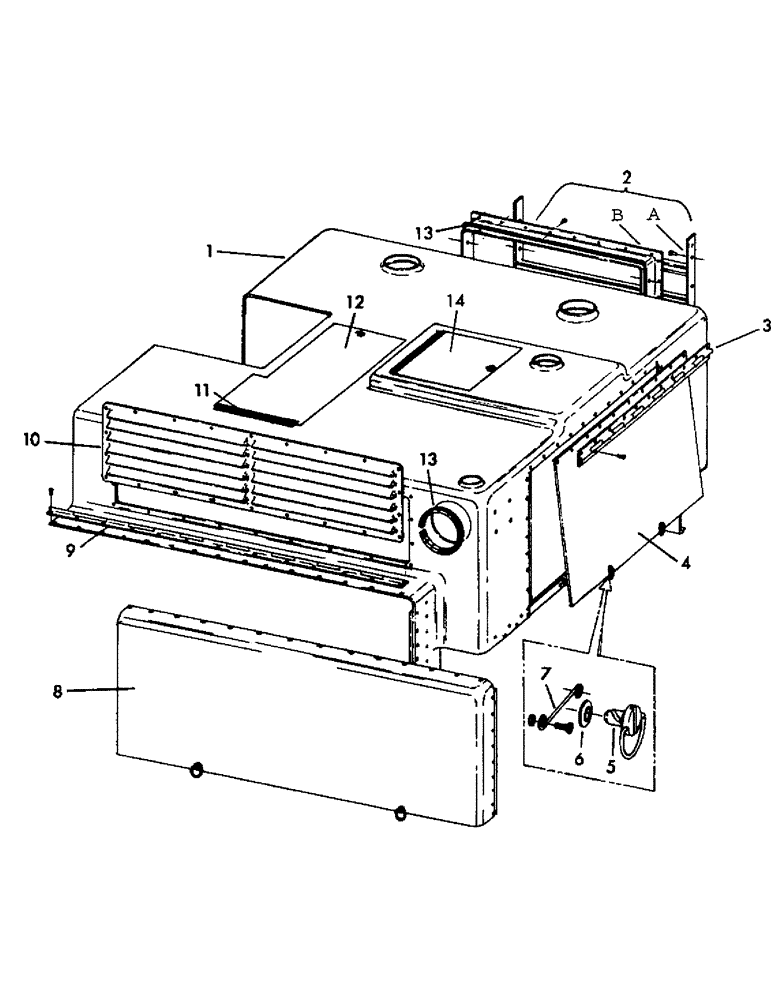

Запчасти Case 30YC (021) - SHROUDING FOR GMC ENGINE (05) - UPPERSTRUCTURE CHASSIS

*1

950799

SHROUDING, engine GMC diesel

1шт.

2

204498

SPARE PART

GRILL, complete (Includes items A & B)

1шт.

a

405244

BAR, grill

1шт.

b

405245

HOUSING, grill

1шт.

14529

ELEMENT

MACHINE SCREW - #10 x 3/4

8шт.

17263

NUT - #10

8шт.

3

202361

BRAKE LINE

HINGE, hood

1шт.

14525

ELEMENT

MACHINE SCREW - #6 x 3/4

14шт.

17261

FUNNEL

NUT - #6

14шт.

7607

BOLT

RIVET

14шт.

4

34842

DOOR, rear

1шт.

5

27326

FASTENER, stud

6шт.

6

48578

FITTING

GROMMET

6шт.

7

63635

ANGLE

RETAINER

6шт.

8

34841

DOOR, side

1шт.

9

202362

BRAKE LINE

HINGE, door

1шт.

14525

ELEMENT

MACHINE SCREW - #6 x 3/4

11шт.

17261

FUNNEL

NUT - #6

11шт.

7607

BOLT

RIVET

11шт.

*10

34041M1

LOUVER, engine cover

1шт.

14525

ELEMENT

MACHINE SCREW - #6 x 3/4

22шт.

17261

FUNNEL

NUT - #6

22шт.

*11

202361

BRAKE LINE

HINGE, cover

1шт.

14525

ELEMENT

MACHINE SCREW - #6 x 3/4 NC

11шт.

17261

FUNNEL

NUT - #6

11шт.

7607

BOLT

RIVET

11шт.

*12

205742

SHIM

COVER, battery

1шт.

*13

67728

CHANNEL, rubber (Order number of inches required)

1шт.

14

73614

WASHER

COVER, engine access

1шт.

14509

MACHINE SCREW - #5

6шт.

17260

LEVER

NUT - #5

6шт.
