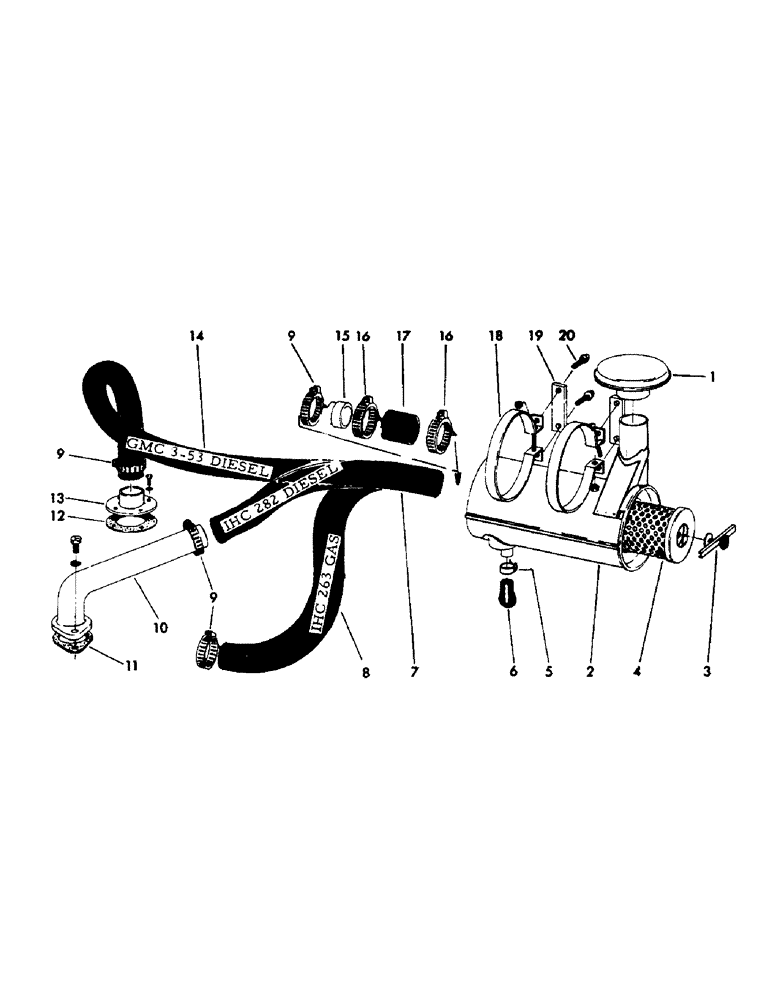

Запчасти Case 30YC (012) - AIR CLEANER AND MOUNTING PARTS (01) - ENGINE

1

33293

CAP, weather

1шт.

Used with IHC engines only.

1шт.

33666

PROFILE

CAP, weather

1шт.

Used with GMC engines only.

1шт.

2

52672

CLEANER, air (Includes Refs. 3 thru 6)

1шт.

Used with IHC engines only.

1шт.

33667

WINDSHIELD

CLEANER, air (Includes Refs. 3 thru 6 & 18)

1шт.

Used with GMC engines only.

1шт.

3

63737

RETAINER, cleaner

1шт.

Used with IHC engines only.

1шт.

71350

SEAL PROTECTION

RETAINER, cleaner

1шт.

Used with GMC engines only.

1шт.

4

63738

CARTRIDGE, cleaner

1шт.

Used with IHC engines only.

1шт.

71405

GASKET

CARTRIDGE, cleaner

1шт.

Used with GMC engines only.

1шт.

5

63740

CLAMP

1шт.

6

63739

BAG, dust

1шт.

7

64186

HALF-PULLEY

HOSE, intake IHC diesel engine, 11"

1шт.

8

64186

HALF-PULLEY

HOSE, intake IHC gas engine, 28"

1шт.

9

10878

CLAMP, hose (2 per hose)

2шт.

10

207413

PIPE, intake IHC diesel engine

1шт.

11

64150

LOCTITE

GASKET, intake IHC diesel engine

1шт.

12

69424

GASKET, intake GMC diesel engine

1шт.

13

204066

CONE

FLANGE, intake GMC diesel engine

1шт.

14

66853

CONNECTING LINK

HOSE, intake GMC diesel engine, 38"

1шт.

15

64353

PIN

ADAPTER, air cleaner

1шт.

16

10880

CLAMP, hose

2шт.

17

64757

HOSE, 2-1/2" ID x 2" long

2шт.

Change of part number, quantity, or description, at the last revision

1шт.

18

201885

BRACKETS, slip ring

2шт.

Used with IHC engines only.

1шт.

64722

THRUST BEARING

BRACKETS, slip ring

2шт.

Used with GMC engines only.

1шт.

19

63569

SPACER, air cleaner

2шт.

Used with IHC engines only.

1шт.

20

2067

REDUCER

CPSW, 3/8 x 1-1/4 NC Grade 5

4шт.

Used with IHC and GMC engines.

1шт.

2011

LOCK WASHER,#8

FLATWASHER, 3/8"

4шт.

9033

BATTERY BOX

SELF-LOCKING NUT, 3/8" NC

4шт.
