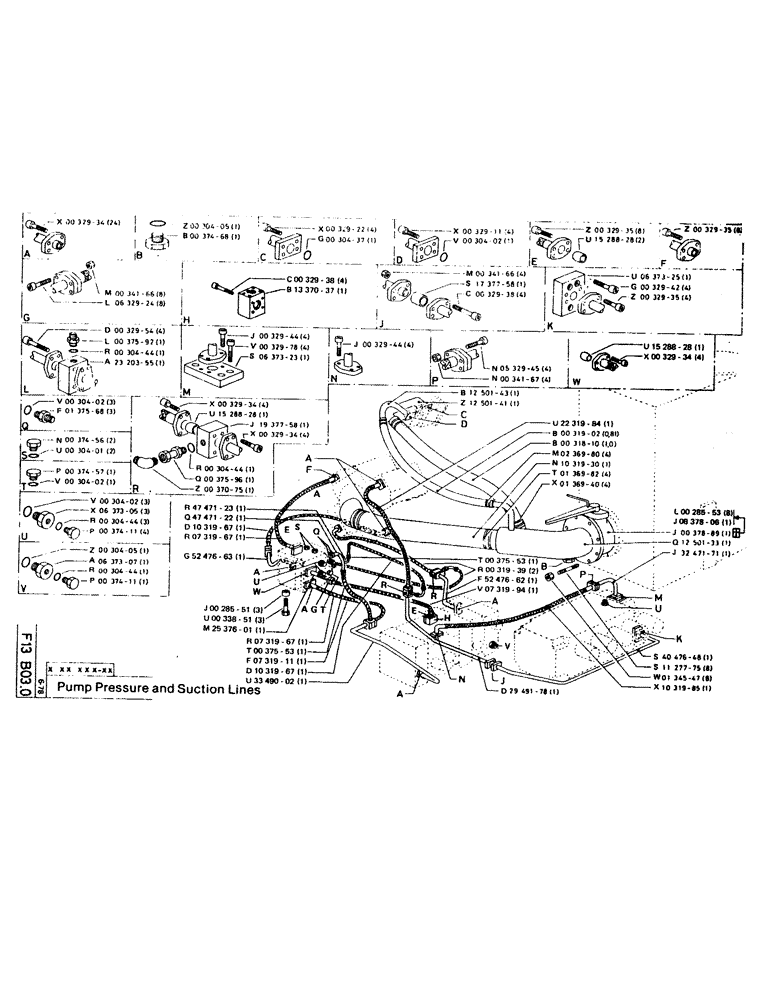

Запчасти Case 220CKS (39) - PUMP PRESSURE AND SUCTION LINES (07) - HYDRAULIC SYSTEM

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P37468

PLUG

PLUG

1шт.

P32922

SCREW

4шт.

P30437

O-RING

1шт.

P32911

SCREW

SCREW/BOLT, M6 x 20

4шт.

P30402

O-RING

1шт.

P32935

SCREW

SCREW/BOLT, M10 x 40

8шт.

P1528828

JUNCTION

JUNCTION

2шт.

P32935

SCREW

SCREW/BOLT, M10 x 40

8шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

L632924

SCREW

SCREW/BOLT, M10 x 55

8шт.

P32938

SCREW

SCREW/BOLT, M10 x 80

4шт.

P1337037

SHIN

SPARE PART BRACKET

1шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P1737758

JUNCTION

JUNCTION

1шт.

P32938

SCREW

SCREW/BOLT, M10 x 80

4шт.

P637325

RESTRICTOR

RESTRICTOR, DN34 x 27

1шт.

P32942

SCREW

SCREW/BOLT, M12 x 30

4шт.

P32935

SCREW

SCREW/BOLT, M10 x 40

4шт.

P32954

SCREW

4шт.

P37592

UNION

UNION

1шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

1шт.

P2320355

JUNCTION

SPARE PART JUNCTION

1шт.

P32944

SCREW

SCREW/BOLT, M12 x 40

4шт.

P32978

SCREW

SCREW/BOLT, M14 x 30

4шт.

P637323

RESTRICTOR

RESTRICTOR, DN42 x 34

1шт.

P32944

SCREW

SCREW/BOLT, M12 x 40

4шт.

P532945

SCREW

SCREW/BOLT, M12 x 65

4шт.

337475

NUT,M12, Cl 10

4шт.

P1528828

JUNCTION

JUNCTION

1шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P30402

O-RING

3шт.

P137568

UNION

UNION

3шт.

P37456

PLUG

PLUG

2шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2шт.

P37457

PLUG

PLUG

1шт.

P30402

O-RING

1шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P1528828

JUNCTION

JUNCTION

1шт.

P1937758

JUNCTION

1шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

1шт.

P37596

FITTING

CONNECTION

1шт.

P37075

ELBOW

ELBOW-CONNECTION

1шт.

P30402

O-RING

3шт.

P637305

RESTRICTOR

3шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

3шт.

P37411

PLUG

PLUG

4шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P637307

RESTRICTOR

RESTRICTOR, cyl x 13g

1шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

1шт.

P37411

PLUG

PLUG

1шт.

P4747123

PIPE

PIPE, 6 x 10

1шт.

P4747122

PIPE

PIPE, 6 x 10

1шт.

P1031967

HOSE

HOSE

1шт.

P731967

HOSE

HOSE

1шт.

P5247663

SPARE PART PIPE, 19 x 27

1шт.

P28551

WASHER

WASHER, 15 x 10 x 30

3шт.

P33851

SCREW

SCREW/BOLT, M14 x 35

3шт.

P2537601

PIPE

PIPE, 19 x 27

1шт.

P731967

HOSE

HOSE

1шт.

P37553

UNION

UNION

1шт.

P731911

HOSE

HOSE

1шт.

P1031967

HOSE

HOSE

1шт.

P3349002

PIPE

PIPE, 19 x 27

1шт.

P1250143

PIPE

PIPE, 20 x 27

1шт.

P1250141

PIPE

PIPE, 33 x 42

1шт.

P37553

UNION

UNION

1шт.

P31939

HOSE

HOSE

2шт.

P5247662

PIPE

PIPE, 19 x 27

1шт.

P731994

HOSE

HOSE

1шт.

P2949178

PIPE

PIPE, 19 x 27

1шт.

P2231984

HOSE

HOSE

1шт.

P31902

PIPE

PIPE

1шт.

P31810

HOSE, BULK

HOSE, METERS PIPE

1шт.

P236980

SPARE PART CLAMP COLLAR

4шт.

P1031930

LARGE HOSE

HOSE,LARGE HOSE

1шт.

P136982

COLLAR CLAMP

CLAMP COLLAR

4шт.

P136940

SPARE PART

4шт.

P28553

WASHER

WASHER, 17 x 10 x 30

8шт.

P837806

VANEUM GAUGE

VANE

1шт.

P37889

VANEUM GAUGE

VANE

1шт.

P1250133

MANIFOLD

SPARE PART COLLECTOR

1шт.

P3247171

PIPE

PIPE, 24 x 34

1шт.

P4047648

SPARE PART PIPE, 19 x 27

1шт.

P1127775

SPARE PART STUD, 16 x 2

8шт.

P134547

SAFETY NUT

SAFETY NUT

8шт.

P1031985

HOSE

HOSE

1шт.
