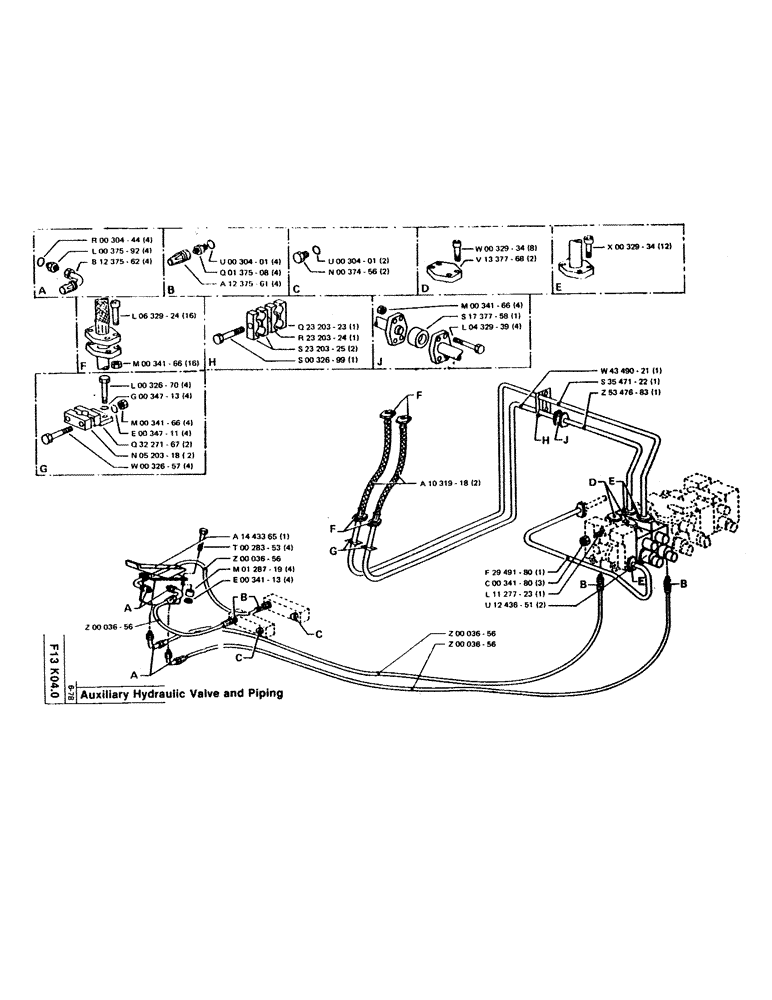

Запчасти Case 220CKS (38) - AUXILIARY HYDRAULIC VALVE AND PIPING (07) - HYDRAULIC SYSTEM

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

4шт.

P37592

UNION

UNION

4шт.

P1237562

END FITTING

END FITTING

4шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

4шт.

P137508

UNION

UNION

4шт.

P1237561

END FITTING

END FITTING

4шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2шт.

P37456

PLUG

PLUG

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

P1337768

BLANK-OFF PLUG

2шт.

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

12шт.

L632924

SCREW

SCREW/BOLT, M10 x 55

16шт.

100016

NUT,M10 x 1.5, Cl 8

16шт.

P2320323

SPARE PART SUPPORT

1шт.

P2320324

SPARE PART BRACKET, 33 x 42

1шт.

P2320325

SHIN

BRACKET, 20 x 27

2шт.

P32699

SCREW

1шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P1737758

JUNCTION

JUNCTION

1шт.

P432939

SCREW

4шт.

P32670

SCREW

SCREW/BOLT, M12 x 30

4шт.

P34713

WASHER

WASHER

4шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

P34711

WASHER

WASHER

4шт.

P3227167

SHIN

BRACKET, 20 x 27

2шт.

P520318

SHIN

BRACKET, 20 x 27

2шт.

P32657

SCREW

SCREW/BOLT, M10 x 60

4шт.

P4349021

SPARE PART PIPE, 19 x 27

1шт.

P3547122

SPARE PART PIPE, 19 x 27

1шт.

P5347683

SPARE PART PIPE, 19 x 27

1шт.

P1031918

HOSE

HOSE

2шт.

P1443365

BLOCK

BLOCK

1шт.

P28353

SCREW

SCREW/BOLT, M8 x 30

4шт.

P3656

PIPE

PIPE

1шт.

P128719

BUSHING

BUSHING

4шт.

P34113

NUT

NUT

4шт.

P3656

PIPE

PIPE

1шт.

P2949180

SPARE PART PIPE, 19 x 27

1шт.

825-1418

NUT,M18, Cl 8

NUT

3шт.

P1127723

THREADED ROD

ASSEMBLING ROD, M18 x 285

1шт.

P1243651

SHIN

BRACKET

2шт.

P3656

PIPE

PIPE

1шт.

P3656

PIPE

PIPE

1шт.
