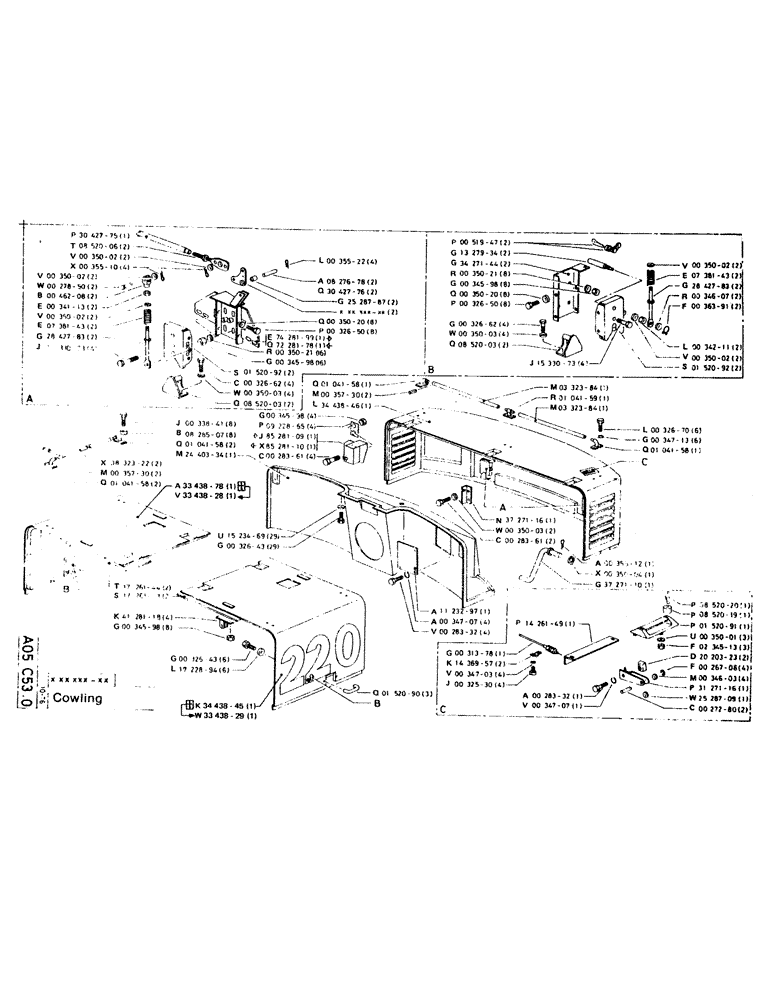

Запчасти Case 220CKS (07) - COWLING (05) - UPPERSTRUCTURE CHASSIS

P3042775

STEM

ROD

1шт.

P852006

SPARE PART END FITTING, M8 x 0.75

2шт.

P35002

WASHER

WASHER

2шт.

P35510

SPLIT PIN

SPLIT PIN, 2 x 20

4шт.

P35002

WASHER

WASHER

2шт.

P27850

PIN

2шт.

P46208

CLEVIS

2шт.

P34113

NUT

NUT

2шт.

P35002

WASHER

WASHER

2шт.

P738143

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P2842783

ROD

ROD

2шт.

P

ADAPTER

4шт.

P832322

SPARE PART GRAB RAIL, 15 x 21

2шт.

P35730

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 4 x 20

2шт.

P104158

END FITTING

END FITTING

2шт.

P1726144

SPARE PART REINFORCEMENT

2шт.

P17261

2шт.

P4128118

CLEVIS

FORK

4шт.

P34598

SAFETY NUT

SAFETY NUT

8шт.

P33841

SCREW

SCREW/BOLT, M12 x 35

8шт.

P828507

WASHER

WASHER, 13 x 7 x 25

8шт.

P104158

END FITTING

END FITTING

2шт.

P2440334

SPARE PART BOX

1шт.

P3343878

SHUTTER

FLAP

1шт.

P3343828

SHUTTER

FLAP

1шт.

P32643

SPARE PART SCREW/BOLT, M8 x 25 x 25

6шт.

P1722894

PLATE

PLATE

6шт.

P3443845

SHUTTER

FLAP

1шт.

P3343829

SHUTTER

FLAP

1шт.

P152092

LOCK ASSY

LOCK

2шт.

P32662

SCREW

SCREW/BOLT, M10 x 30 x 30

4шт.

P35003

WASHER

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P34598

SAFETY NUT

SAFETY NUT

4шт.

P922865

PLATE

PLATE

4шт.

P8528109

STIFFENER

REINFORCEMENT

1шт.

P8528110

STIFFENER

1шт.

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

P1523469

PLATE

PLATE

29шт.

P32643

SPARE PART SCREW/BOLT, M8 x 25 x 25

29шт.

P7428199

SUPPORT

SUPPORT

1шт.

P7228178

SUPPORT

SUPPORT

1шт.

P35021

WASHER

WASHER

16шт.

P34598

SAFETY NUT

SAFETY NUT

16шт.

P35522

SPLIT PIN

SPLIT PIN, 3 x 40

4шт.

P827678

SPARE PART PIN

2шт.

P3042776

SPARE PART CRANK

2шт.

P2528787

SPARE PART SELF LUB RING, 8 x 12 x 20

2шт.

P35020

WASHER

WASHER

8шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

P104158

END FITTING

END FITTING

1шт.

P35730

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 4 x 20

2шт.

P3443846

SPARE PART COVER

1шт.

P152090

HANDLE

HANDLE

3шт.

P51947

LOCK ASSY

LOCK

2шт.

P1327934

PIN

2шт.

P3427144

SUPPORT

SUPPORT

2шт.

P35021

WASHER

WASHER

8шт.

P34598

SAFETY NUT

SAFETY NUT

8шт.

P35020

WASHER

WASHER

8шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

P32662

SCREW

4шт.

P35003

WASHER

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P1123297

LARGE PLATE

PLATE, LARGE PLATE

1шт.

P34707

WASHER

WASHER

4шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

P31378

SPARE PART CABLE/ROPE

1шт.

P1436957

CLAMP

COLLAR

2шт.

P34703

WASHER

WASHER

4шт.

P32530

SCREW

SCREW/BOLT, M4 x 10

4шт.

P1533073

SPARE PART SCREW/BOLT, M8 x 1.25

4шт.

P332384

SPARE PART GRAB RAIL

1шт.

P104159

SUPPORT

SUPPORT

1шт.

P332384

SPARE PART GRAB RAIL

1шт.

P3727116

ANGLE IRON

1шт.

P35003

WASHER

WASHER

2шт.

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

P1426149

SPARE PART

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

P34707

WASHER

1шт.

P35002

WASHER

WASHER

2шт.

P738143

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P2842783

ROD

ROD

2шт.

P34607

WASHER

WASHER

2шт.

P36391

RING, SNAP

RING SNAP LOCKING RING

2шт.

P34211

NUT

NUT

2шт.

P35002

WASHER

WASHER

2шт.

P152092

LOCK ASSY

LOCK

2шт.

P32670

SCREW

SCREW/BOLT, M12 x 30

6шт.

P34713

WASHER

WASHER

6шт.

P104158

END FITTING

END FITTING

1шт.

P3512

1шт.

P35004

WASHER

WASHER

1шт.

P3727110

STAND

PROP

1шт.

P852020

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

P852019

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

P152091

SPARE PART

1шт.

P35001

WASHER

WASHER

3шт.

P234513

SAFETY NUT

SAFETY NUT

3шт.

P2020323

CABLE TIE

CABLE STRAP BULLDOG GRIP

2шт.

P26708

SHAFT LOCK

SHAFT LOCK

4шт.

P34603

WASHER

WASHER

4шт.

P3127116

CLEVIS

FORK

1шт.

P2528709

SPARE PART SPACER

1шт.

P27280

SPARE PART PIN

2шт.
