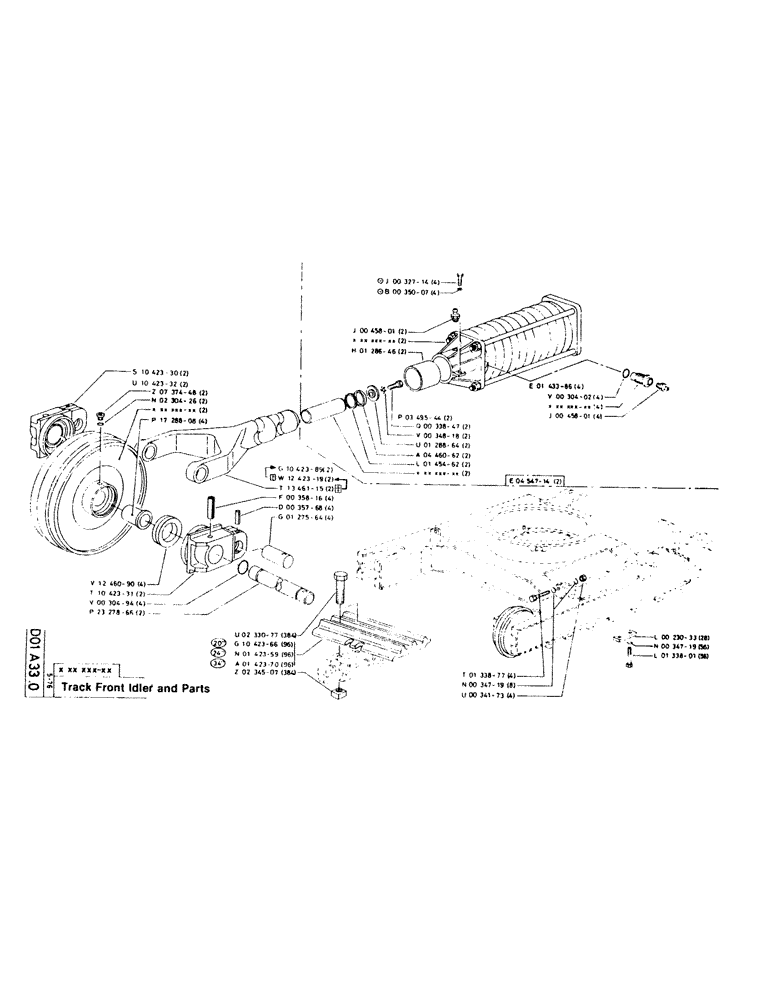

Запчасти Case 220CKS (34) - TRACK FRONT IDLER AND PARTS (04) - UNDERCARRIAGE

P1042330

SLIPPER

2шт.

P1042332

PULLEY

2шт.

P737448

PLUG

PLUG, M12 x 1.5

2шт.

P230426

O-RING

1.5 x 12

2шт.

P1728808

BEARING LINER

4шт.

P1246090

SET OF GASKET

SET OF JOINTS SET OF JOINTS

4шт.

P1042331

SLIPPER

2шт.

P30494

O-RING

SEAL, 3.53 x 85.32-60

4шт.

P2327866

SHAFT

2шт.

P1042389

STIRRUP

2шт.

P1242319

2шт.

P1346115

STIRRUP

2шт.

P35816

SPLIT PIN/SAFETY PIN

4шт.

P35768

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFEY, 10 x 90

4шт.

P127564

PIN

4шт.

P233077

SCREW

384шт.

P1042366

96шт.

P142359

TRACK SHOE

96шт.

P142370

TRACK SHOE

96шт.

P234507

NUT

384шт.

P32714

SCREW

SCREW/BOLT, M18 x 40

4шт.

P35007

SPARE PART WASHER

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

P128646

SPARE PART BRONZE BUSH, 160 x 190 x 160

2шт.

P349544

PISTON ROD

PISTON ROD

2шт.

P33847

SCREW

SCREW/BOLT, M14 x 45

2шт.

P34818

WASHER

WASHER

2шт.

P128864

WASHER

2шт.

P446062

SEAL

SEAL

2шт.

P145462

WASHER

WASHER

2шт.

P143386

VALVE POPPET

VALVE

4шт.

P30402

O-RING

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

4шт.

P454714

SHOCK ABSORBER

SHOCK ABSORBER

2шт.

P133877

SCREW

4шт.

P34719

WASHER, LOCK

WASHER

8шт.

P34173

NUT

NUT

4шт.

P23033

SPARE PART PLATE, M24 x 3

28шт.

P34719

WASHER, LOCK

WASHER

56шт.

P133801

SCREW

SCREW/BOLT, M24 x 130

56шт.
