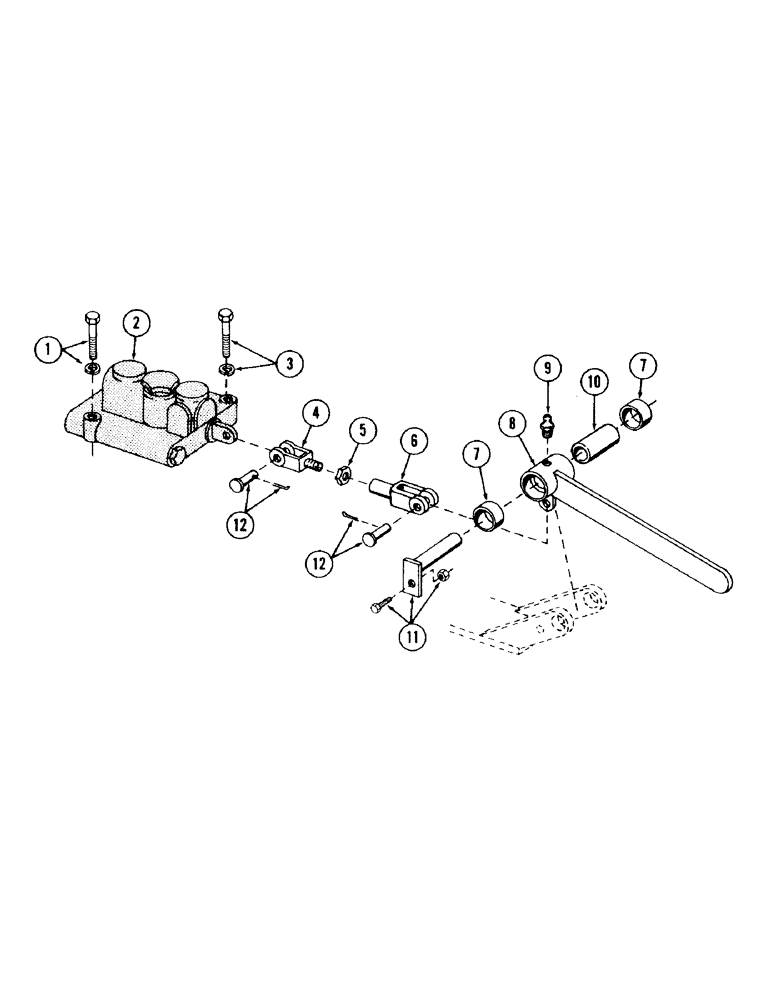

Запчасти Case 120 (099) - COUNTERWEIGHT REMOVAL VALVE LINKAGE AND ATTACHING PARTS USED ON UNITS WITH S/N. 65521 THRU 6287228 (39) - FRAMES AND BALLASTING

1

S2381

BOLT

CPSW - 5/16" NC x 2-1/4" gr 5 - (Valve mounting)

1шт.

S4396

WASHER, LOCK

- 5/16"

1шт.

2

REF

INSTRUCTION

VALVE, 1-spool counterweight removal control - (For breakdown, see Figure 243)

1шт.

3

S2382

BOLT

CPSW - 5/16" NC x 2-1/2" gr 5 - (Valve mounting)

2шт.

S4396

WASHER, LOCK

- 5/16"

2шт.

4

S97801

YOKE

1шт.

5

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

6

S48131

CLEVIS

YOKE

1шт.

7

S22857

BEARING, ROLLER

BEARING

2шт.

8

S223582

HANDLE ASSEMBLY

1шт.

9

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

10

S40815

BEARING, NEEDLE,0.375" ID x 0.5630" OD x 0.312"

BEARING

1шт.

11

S224710

SHAFT ASSY.

SHAFT ASSEMBLY

1шт.

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

12

S10738

PIN

clevis - 5/16" x 1.125" grip length

2шт.

S4611

SPLIT PIN

PIN, cotter - 3/32" x 3/4" long

2шт.
