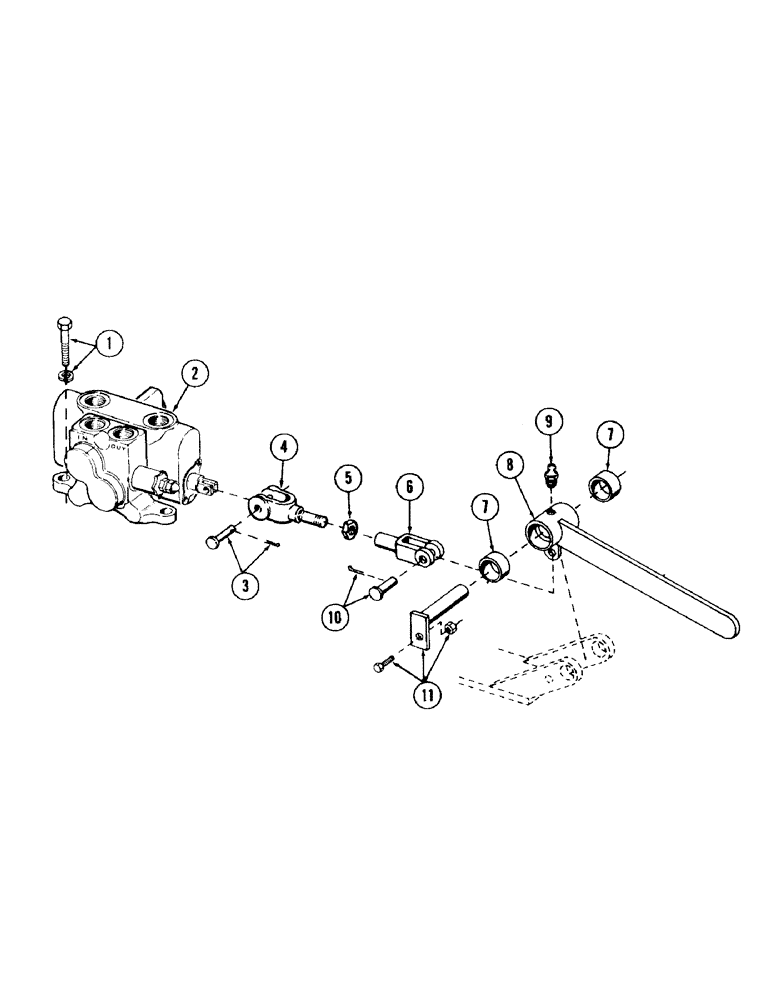

Запчасти Case 120 (099[1]) - USED ON UNITS WITH SERIAL NUMBER 6287229 AND AFTER (39) - FRAMES AND BALLASTING

1

S2425

CPSW - 3/8" NC x 1-3/8" gr 5 - (Valve mounting)

4шт.

S4397

WASHER

lock - 3/8"

4шт.

2

REF

INSTRUCTION

VALVE, counterweight removal control - (For breakdown, see Figure 245)

1шт.

3

S10708

PIN, clevis - 3/16" x 1.601" grip length

1шт.

S4609

PIN, SPLIT (COTTER)

PIN, cotter - 5/64" x 1" long

1шт.

4

S108761

YOKE

1шт.

5

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

6

S48131

CLEVIS

YOKE

1шт.

7

S22857

BEARING, ROLLER

BEARING

2шт.

8

S232086

HANDLED SHAFT

HANDLE ASSEMBLY

1шт.

9

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

10

S10738

PIN

clevis - 5/16" x 1.125" grip length

1шт.

S4611

SPLIT PIN

PIN, cotter - 3/32" x 3/4" long

1шт.

11

S224710

SHAFT ASSY.

SHAFT ASSEMBLY

1шт.

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.
