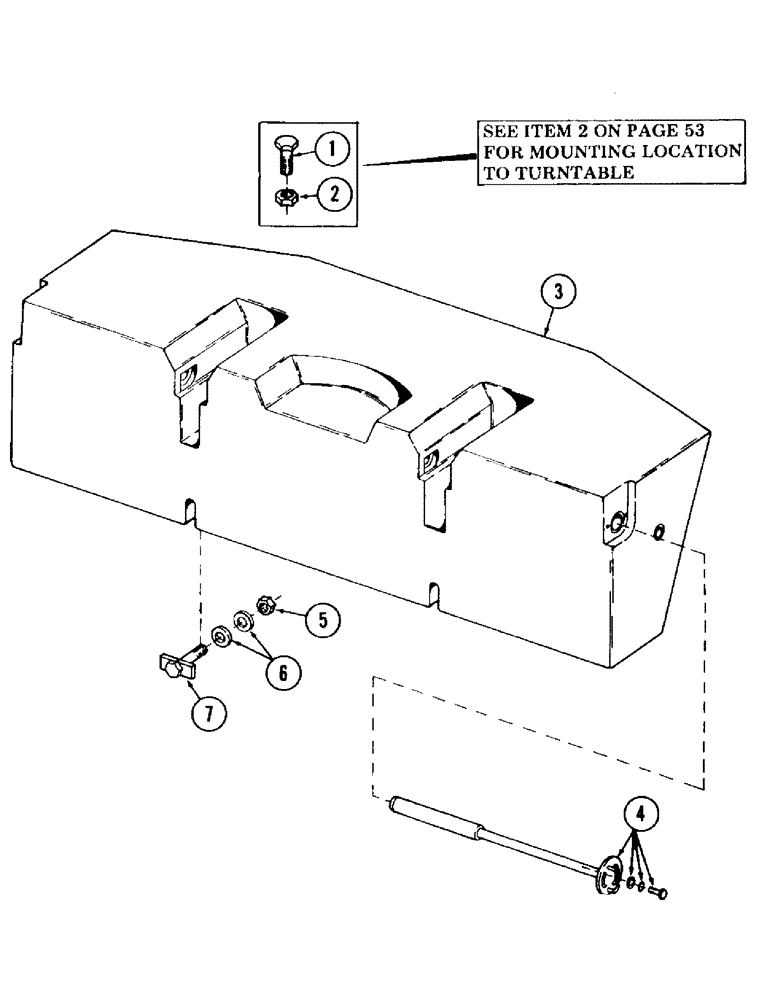

Запчасти Case 120 (097) - COUNTERWEIGHT AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

S85929

CPSW - 1-1/2" NC x 7" gr 5

4шт.

2

S4273

NUT

- 1-1/2" NC

4шт.

3

S953556

WEIGHT

COUNTERWEIGHT

1шт.

4

S604948

PIN - (Mounts, Serial Range: counterweight-turntable)

2шт.

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

2шт.

S4399

WASHER

lock - 1/2"

2шт.

S95569

WASHER

flat - 1/2"

2шт.

5

S16664

NUT - 1-1/2" NC

2шт.

6

S7424

WASHER

flat - 1-9/16"

4шт.

7

S223127

BOLT, tee - (Mounts, Serial Range: counterweight-turntable)

2шт.
