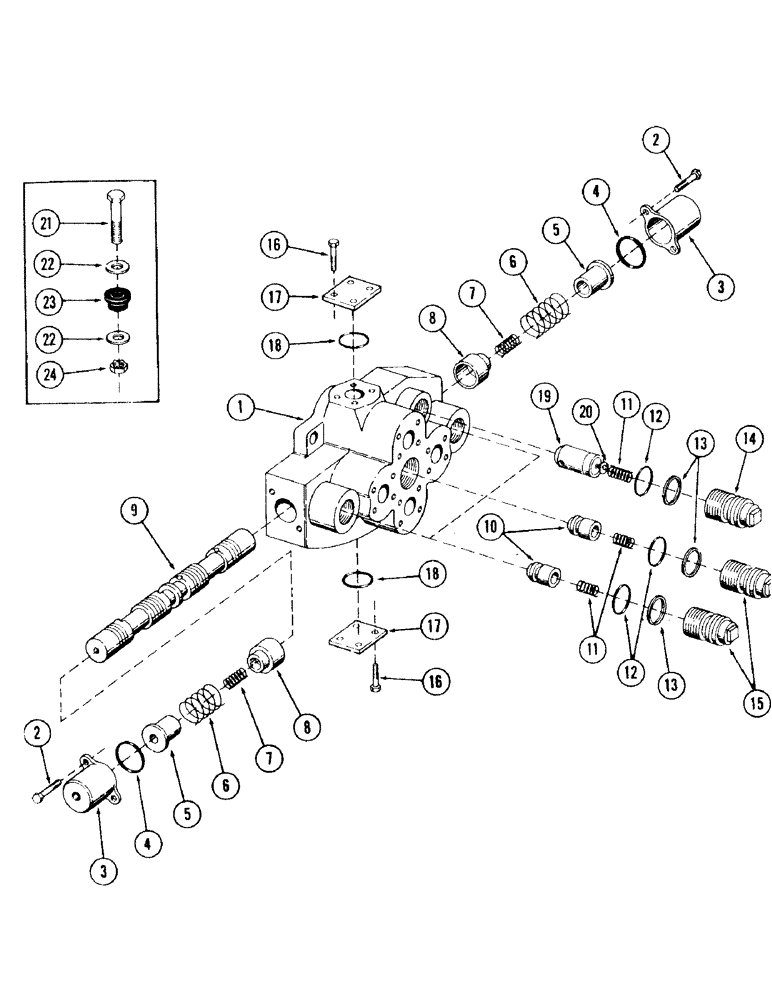

Запчасти Case 120 (273) - FAST HOIST MAIN CONTROL VALVE (35) - HYDRAULIC SYSTEMS

S611909

VALVE, fast hoist main control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

4шт.

3

S71129

CAP, end

2шт.

4

S70951

"O" RING

2шт.

5

S231427

GUIDE, spring

2шт.

6

S110036

SPRING

outer

2шт.

7

S110037

SPRING

inner - (See note below)

2шт.

8

S71014

GUIDE, spring

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL "D"

1шт.

10

S71378

VALVE POPPET

POPPET, load check

3шт.

11

W15348

SPRING, load check

4шт.

12

S71223

"O" RING

4шт.

13

S71347

O-RING

RING, plug backup

4шт.

14

W15349

PLUG, relief valve

1шт.

15

S71380

PLUG, load check

3шт.

16

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

8шт.

17

W15350

PLATE, pressure cover

2шт.

18

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING, cover

2шт.

19

S106772

VALVE, control - (3400 PSI)

1шт.

20

S71404

COVER

1шт.

21

S2473

BOLT

CPSW - 1/2" NC x 3" gr 5 - (Mounts valve)

3шт.

22

S111135

WASHER

hardened - 5/8"

3шт.

23

S110886

MOUNTING PARTS

MOUNT - (Supersedes S49527 and S105492)

3шт.

24

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

3шт.
