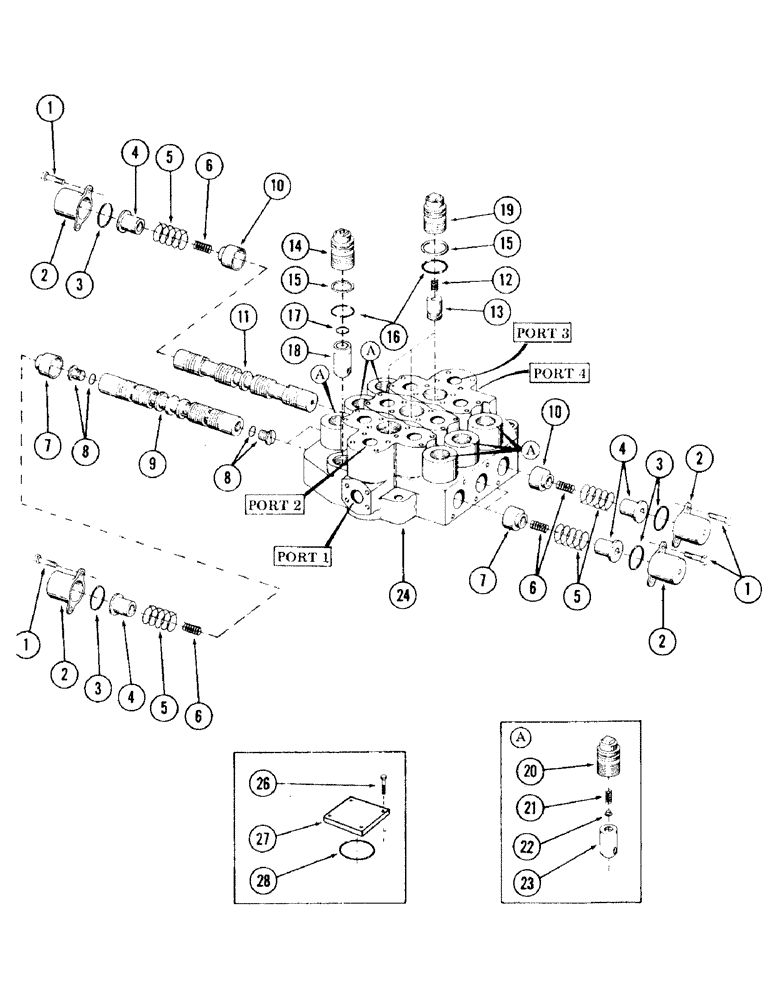

Запчасти Case 120 (271) - MAIN CONTROL VALVES (35) - HYDRAULIC SYSTEMS

S611908

VALVE, three spool main control

2шт.

1

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

12шт.

2

S71129

CAP, end

6шт.

3

S70951

"O" RING

6шт.

4

S231427

GUIDE, spring

6шт.

5

S110036

SPRING

outer

6шт.

6

S110037

SPRING

inner - (See note below)

6шт.

7

S70952

GUIDE, spring

4шт.

8

S71016

PLUG AND PACKING

4шт.

9

NSS

NOT SOLD SEPARAT

SPOOL

2шт.

10

S71014

GUIDE, spring

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL "D"

1шт.

12

W15348

SPRING, load check

9шт.

13

S71378

VALVE POPPET

POPPET, load check

3шт.

14

S71868

PLUG

1шт.

15

S71347

O-RING

RING, plug back-up

10шт.

16

S71223

"O" RING, plug

10шт.

17

S62954

"O" RING

1шт.

18

S229901

SUB DECK CONTROL VALVE ASSEMBLY, set at 3000 PSI - (Supersedes S500513)

1шт.

19

S71380

PLUG, load check

3шт.

20

W15349

CAP

6шт.

21

W15348

SPRING

9шт.

22

S71404

COVER, pin

6шт.

23

S106772

SUB DECK CYLINDER PORT RELIEF ASSEMBLY, set at 3400 PSI - (Supersedes S71438)

6шт.

24

NSS

NOT SOLD SEPARAT

BODY

1шт.

25

S74401

GASKET

2шт.

26

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

27

W15350

PLATE, cover

1шт.

28

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING

1шт.
