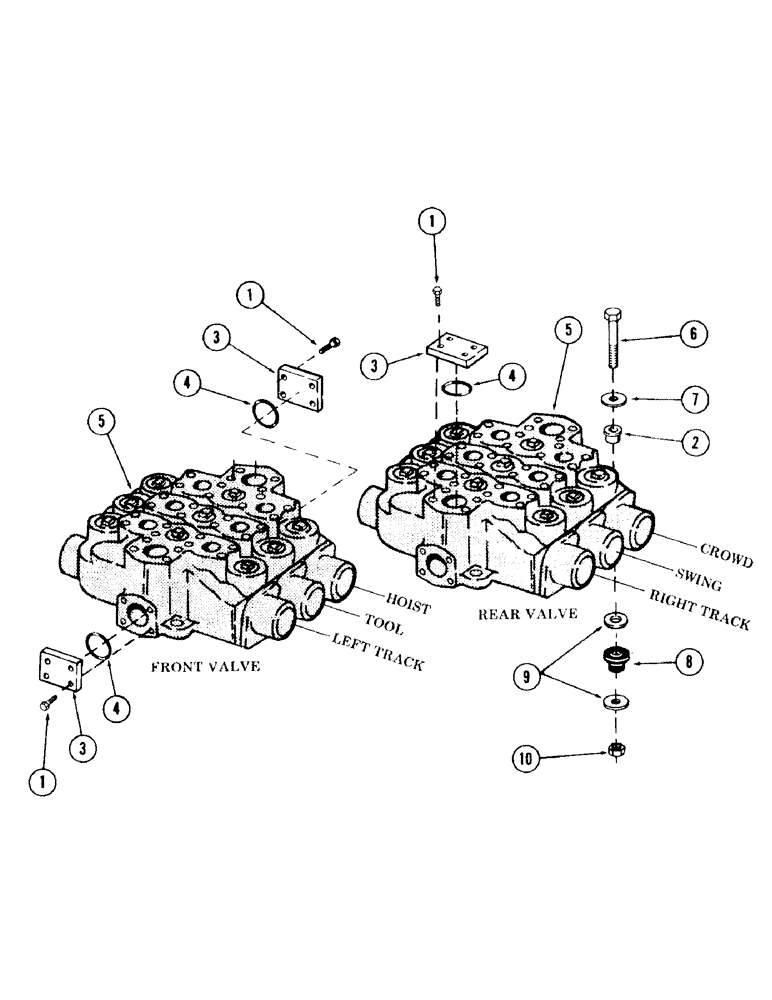

Запчасти Case 120 (269) - MAIN CONTROL VALVE ARRANGEMENT (35) - HYDRAULIC SYSTEMS

1

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

12шт.

2

S104793

SPACER

6шт.

3

W15350

PLATE, cover

3шт.

4

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING

3шт.

5

REF

INSTRUCTION

VALVE, 3-spool main control - (For breakdown, see Figure 271)

2шт.

6

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

CPSW, mounts valves

6шт.

7

S95569

WASHER

hardened flat - 5/8"

6шт.

8

S110886

MOUNTING PARTS

MOUNT

6шт.

9

S111135

WASHER

hardened flat - 5/8"

12шт.

10

S17169

INSTRUCTION

NUT, locking - 1/2" NC

6шт.
